Conveyor Components DBD-100 Damaged Belt Detector
Neu
Auf Lager2 EinheitenVersandbereit
544,44$
DAMAGED BELT DETECTOR
Conveyor Components DBD-100 damaged belt detector with dual SPDT switches, 20 A rating, dry contacts, 1″ NPT connections, 3 m cable, and NEMA Type 4/4X enclosure.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

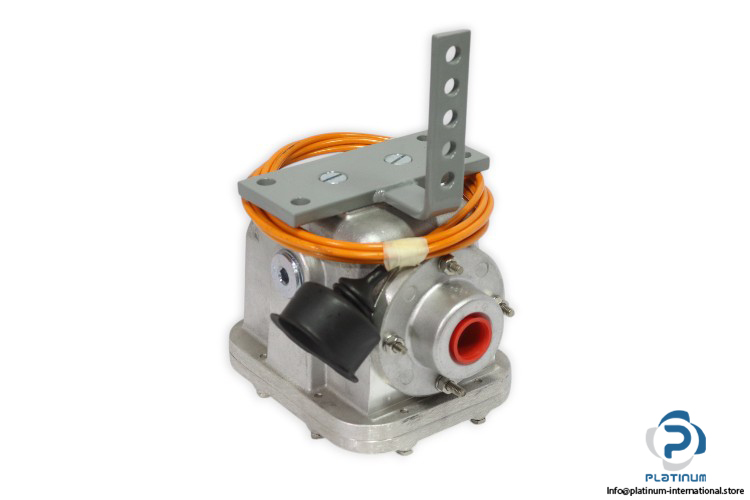

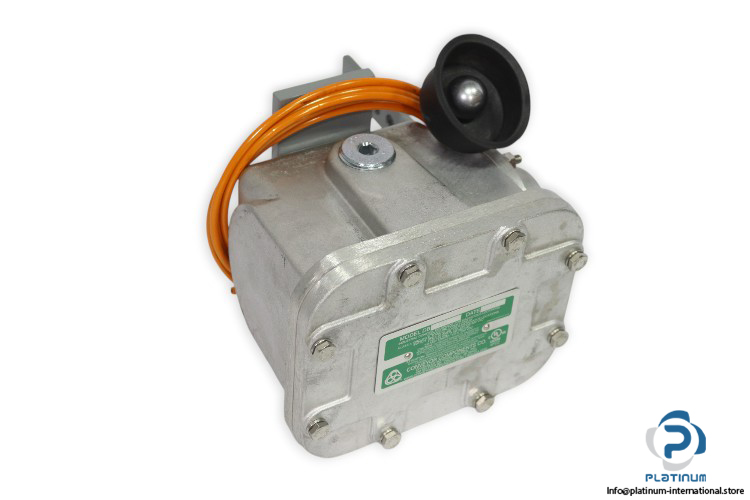

Conveyor Components DBD-100 Damaged Belt Detector
The Conveyor Components DBD-100 is a rugged damaged belt detector designed for reliable conveyor safety monitoring. Built with high switch ratings, durable enclosure, and wide temperature tolerance, it ensures dependable protection in industrial bulk material handling systems.
Manufacturer: Conveyor Components
Type: Damaged Belt Detector
Model: DBD-100
Switch Rating:
20 Amps, 125/250/480 VAC
1 HP at 125 V AC
2 HP at 250 V AC
1/2 Amp at 125 V DC
1/4 Amp at 250 V DC
| Switch Type | 2 x SPDT (Single Pole Double Throw) |
| Contact Type | Dry contact |
| Electrical Connection | 1" NPT x 2 |
| Cable Length | 10 in / 3 m |
| Actuation Force | 18 N |
| Enclosure | Types 4 and 4X |
| Temperature Rating | -40 to 40 °C |
