Festo 35530 Vacuum Generator
Gebraucht
Auf Lager1 EinheitVersandbereit
VACUUM GENERATOR
FESTO VAD-MYB-I-1/8 vacuum generator with MEH-2-24V DC solenoid coil offers efficient vacuum control with a compact T-shape design and 90% max vacuum.AirBasecoilCompactdcFestoGeneratorIndustrialLavalMEH-2-24VNozzlePneumaticsolenoidsubSystemvacuumVAD-MYB-I-1/8Valve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

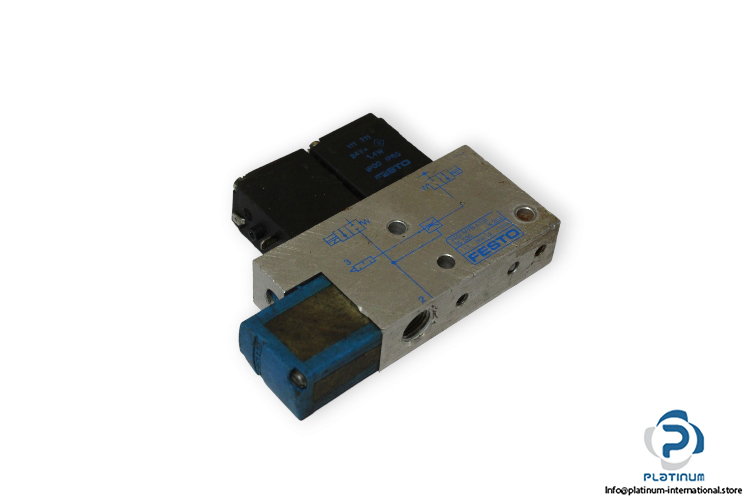

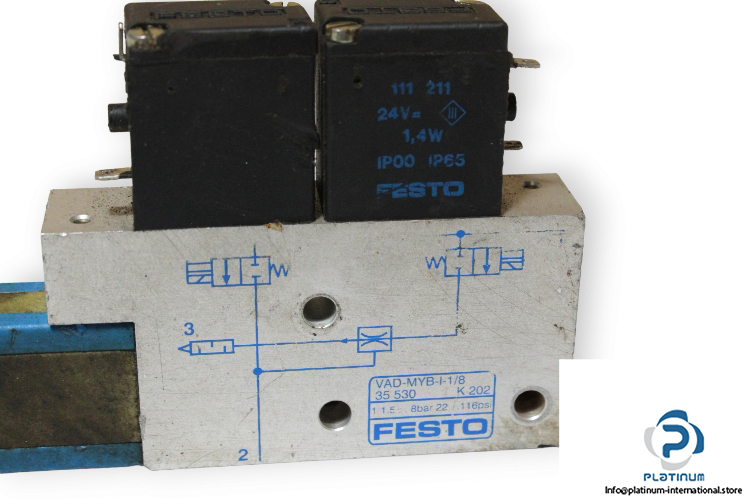

FESTO VAD-MYB-I-1/8 VACUUM GENERATOR WITH SOLENOID COIL
The FESTO VAD-MYB-I-1/8 is a compact and high-performance vacuum generator designed for pneumatic systems that require fast and reliable vacuum generation. With a durable aluminum body and Laval nozzle design, it supports effective airflow and precise control in industrial automation. It includes the FESTO MEH-2-24V DC solenoid coil for enhanced actuation reliability.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VAD-MYB-I-1/8
Part No.: 35530
Solenoid Coil Technical Information
| Fluid | Air |
| Design | T-shape |
| Laval Nozzle Nominal Size | 0.7 mm |
| Operating Pressure | 1.5 to 8 bar |
| Vacuum Max. | 90% |
| Pneumatic Connection | M5 / G1/8 |
| Material | Aluminium |
| Ambient Temperature | 0 to 50 °C |

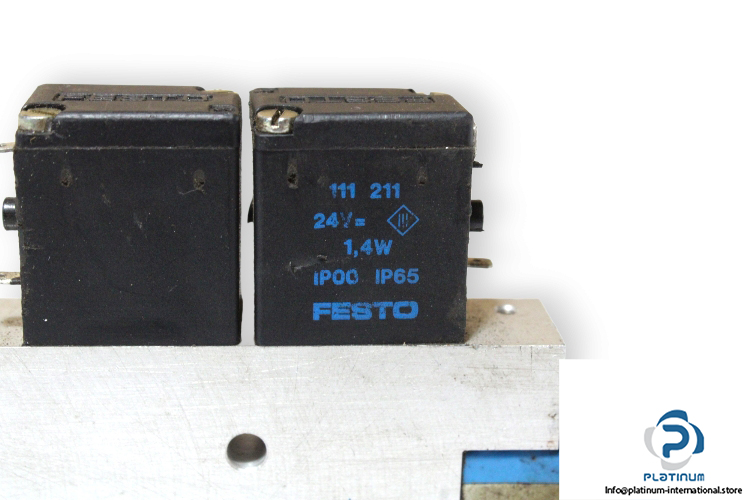

| Attachment | FESTO MEH-2-24V DC SOLENOID COIL |
| Part No. | 111212 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.4 W |
| Protection Class | IP00 / IP65 |
