Festo 187326 Proportional-Pressure Regulator
Gebraucht
Auf Lager1 EinheitVersandbereit
PROPORTIONALER DRUCKREGELER FESTO MPPES-3-1/2-10-010 Regler mit 24 V DC Betätigung und präziser 0–10 bar Regelung, geeignet für leistungsstarke pneumatische Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

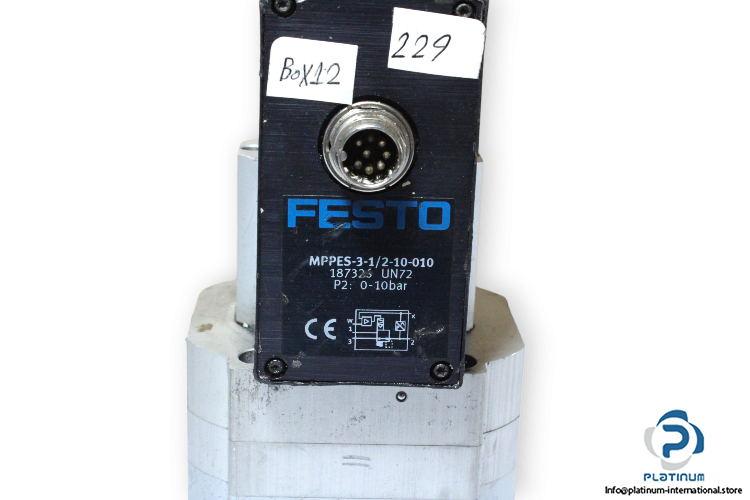

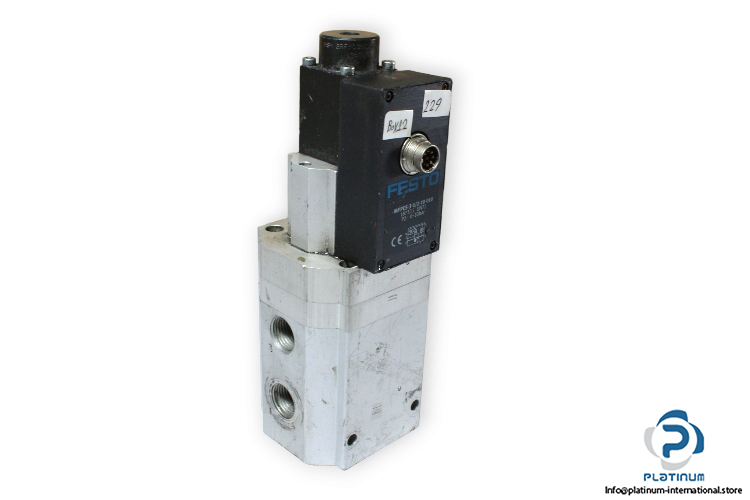

FESTO MPPES-3-1/2-10-010 PROPORTIONAL PRESSURE REGULATOR
The FESTO MPPES-3-1/2-10-010 is a high-precision proportional pressure regulator engineered for demanding industrial automation tasks. With electrically actuated control and pilot-operated piston design, it offers accurate and reliable pressure regulation in pneumatic systems.
Manufacturer: FESTO
Type: Proportional Pressure Regulator
Model: MPPES-3-1/2-10-010
Part No.: 187326
| Nominal Width Pressurization | 11 mm |
| Exhaust Nominal Width | 12 mm |
| Actuation Type | Electrically |
| Sealing Principle | Soft |
| Structural Design | Pilot-Controlled Piston Control Valve |
| Operating Pressure | 12 bar |
| Pressure Regulation Range | 0 / 10 bar |
| Inlet Pressure 1 | 11 / 12 bar |
| Max. Pressure Hysteresis | 0.05 bar |
| Switching Time Off | 450 ms |
| On Switching Time | 230 ms |
| Nominal Operating Voltage | 24 V DC |
| Connection Size | G1/2 |
| Protection Class | IP65 |
| Ambient Temperature | 0 / 50 °C |
