Festo 2341 Hand Slide Valve
Neu
Auf Anfrage verfügbar
HAND SLIDE VALVE
FESTO W-3-3/8 manual hand slide valve with brass body, 3/2 bistable function, and high flow rate of 1,400 l/min for pneumatic applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

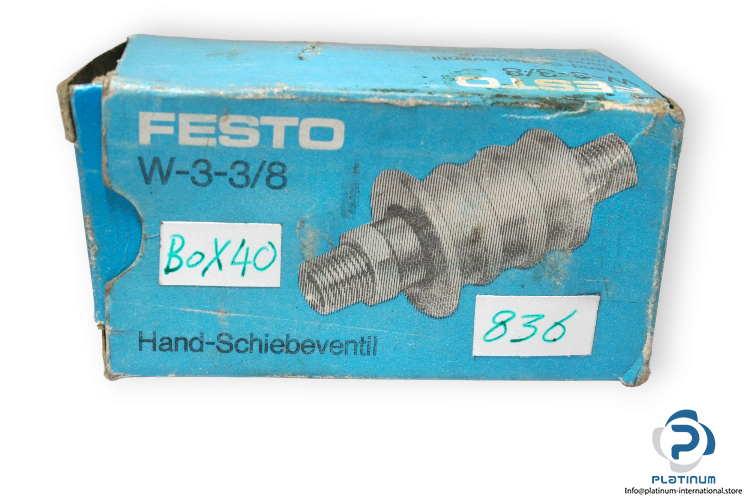

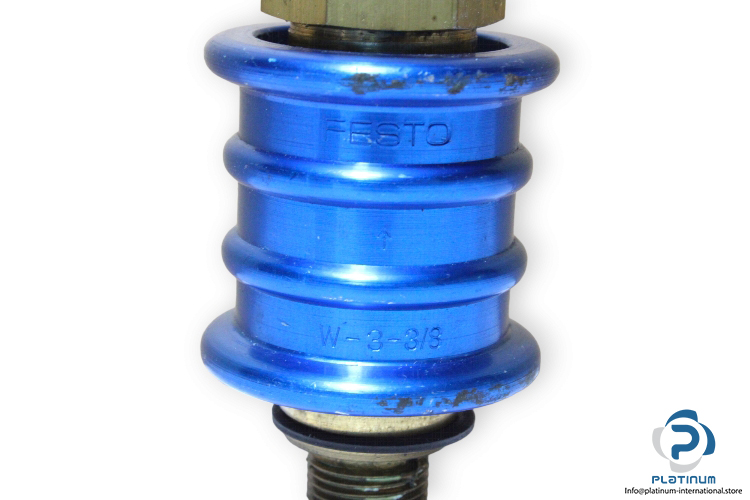

FESTO W-3-3/8 HAND SLIDE VALVE
The FESTO W338 is a high-performance hand slide valve engineered for manual pneumatic control. With a durable brass construction and sleeve slide design, it provides reliable bistable 3/2 functionality and excellent flow capacity in air systems.
Manufacturer: FESTO
Type: Hand Slide Valve
Model: W-3-3/8
Part No.: 2341
| Fluid | Air |
| Design | Sleeve slide |
| Function | 3/2 bistable |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 ... 10 bar |
| Nominal Flow Rate | 1,400 l/min |
| Actuating Force | 20 N |
| Pneumatic Connection | G3/8 |
| Material | Brass |
| Ambient Temperature | -10 / 60 °C |
