Industrial Fans Axial Fans & Fan Filter Units

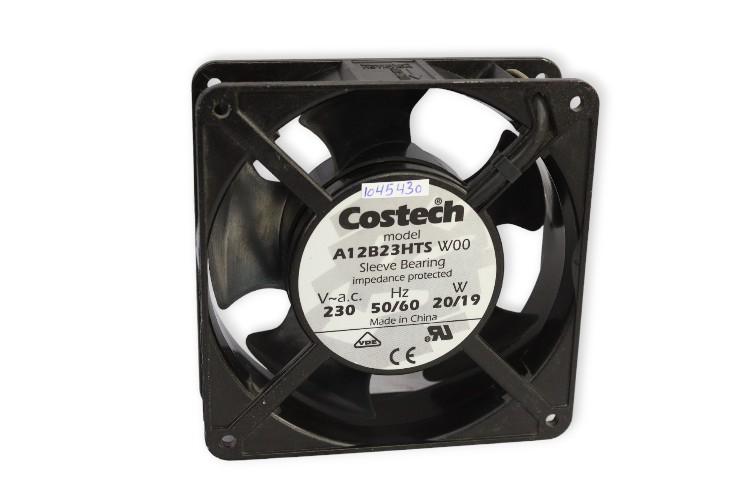

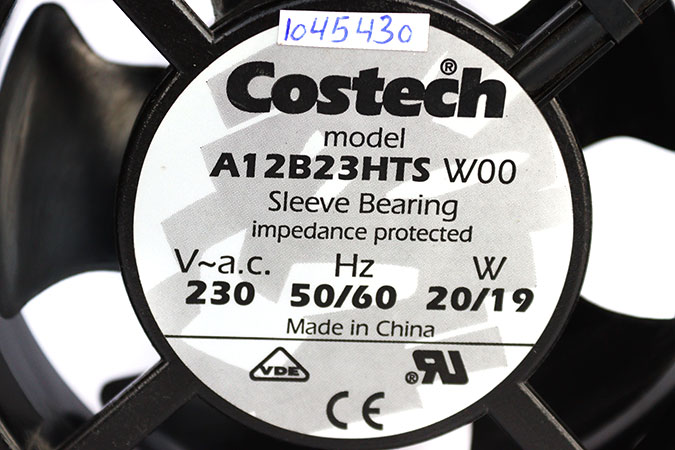

Costech A12B23HTS Axial FAN

Name: COSTECH A12B23HTS AXIAL FAN
SKU: 1045430
Availability: LimitedAvailability

Gebraucht

Auf Lager1 EinheitVersandbereit

Typ: Axiallüfter

Hersteller

COSTECH

SKU

1045430

Kategorie

Axial Fans & Fan Filter Units

Zustand

Gebraucht

Axial Ebmpapst Fans Industrial

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: Costech
Type: Axial Fan
Model: A12B23HTS
Part. No: A12B23HTS-W00

Frame Shape: Square Frame
No. of Blades: 5

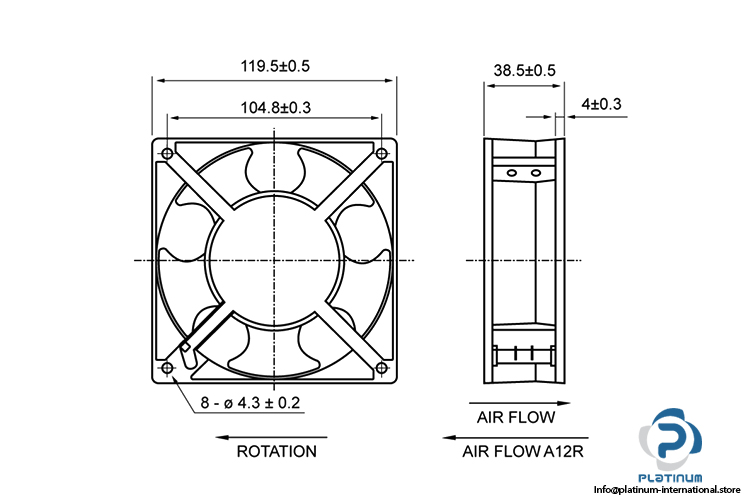

Dimensions (mm): 119x119x38
Direction: Push
Bearing: Sleeve Bearing
Voltages (V AC): 230
Power Rating (W): 19-20
Speed (rpm): 2550-2900
Flow Rate (m3/h): 138-178
Flow Rate (CFM): 81.65-105.32
Current (mA): 110-130
Frequency (Hz): 50/60
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Metal

Spezifikation	Wert
Weight	0,56 kg
Condition	Used
No. of Wires	2
Type of Product	Axial Fan
Frame Shape	Square Frame
No. of Blades	5
Inverter	Without Inverter
Blade Material	Plastic
Fan Housing Material	Metal
Dimensions [mm]	119x119x38
Direction	Push
Voltage Type	AC
Frequency [Hz]	50/60
Voltage [V]	230
Bearing	Sleeve Bearing
Current [A]	0.11-0.13
Shelf No.	240428
Manufacturer	COSTECH
Speed [RPM]	2550-2900
Power [kW]	0.019-0.02
Flow Rate [m3/h]	138-178
Flow Rate CFM	81.65-105.32
Part No.	A12B23HTS-W00
