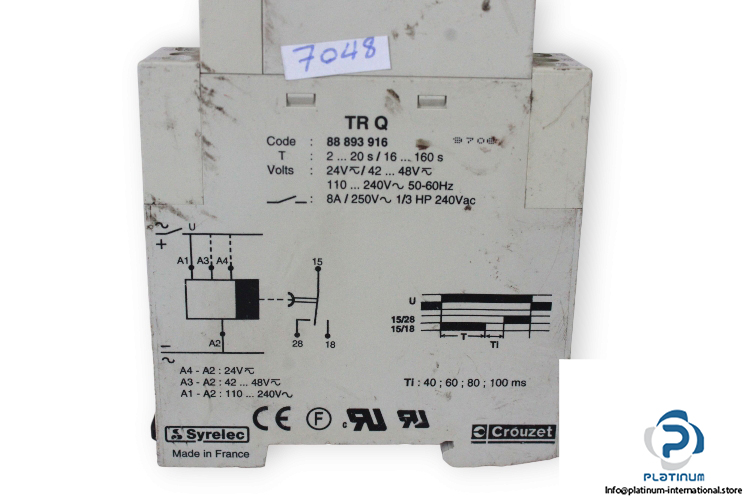

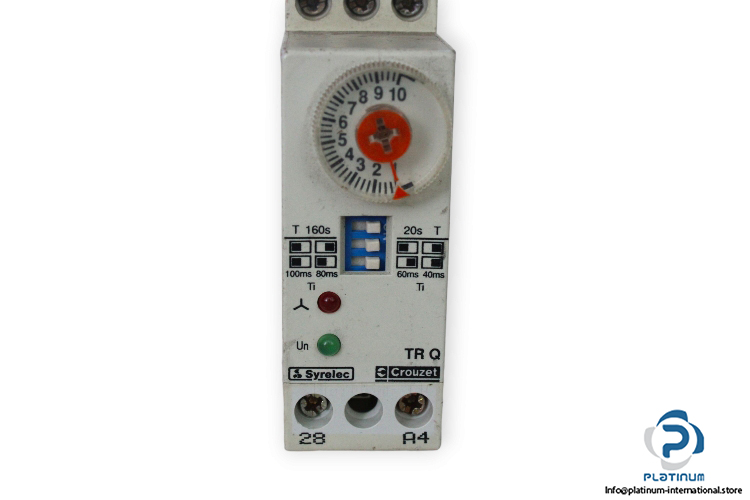

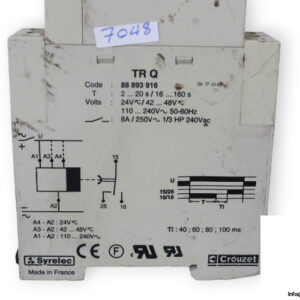

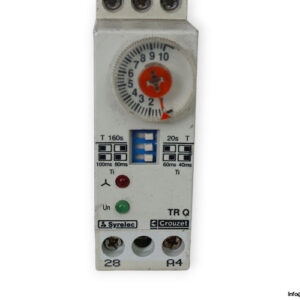

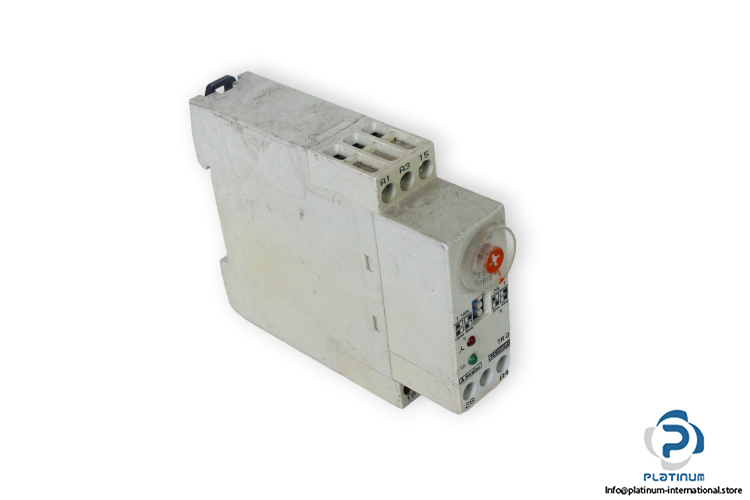

Crouzet 88 893 916 Timer Relay
Manufacture: Crouzet
Type: Timer Relay
Model: TR Q
Part No.: 88 893 916
Supply voltage: 24 V AC/DC, 42 … 48 V AC/DC,110 … 240 V AC
Frequency: 50 … 60 Hz
Function: Mono-function
Output: 1 Change over contact (CO)
Switching capacity: 8 A/250 V AC,1/3 HP
Time range: 2 … 20s/16 … 160s
Operating Temperature: -20 … +60 °C
Dimensions: 78.5 x 22.5 x 103.5 mm
