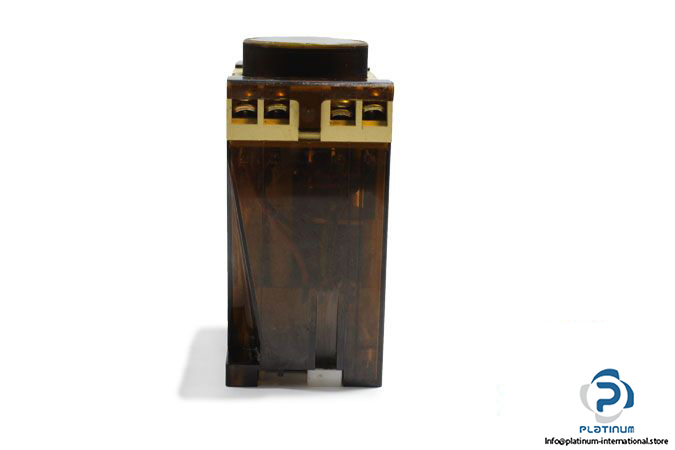

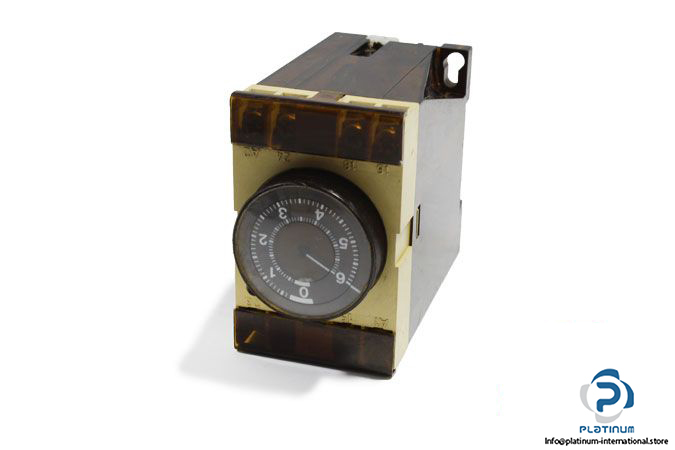

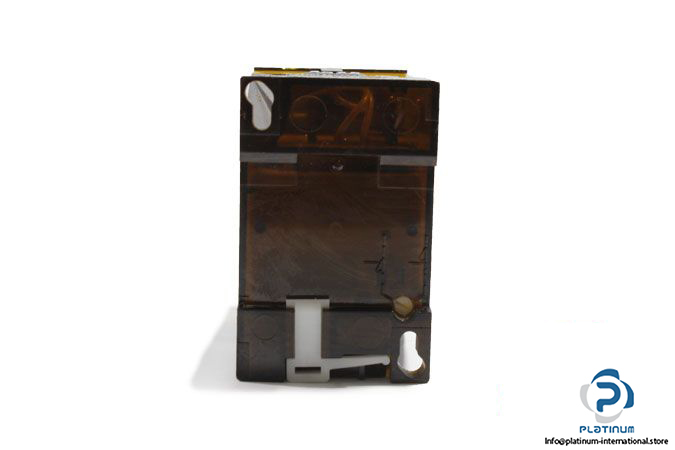

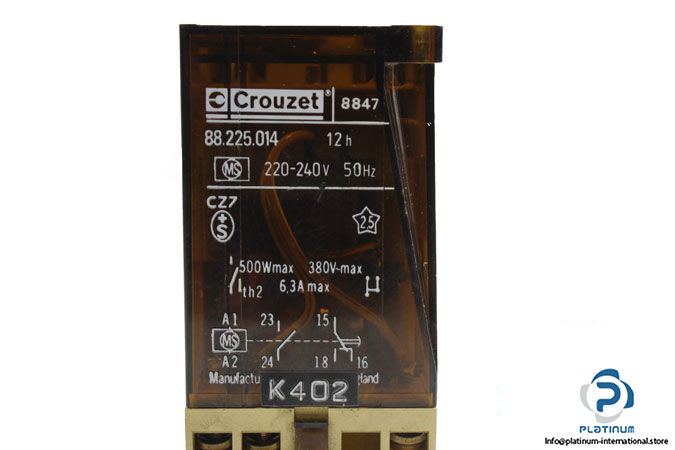

Crouzet 88225014 Time Delay Relay

Manufacturer: CROUZET

Type: Time Delay Relay

Model: 88225014



Supply Voltage: 220 … 240 VAC

Frequency: 50 Hz

Reset Time: 0.20 s

Timed Two-Pole: 1

Instantaneous Single Pole: 1

Thermal Rating: 6.3 A

Mounting By Screw: 2 x M5

Relay Outputs: 1 timed changeover 5 A1 instantaneous

Protection Housing / Terminal: IP 40 / IP 10

Operating Temperature: -10 … +55 °C

Dimensions: 54 X 91 X 70 mm

Weight: 0.18 Kg
