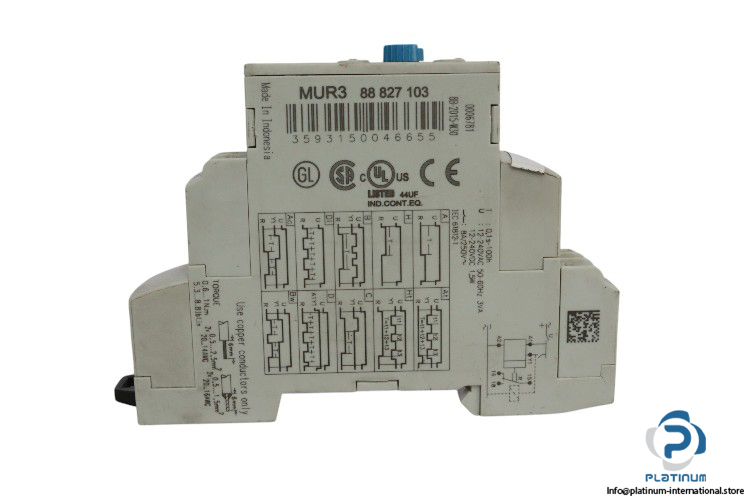

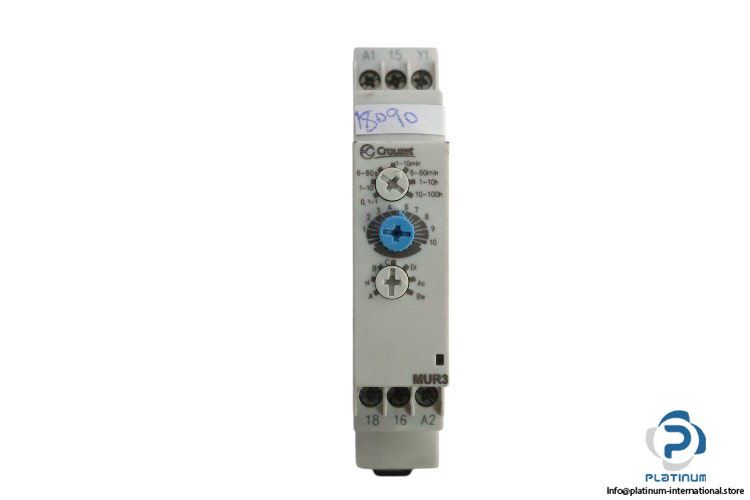

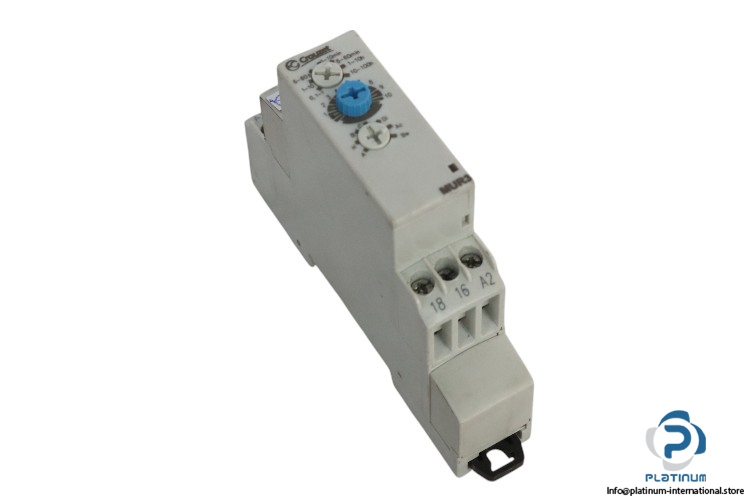

Crouzet MUR3 88 827 103 Multifunction Analogue Timer
Crouzet MUR388827103 Multifunktionaler analoger Timer Hochleistungs-Analogtimer mit 7 Zeitbereichen (0,1s bis 100h), 12-240V AC/DC Betrieb und IP20 Schutz. Ideal für industrielle Automatisierung und Maschinensteuerung.
Crouzet MUR388827103 Multifunction Analogue Timer
The Crouzet MUR388827103 is a high-precision multifunction analogue timer designed for versatile industrial applications. With a wide timing range of 0.1 seconds to 100 hours, it supports multiple timing functions for reliable and accurate control of automation processes.
Key Details:
Manufacturer: Crouzet
Type: Multifunction Analogue Timer
Model: MUR388827103
Designed for precise time control in industrial automation, the Crouzet MUR388827103 is ideal for use in machine control, lighting, and motor control applications. Its wide voltage range and compact design make it suitable for various electrical systems.
| Time Range | 0.1s to 100h |
| Number of Timing Ranges | 7 Ranges |
| Voltage | 12 to 240 V AC/DC |
| Frequency | 50 to 60 Hz |
| Power Consumption | 1.5 W, 3 VA |
| Contact Type | 1 Changeover Relay, 250 V AC/8 A |
| Connections | Screw Terminals |
| Operating Temperature Range | -20 to 60°C |
| Degree of Protection (Terminal Block) | IP20 |
| Dimensions | 17.5 x 90 x 65.5 mm |
