Danfoss 068U1979 Thermostatic Expansion Valve
Neu
Auf Lager1 EinheitVersandbereit
Danfoss Thermostat-Expansionsventil 068U1979 mit Kältemittel R134A, 2,1 kW Düsenkapazität und einem Temperaturbereich von -25 bis 15 °C. Entwickelt für zuverlässige Durchflussregelung in Kühlsystemen.
Bi-metalconnectionDanfossDirectionexpansionflowInletOutletSingle-flowSizeSteeltainlessThermostaticValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

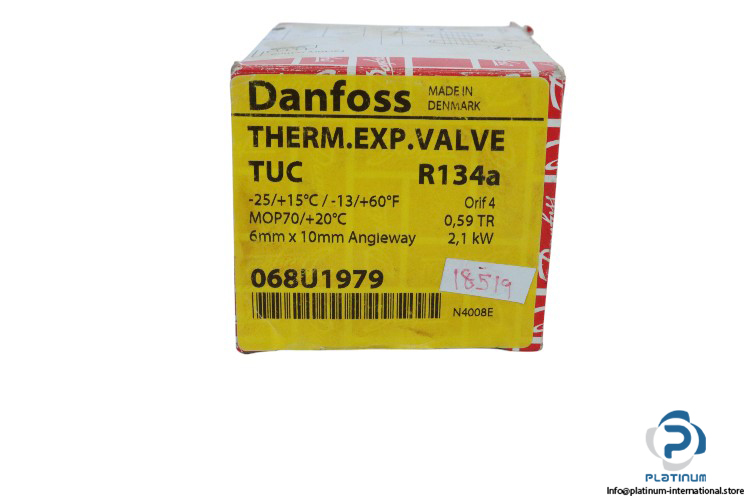

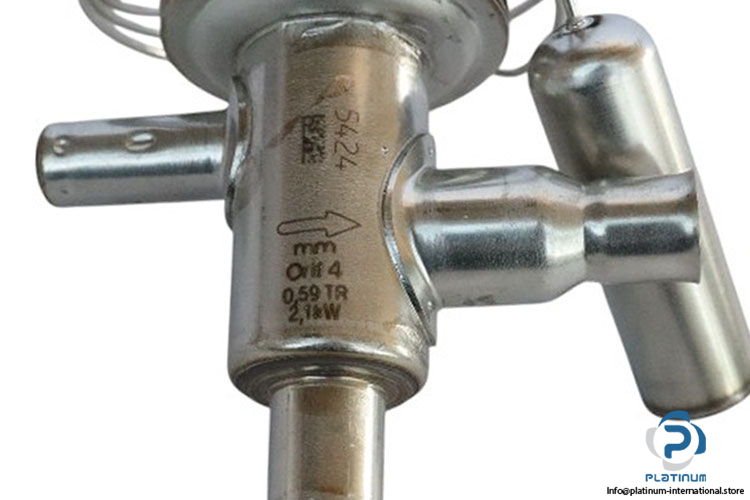

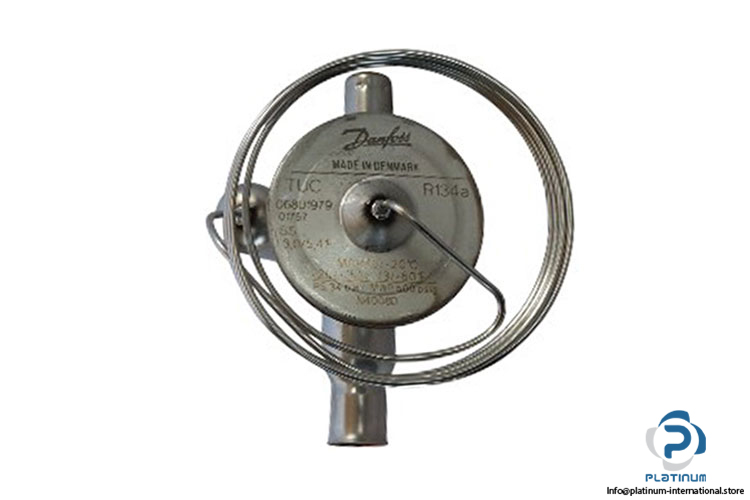

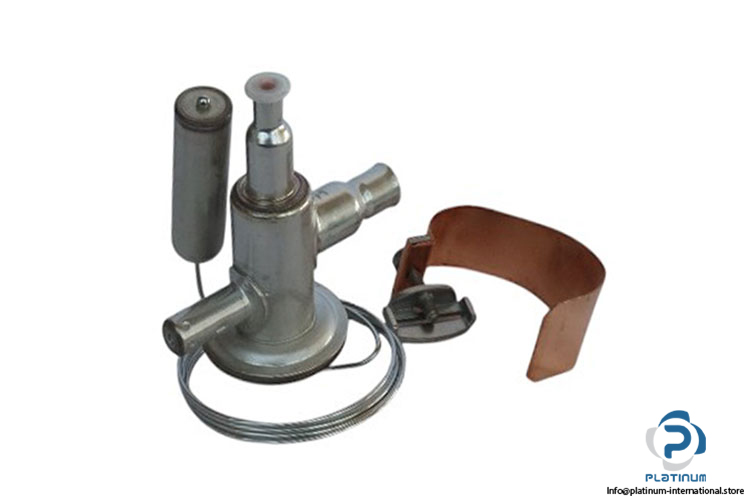

Danfoss Thermostatic Expansion Valve 068U1979
Danfoss Thermostatic Expansion Valve 068U1979 is designed to regulate refrigerant flow in refrigeration systems. With high-performance specifications, it ensures efficient operation in various industrial applications using R134A refrigerant. Below are the key technical specifications:
- Manufacturer: Danfoss
- Type: Thermostatic Expansion Valve
- Model: 068U1979
Technical Data:
- Refrigerants: R134A
- Orifice Capacities: 2.1 kW
- Orifice Size: 4
- Max. Working Pressure: 34 bar
- Inlet, Outlet Connection Type: Solder, ODF
- Orifice Capacities: 0.59 TR
- Capillary Tube Length: 800 mm
- Connection Material: Bi-metal: Steel/copper
- Body Material: Stainless Steel
- Flow Direction: Single-flow
- Inlet Size: 6 mm
- Outlet Size: 10 mm
- Temperature Range: -25 to 15°C
