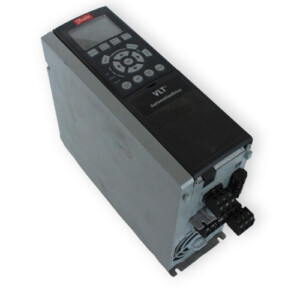

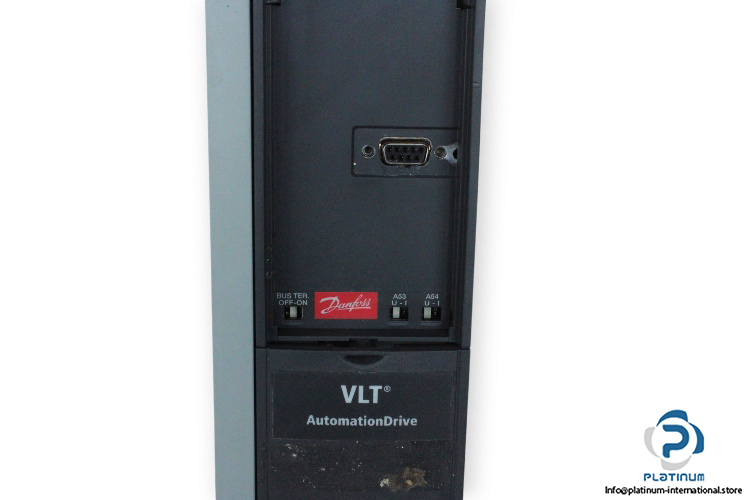

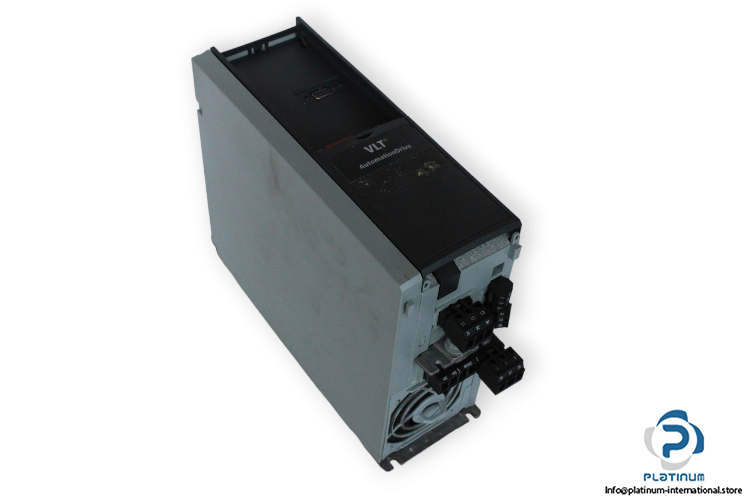

Danfoss 131B0029 Frequency Converter
Gebraucht
Auf Lager3 EinheitenVersandbereit
Manufacture:
Danfoss
Type:
Frequency converter
Model:
FC-302P1K1T5E20H1XXXXXXSXXXXAXBXCXXXXDX
Part No.:
131B0029
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

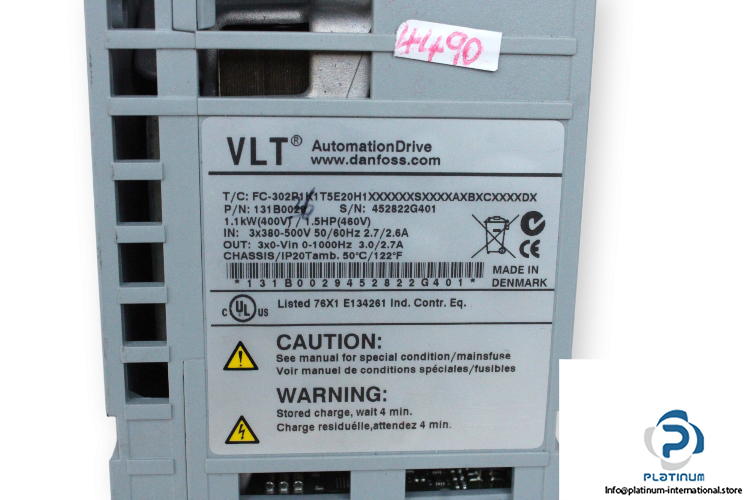

Manufacture: Danfoss
Type: Frequency converter
Model: FC-302P1K1T5E20H1XXXXXXSXXXXAXBXCXXXXDX
Part No.: 131B0029
Input:
Voltage: 3 phase/380 … 500 V AC
Rated Current: 2.7/2.6 A
Frequency: 50/60 Hz
Output:
Voltage: 3 phase/0 … 380 … 500 V AC
Rated Current: 3/2.7 A
Frequency: 0 … 1000 Hz
Power: 1.1 kW / 1.5 HP
Protection Class: IP20
Frame Size: A2
Ambient temperature: 0 … 50°C
Dimensions: 268 x 205 x 90 mm
