Danfoss MBS 3000 Pressure Transmitter 16 BAR
Gebraucht
Auf Lager1 EinheitVersandbereit
Drucktransmitter DANFOSS MBS3000 misst bis zu 16 bar mit 4 bis 20 mA Ausgang und 10 bis 30 V DC Versorgung, ausgestattet mit einem Gehäuse aus Edelstahl AISI 316L und Widerstand gegen Kavitation und Druckspitzen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

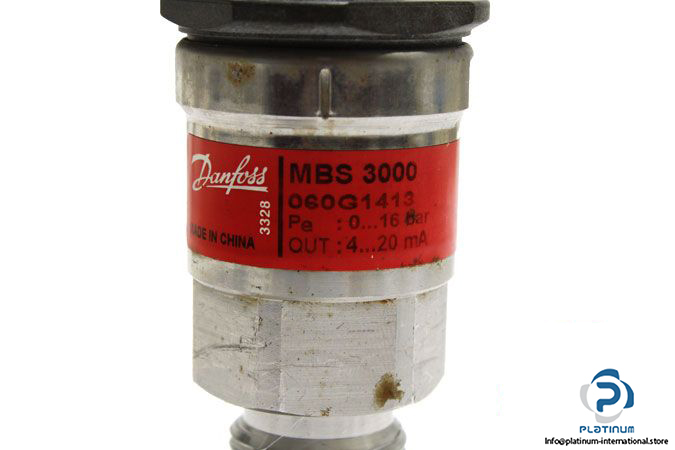

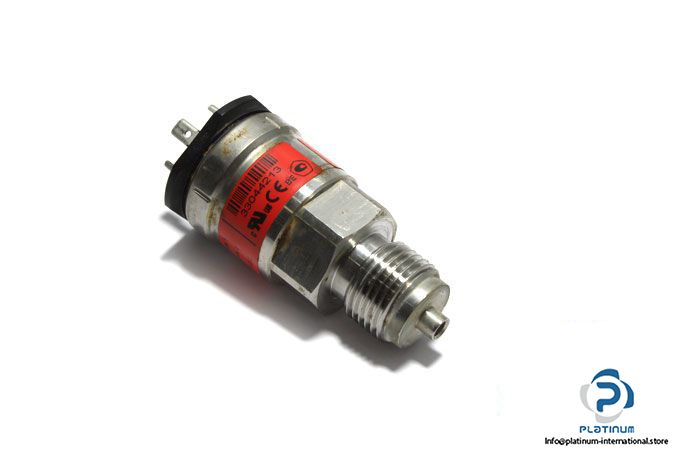

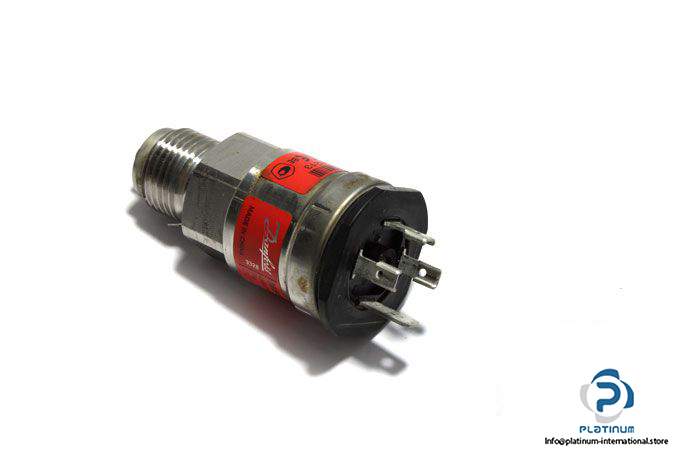

DANFOSS MBS3000 Pressure Transmitter
The DANFOSS MBS3000 Pressure Transmitter provides reliable pressure measurement for hydraulic and severe industrial applications. Designed with an acid-resistant stainless steel enclosure, it ensures durability, resistance to cavitation, and stability under pressure peaks.
Manufacturer: DANFOSS
Type: Pressure Transmitter
Model: MBS3000
MRN: 060G1413
| Pressure Measuring Range | 0 to 16 bar |
| Connection | G 1/2 threaded |
| Electrical Connection | Plug connection |
| Supply Voltage | 10 to 30 V DC |
| Current Output | 4 to 20 mA |
| Sensor Temperature Range | minus 40 to 85 degree Celsius |
| Construction | Acid-resistant stainless steel (AISI 316L) |
| Features | Resistant to cavitation, liquid hammer, and pressure peaks |
| Application | Designed for severe industrial and hydraulic environments |
