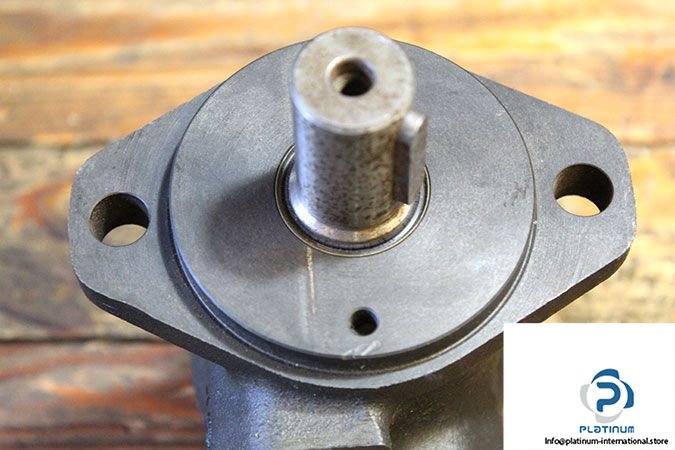

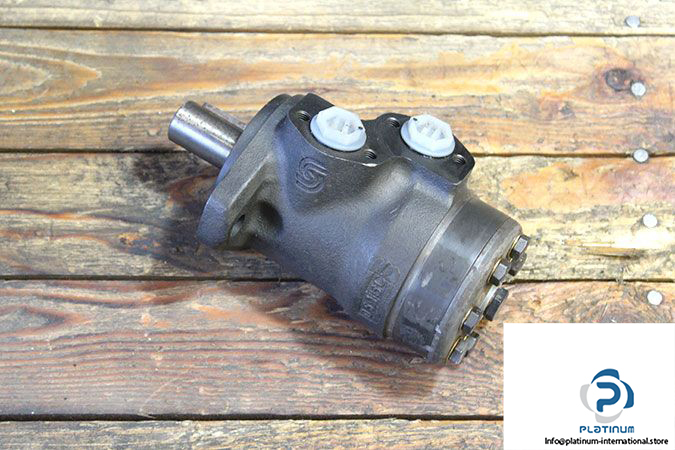

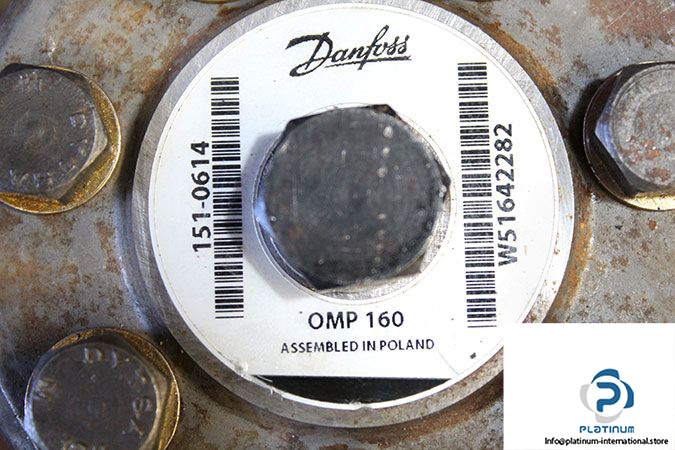

Danfoss OMP 160 Orbital Motor

Manufacturer: Danfoss

Type: Hydraulic Motor Drive

Model: OMP160

Size: 160

Displacement: 155.7 cm³

Max. oil flow: 60 l/min

Max. Pressure: 140 bar

Shaft Diameter: 25 mm

Max. torque: 300 Nm

Max Speed: 385 min^-1

Max. output: 10 KW

Viscosity Range: 10 …. 35 mm²/s

Weight: 6.3 Kg
