Danfoss RT 1 Pressure Switch
Neu
Auf Lager1 EinheitVersandbereit
Danfoss RT1 Druckschalter mit einstellbarem Druckbereich, SPDT-Kontaktsystem und IP66-Gehäuse für industrielle Druckregelungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

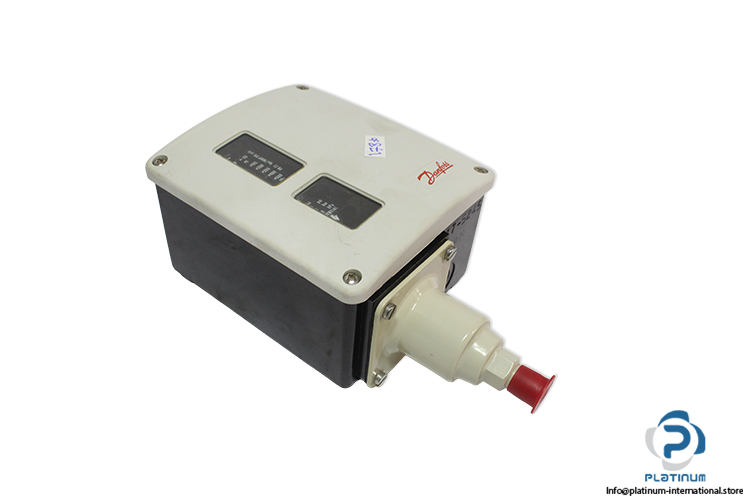

Danfoss RT1 Pressure Switch
The Danfoss RT1 is a robust mechanical pressure switch designed for reliable pressure control and monitoring in industrial systems. It belongs to the RT series and features a durable enclosure with high protection rating, making it suitable for demanding operating environments.
Manufacturer: Danfoss
Type: Pressure Switch
Model: RT1

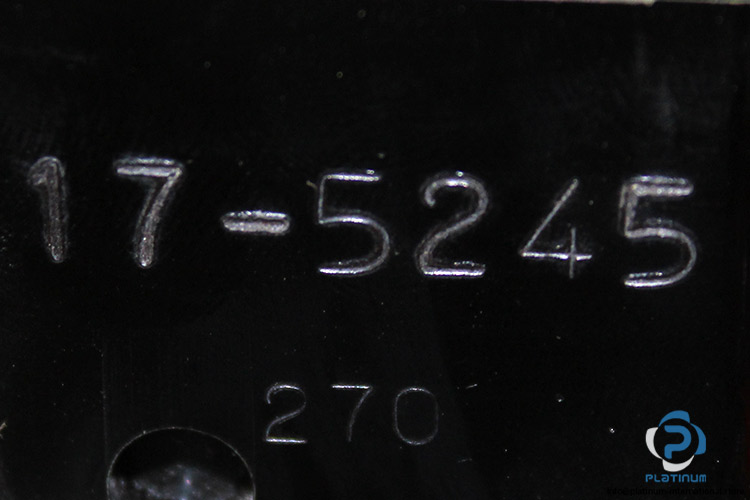

Part No.: 17-5245
Code: 017A1684 / 270

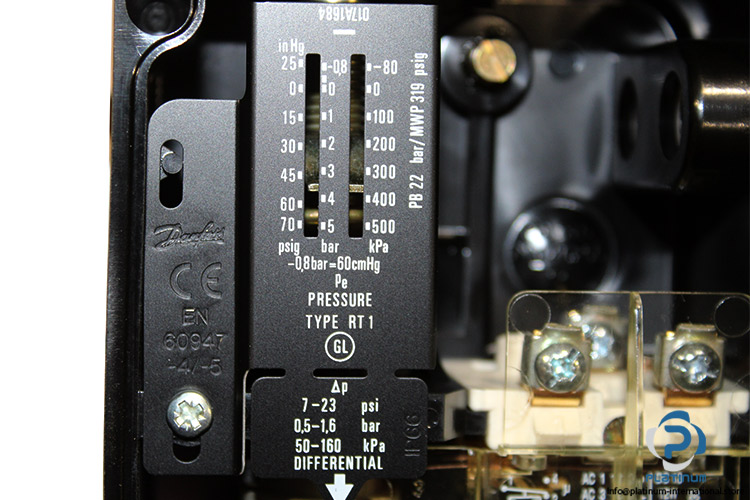

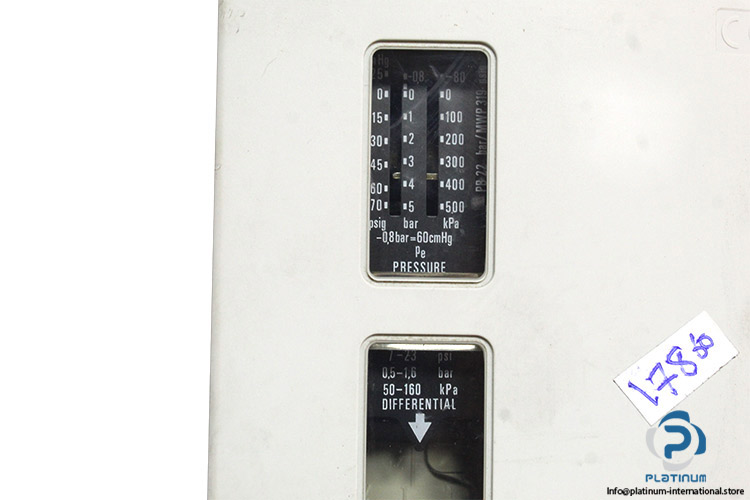

| Regulation Pressure Scale | -0.8 to 5 bar |
| Differential Pressure Setting Range | 0.5 “ 1.6 bar |
| Connection | G 1/8 |
| Contact System | Single-Pole Changeover Switch (SPDT) |
| Switch Type | RT Series Replacement Contact Unit |
| Maximum Working Pressure (PS / MWP) | 22 bar |
| Maximum Test Pressure (p') | 25 bar |
| Maximum Permissible Bellows Temperature | 70 °C |
| Enclosure Protection | IP66 according to IEC 529 |
