Danfoss SC15GHH Heat Pump Compressor
Wärmepumpenkompressor Danfoss SC15GHH Kompressor für R134a Kältemittel, 220-240 V Einphasenbetrieb, HBP/HST Anwendungen, mit 15,28 cm³ Hubraum und Relaisstart. Ideal für kommerzielle Kälteanlagen und Wärmepumpensysteme, die eine zuverlässige Kühlleistung erfordern.

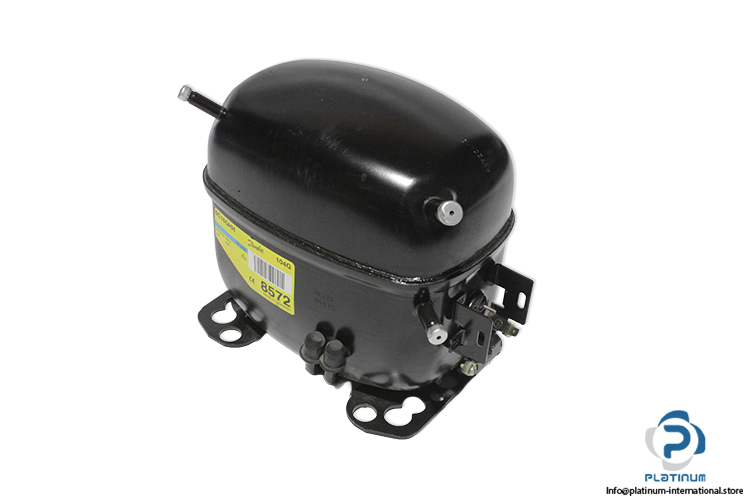

Danfoss SC15GHH Heat Pump Compressor
The Danfoss SC15GHH heat pump compressor is engineered for high back pressure (HBP) and heat system (HST) applications, delivering reliable refrigeration performance and stable operation in single-phase systems.

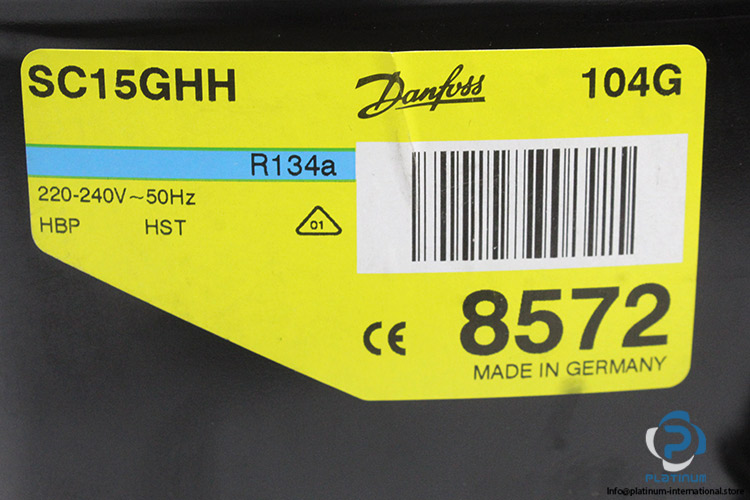

Manufacturer: Danfoss
Type: Heat Pump Compressor
Model: SC15GHH
Code: 104G
Part No.: 8572
Recommended for commercial refrigeration units, heat pump systems, and medium-capacity cooling installations requiring stable and energy-efficient performance.
| Application | HBP, HST |
| Refrigerant | R134a |
| Nominal Voltage | 220“240 V AC |
| Frequency | 50 Hz Single-Phase |
| Evaporating Temperature | -15 to 15°C |
| Starting Device Type | Relay |
| Displacement | 15.28 cm³ |
| Oil Quantity (Type) | 450 cm³ (Polyolester) |
| Maximum Refrigerant Charge | 1300 g |
| Free Gas Volume in Compressor | 1540 cm³ |
| Cooling | Oil Cooling Generally Used; System Cooling Options Available |
| Standard | CE |
| Dimensions | 209 × 255 × 151 mm |
