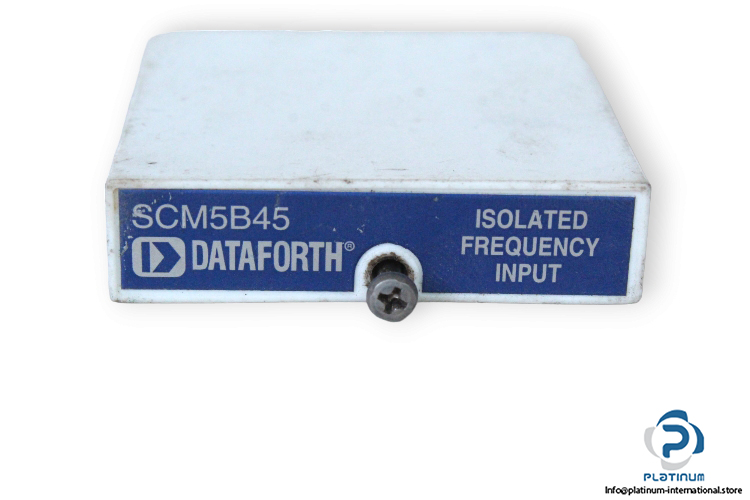

Dataforth SCM5B45-01 Frequency Input Module
Manufacture: Dataforth
Type: Frequency Input Module
Model: SCM5B4501
Input Range: 0 … 500 Hz
Output Range: 0 … +5 V
Mechanical Format: Modular plug-in-board
Isolation Voltage: 1500 Vrms
Isolation Type: Transformer 3-way
Accuracy: ±0.05% Span
Supply Voltage: +5 VDC ±5%
Input Voltage Withstand: 240 Vrms
Output Control: Enable/Disable
Output Resistance: 50 Ohms
Operating Temperature Range: -40 … 85°C
Dimensions: 58 x 57 x 15 mm
