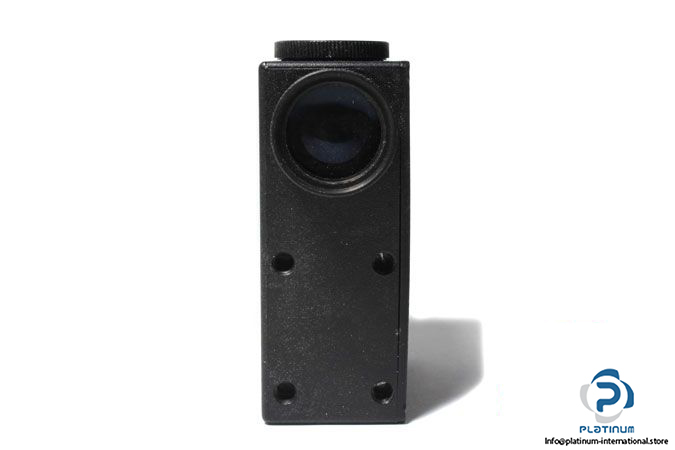

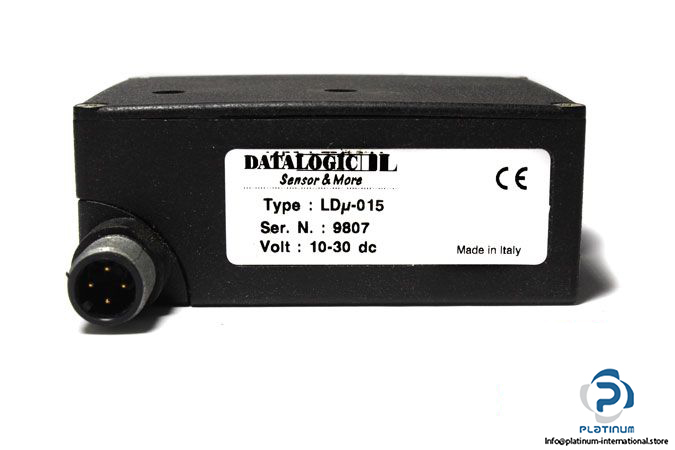

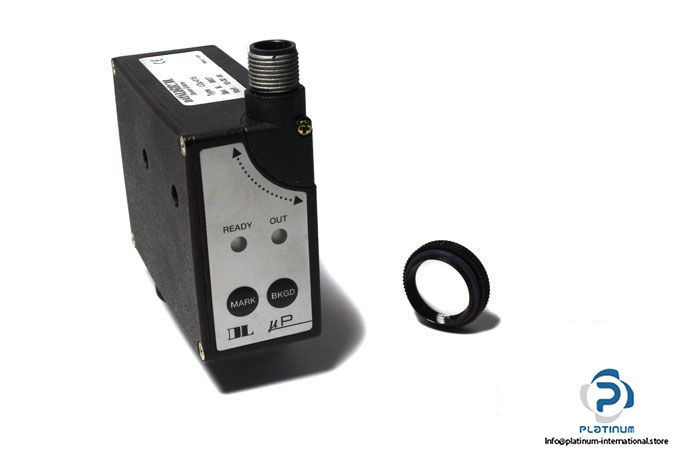

DATALOGIC LDµ-015 PHOTOELECTRIC REFLECTIVE SENSOR

Manufacturer: Datalogic

Type: Photoelectric Reflective Sensor

Series: LDµ

Model: LDµ-015 / LDu-015



Operating Distance: 9 … 18 mm

Power Supply: 10 … 30 V DC

Output Current: 200 mA

Output: PNP/NPN

Connector Type: M12 connector, 4-pin

Switching Frequency: 1000 Hz

Response Time: 500 µs max

Timing Function: 20 ms Minimum Output ON

Electric Shock Protection: Class 1

Degree of Protection: IP67

Dimensions (W x D x H): 31 x 80 x 85 mm

Ambient Temperature: -10 … 55 °C

Housing: Zama

Accessories:

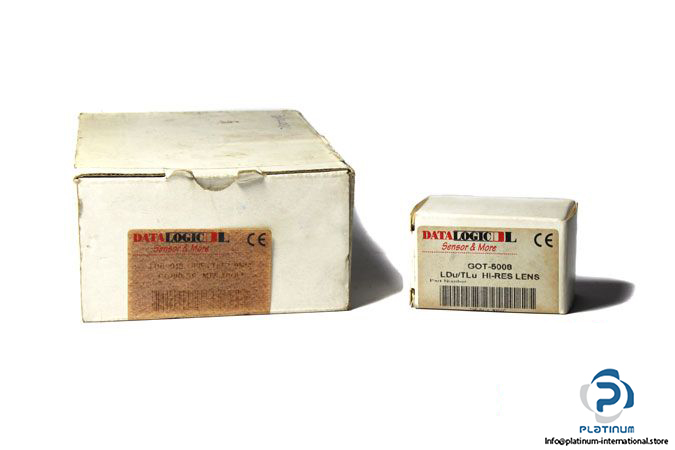

DATALOGIC GOT-5008 HI-RES LENS

Type: HI-RES LENS

Model: GOT-5008

Accessories For: DLU/TLU

Gross Weight: 0.37 kg
