Deublin 1115-000-200 Union
Gebraucht
Auf Lager1 EinheitVersandbereit
89,99$
Drehdurchführung DEUBLIN 1115-000-200 mit M16x2 RH Rotoranschluss, 3/8³-18 NPT Anschluss, unterstützt Vakuum, Hydrauliköl und Luft bis 34.5 bar und 121°C.
1115-000-200121°C3/8³34.5AirbarconnectionDeublinhigh-pressureHydraulicIndustrialJointM16x2NPTPortRHRotaryUnionvacuum
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

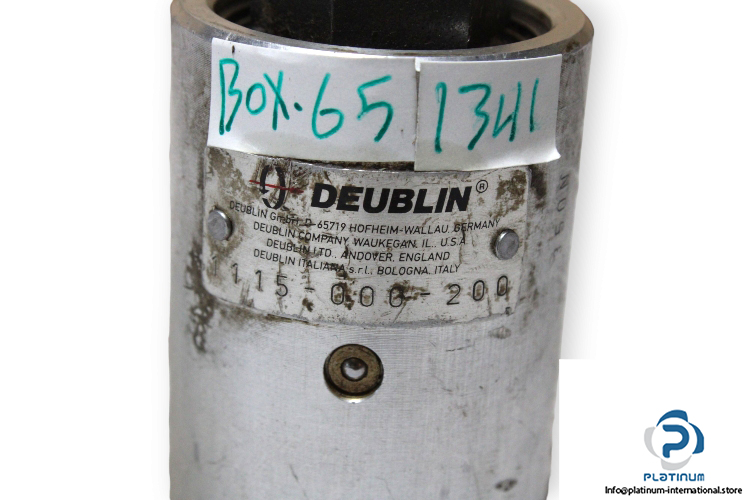

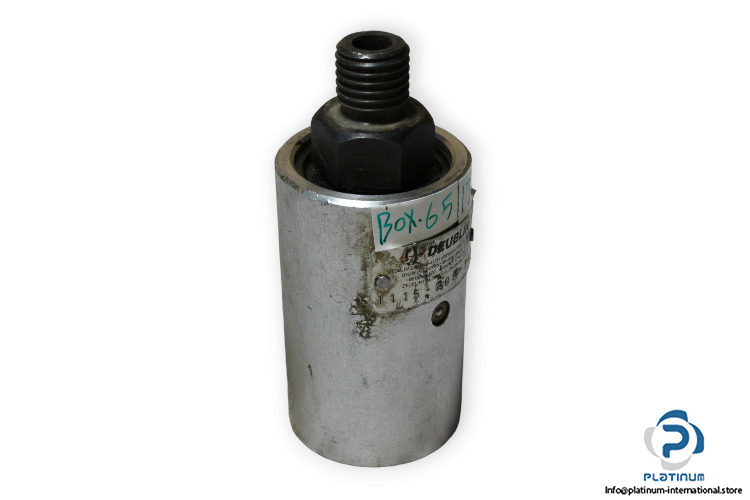

DEUBLIN 1115-000-200 Union
The DEUBLIN 1115-000-200 is a high-quality rotary union designed for reliable transmission of vacuum, hydraulic oil, and air across rotating machinery. Built to handle multiple media and high-pressure operation, it ensures efficient and leak-free performance in industrial environments.
Manufacturer: DEUBLIN
Type: Union
Model: 1115-000-200
| Rotor Connection | M16x2 RH |
| B Port | 3/8³-18 NPT mm |
| Overall Length | 100 mm |
| Media | Vacuum, Hydraulic Oil, Air |
| Media 1 Pressure | -0.95 bar |
| Media 2 Pressure | 34.5 bar |
| Media 3 Pressure | 10 bar |
| Media 2 Flow | 12.5 l/min |
| Media 3 Flow | 2549 l/min |
| Temperature | 121 °C |
