Deublin 1690-000-168 Rotating Joint
Gebraucht
Auf Lager4 EinheitenVersandbereit
269,99$
Drehgelenk Deublin 1690-000-168 mit 10 bar Luftdruck, 207 bar Hydraulikdruck und -0,95 bar Vakuumkapazität, mit G 1⅝-11 RH Rotor und ¼-18 NPT Gehäuseanschlüssen im Aluminiumgehäuse.
101690-000-168207882500/S0522AirAluminumbarcouplingDeublinHydraulicIndustrialJointM557750RotaryRotatingUnionvacuum
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

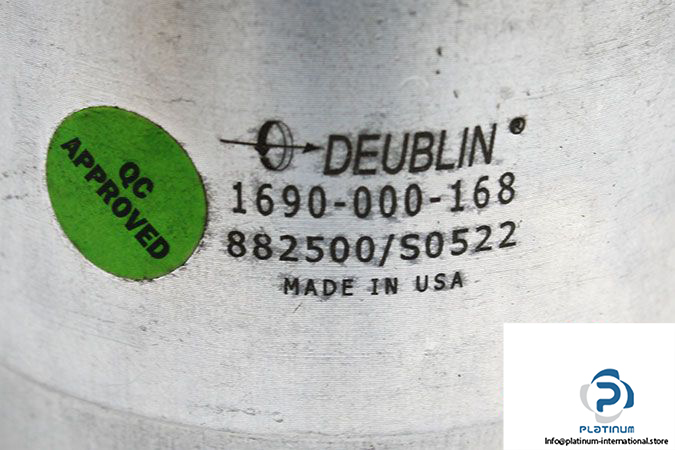

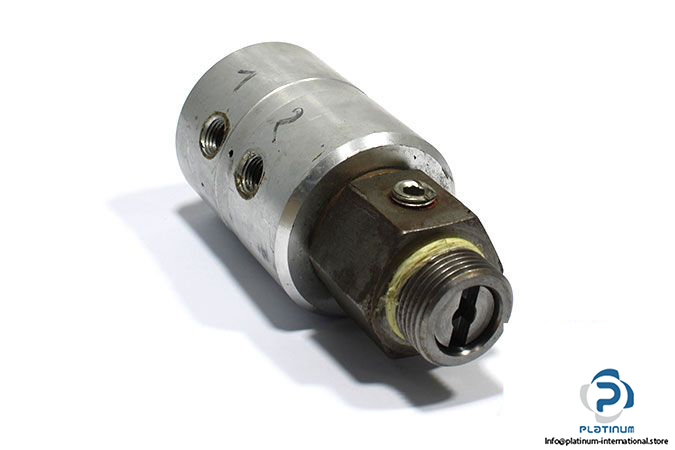

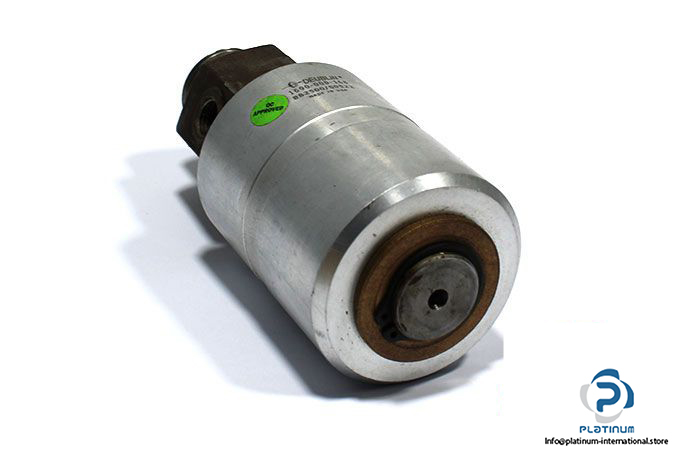

Deublin 1690-000-168 Rotating Joint
The Deublin 1690-000-168 is a high-performance rotating joint engineered for demanding applications involving vacuum, hydraulic oil, and air. It delivers reliable sealing, excellent pressure resistance, and efficient media transfer across rotating components, ensuring durable and leak-free operation in industrial environments.
Manufacturer: Deublin
Type: Rotating Joint
Model: 1690-000-168

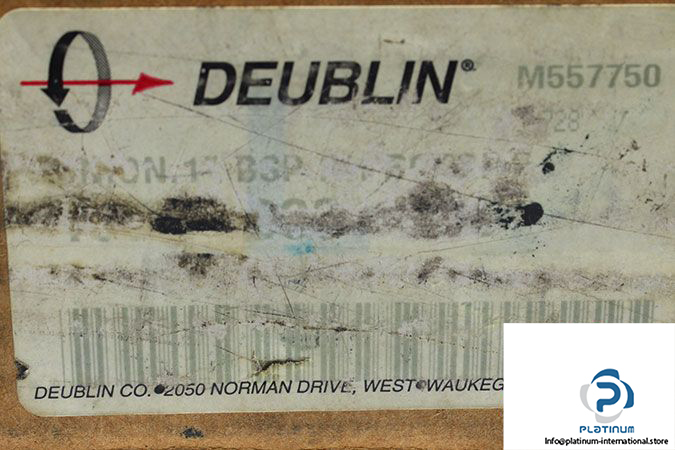

Part No.: M557750
MRN: 882500/S0522
| Air Max. Pressure | 10 bar |
| Hydraulic Oil Max. Pressure | 207 bar |
| Vacuum Max. Pressure | -0.95 bar |
| Air Max. Flow | 1132 l/min |
| Media | Vacuum, Hydraulic Oil, Air |
| Rotor Connection | G 1-11 RH |
| Housing Connection | ¼-18 NPT |
| Materials | Aluminum |
| Maximum Temperature | 121 °C |
