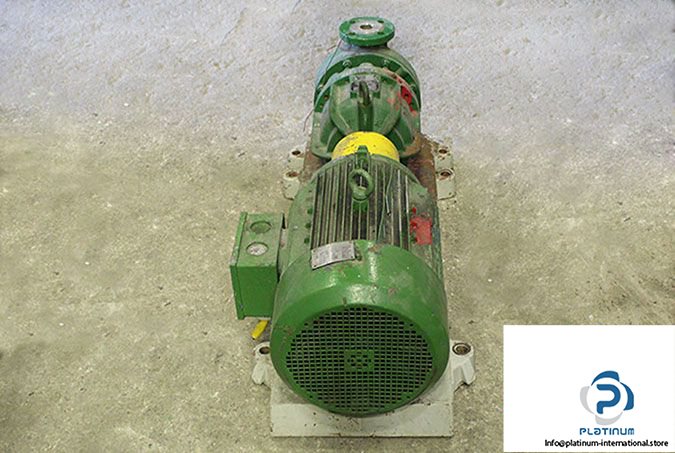

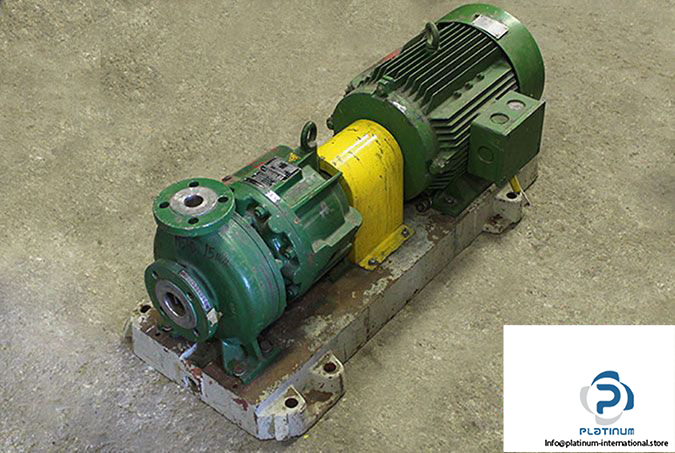

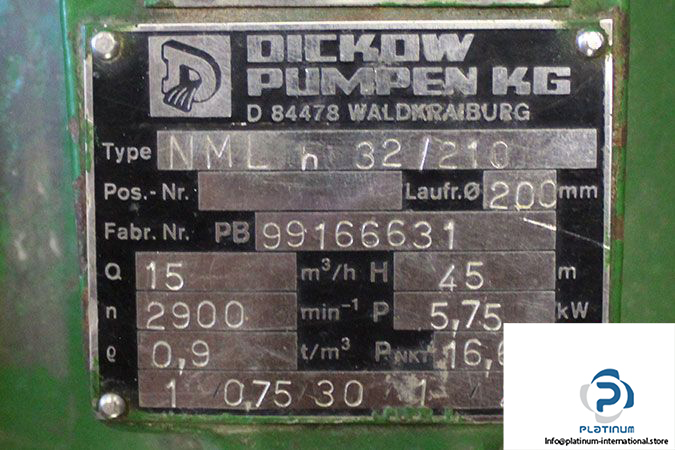

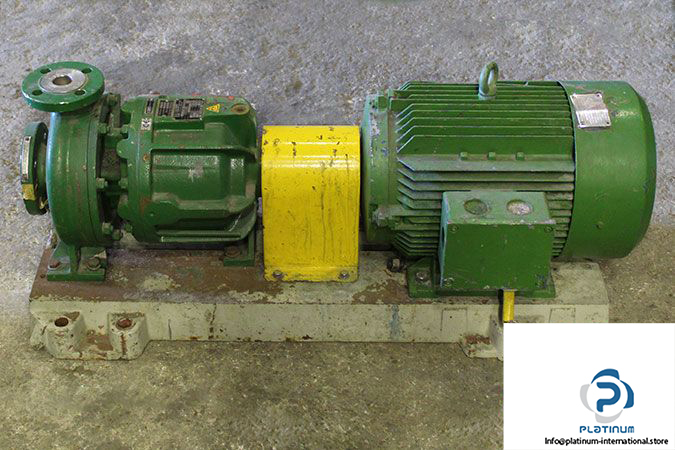

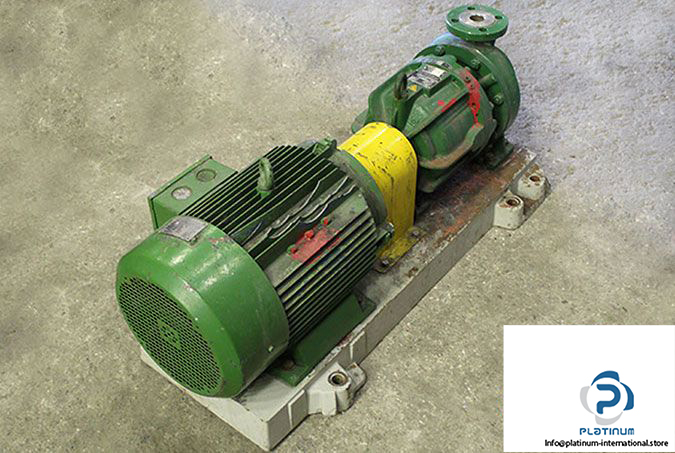

Dickow Pumpen Nmlh 32/210 Magnetic Driven Process Pump

Manufacturer: Dickow Pumpen KG

Type: Magnetic Driven Process Pump

Model: NMLH 32/210

Flow Rates: 15 m³/h

Rated Power: 5.75 kW

Head Loss: 45 m

Rated Speed: 2900 min^-1

Density: 0.9 t/m³

Impeller Diameter: 200 mm

Maximum Transmissible Coupling Power At Operating Temp. P_NKT: 16.6 kW

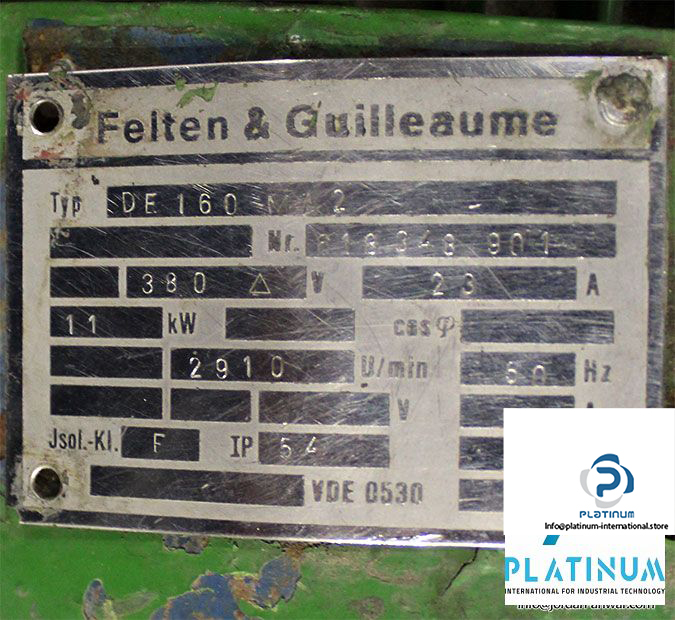

Attachment: FELTEN AND GUILLEAUME DE 160 MA2 3 PHASE ELECTRIC MOTOR

Manufacturer: Felten and guilleaume

Type: 3 Phase Electric Motor

Model: DE 160 MA2

Rated Voltage: 380 V

Rated Current: 23 A

Rated Power: 11 kW

Rated Speed: 2910 min^-1

Frequency: 60 Hz

Power Factor: 0.85

Protection Class: IP54

Thermal Class: F

Gross Weight: 227.2 kg
