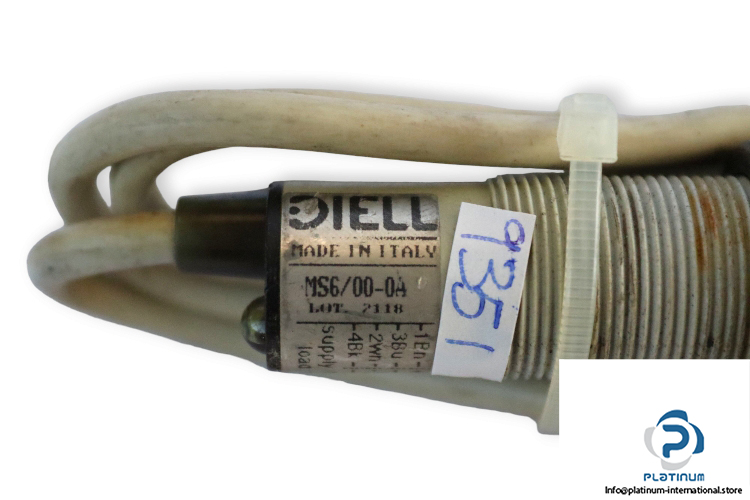

Diell MS6/00-0A Diffuse Sensor

Manufacturer: DIELL
Type: Diffuse Sensor
Model: MS6000A

Sensing Range: 400 mm
Emission: Infrared (880 nm)
Operating Voltage: 10 … 30 V DC

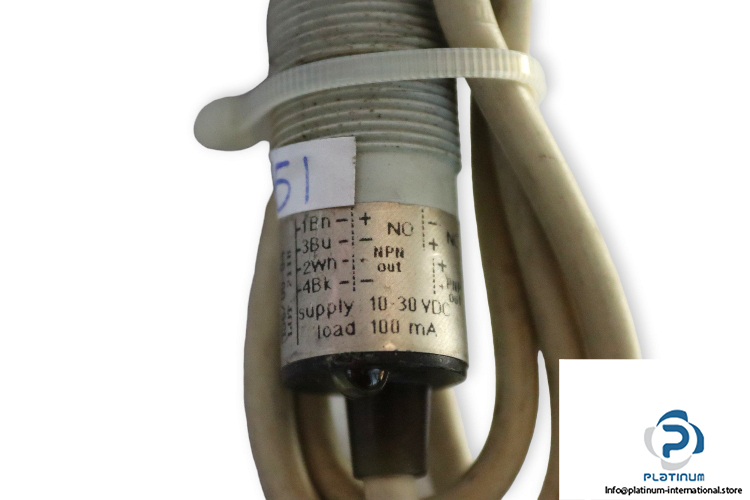

Switching Output: NPN / PNP, Normally Open (NO) / Normally Closed (NC) Programmable
Rated Switching Current: 100 mA
Electrical Connection: Cable 4-Wires, 2 m
Housing Material: Plastic
Protection Class: IP67
Sensor Length, Diameter: 78.9, 18 mm
Operating Temperature: -25 … 70 °C
