Receiver for Safety Light Curtain
The DIELL SBHR/BF-NH receiver operates with the SBHE/BF-NH sender to form a light curtain system, offering 24V DC input, IP65 protection, and guarded area detection up to 19 meters.24vBarrierCurtaindcDiellIndustrialLightPhotoelectricReceiverSafetySbhe/Bf-NHSbhr/Bf-NHSenderSensorSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

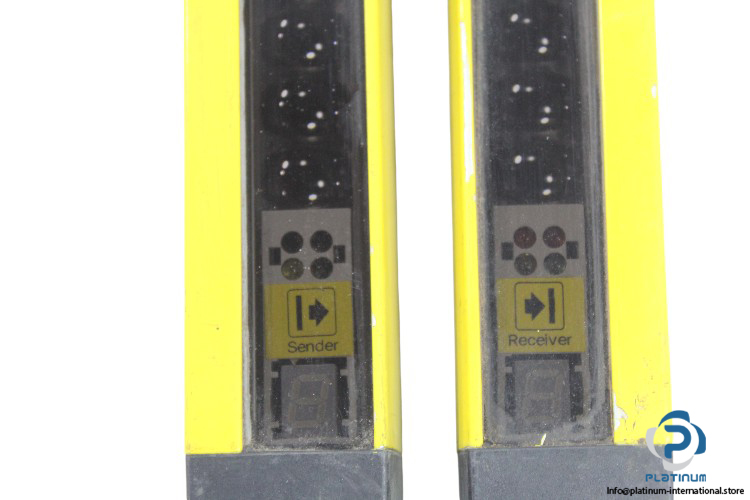

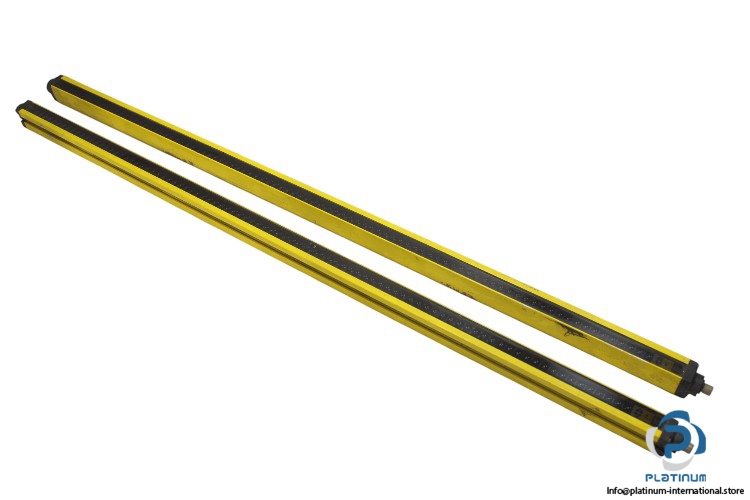

DIELL SBHR/BF-NH Receiver with SBHE/BF-NH Sender
The DIELL SBHR/BF-NH receiver, when paired with the SBHE/BF-NH sender, forms a reliable photoelectric safety light curtain system. Designed to monitor access and secure hazardous zones, it offers precise detection across wide guarded areas in industrial applications.

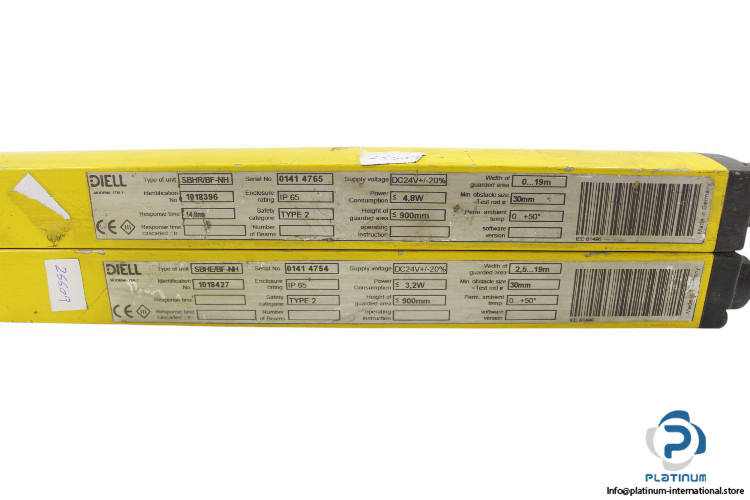

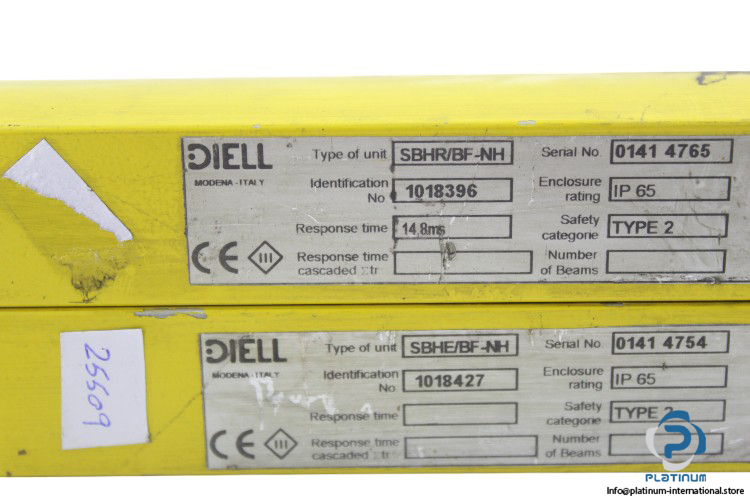

Manufacturer: DIELL
Type: Receiver
Model: SBHR/BF-NH
Part No.: 1018396
Compatible Sender Unit:

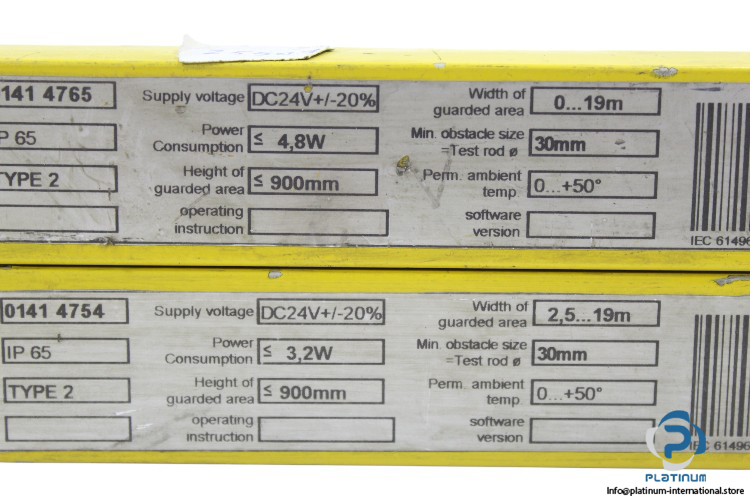

| Supply Voltage | 24V DC |
| Enclosure Rating | IP 65 |
| Power Consumption | 4.8W |
| Width of Guarded Area | 0...19m |
| Minimum Obstacle Size (Fault Rod) | 30 mm |
| Permissible Ambient Temperature | 0 ... +50 °C |
| Part No. | 1018427 |
| Supply Voltage | 24V DC |
| Enclosure Rating | IP 65 |
| Power Consumption | 3.2W |
| Width of Guarded Area | 2.5...19m |
| Minimum Obstacle Size (Fault Rod) | 30 mm |
| Permissible Ambient Temperature | 0 ... +50 °C |
