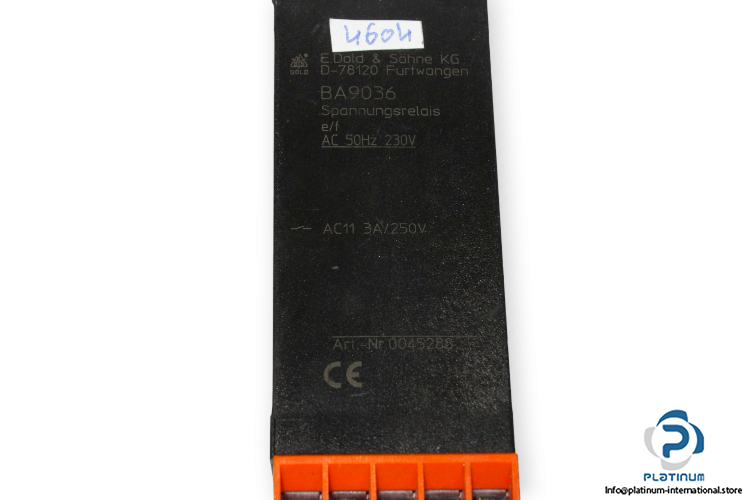

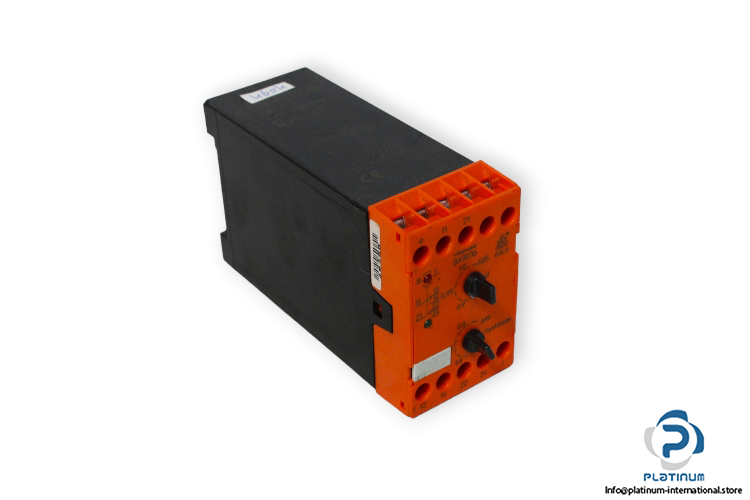

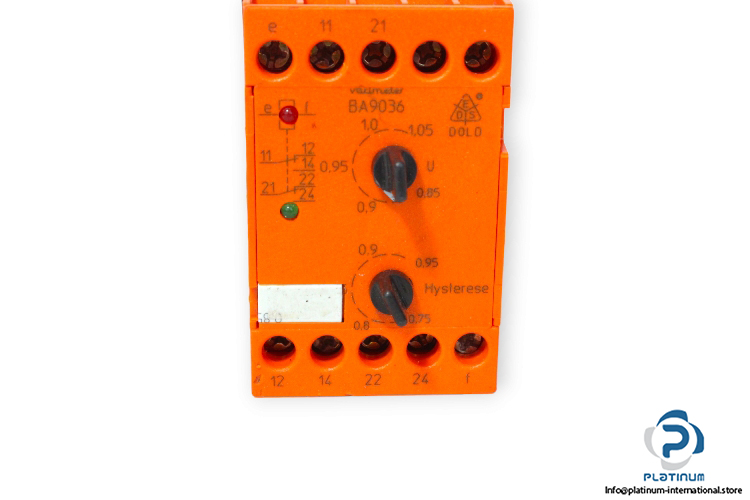

Dold 0045288 Varimeter Voltage Relay

Manufacture: Dold
Type: Varimeter Voltage Relay
Model: BA9036
Art. No.: 0045288

Nominal voltage U_N: 230 V AC
Nominal frequency of U_N: 50 Hz
Nominal consumption: 6 VA / 10 W
Contact rating: 2 changes over contact (SPDT)
Switching capacity
AC-11: 250 V AC,3 A
Operation temperature: -20 … + 60°C
Hysteresis: 0.75 … 0.95 of setting value
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 73 x 132 mm
