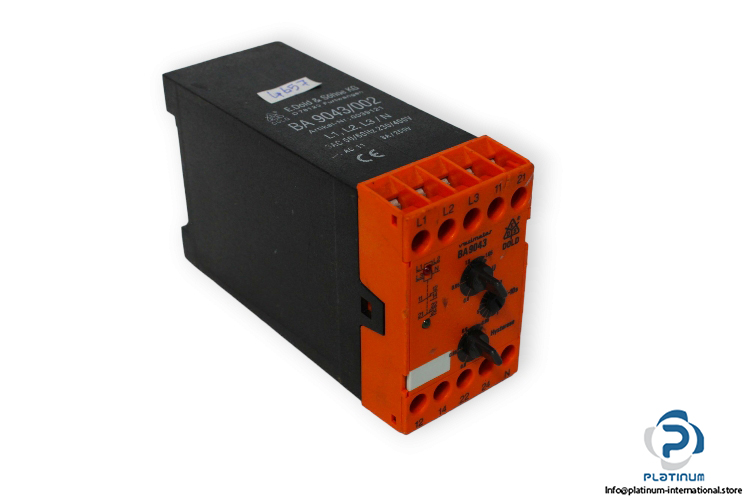

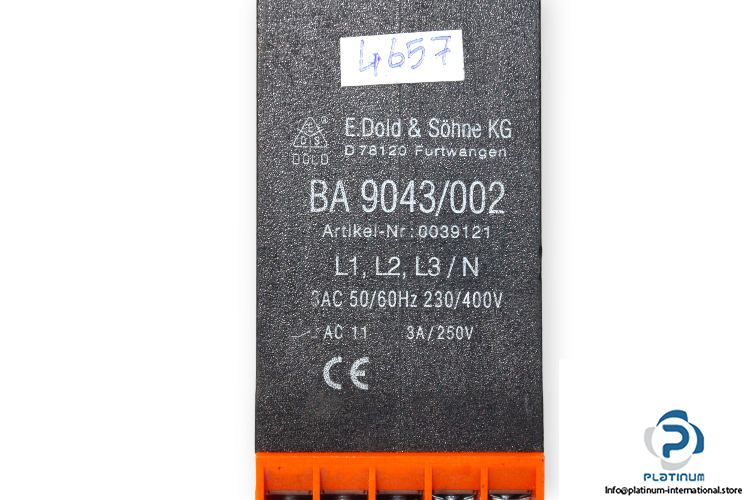

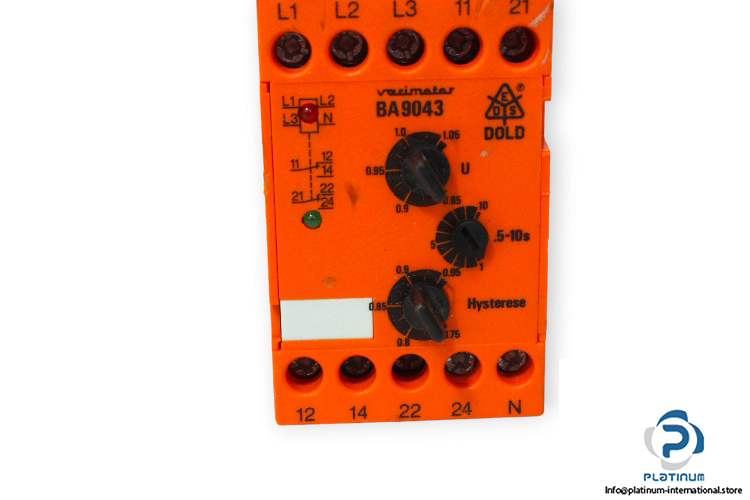

Dold BA 9043/002 Undervoltage Relay

Manufacture: Dold
Type: Undervoltage Relay
Model: BA9043/002
Art. No.: 0039121

Nominal voltage UN: 230/400 V AC-3phase
Nominal frequency of UN: 50/60 Hz
Nominal consumption: 4 VA
Contact rating: 2 changeover contacts
Time Delay TV: 0.5 … 10s
Switching capacity AC-11: 250 V AC,3 A
Operation temperature: -20 … 60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 73 x 132 mm
