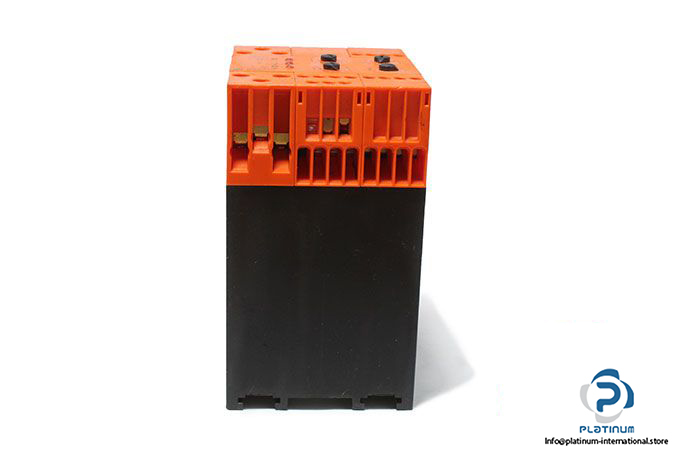

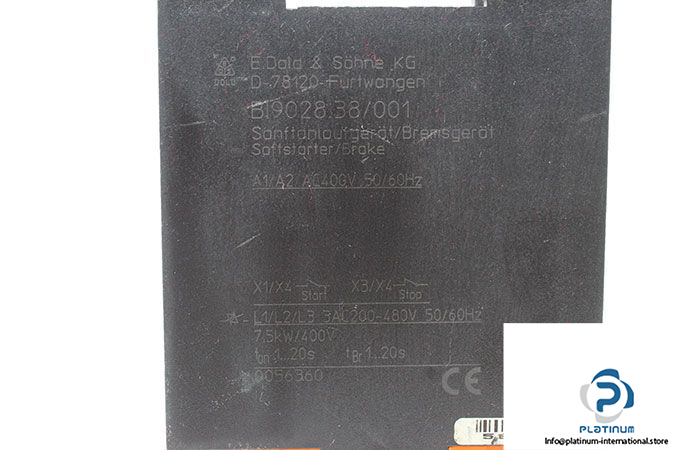

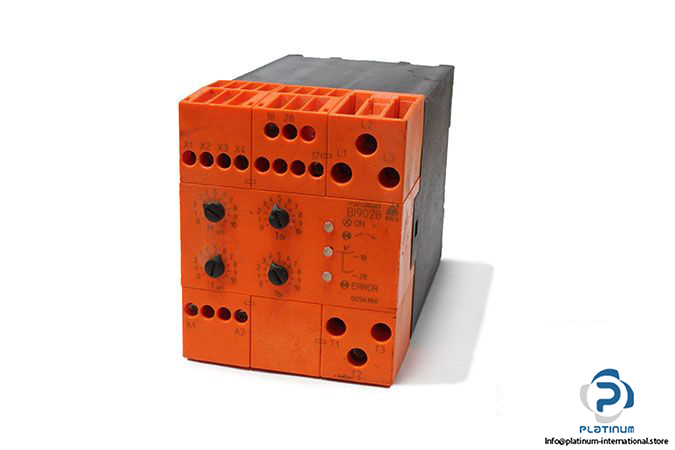

Dold BI9028.38/001 Softstarter With DC-Brake
275,00$
Sanftanlasser mit integriertem DC-Bremsgerät für Drehstrommotoren bis 7,5 kW. Ideal für Anwendungen mit Riemen, Lüftern, Pumpen und Förderern, die kontrollierte Starts, Stopps und Bremsvorgänge erfordern.
DOLD BI9028.38/001 SOFT STARTER WITH DC-BRAKE
The Dold BI9028.38/001 is a versatile soft starter with integrated DC-braking, designed to ensure smooth acceleration and deceleration of motors while minimizing mechanical stress. Ideal for applications with high starting torque or inertial loads, it supports reliable and efficient motor control across various industrial systems.
Manufacturer: Dold
Type: Soft Starter with DC-Brake
Model: BI9028.38/001
Art No.: 0056360
Applications
Motor with gear, belt or chain drive
Fans, pumps, conveyor systems, compressors
Woodworking machines, centrifuges
| Phase / Motor Voltage | 3 phase 200 / 480 VAC |
| Frequency | 50 / 60 Hz |
| Nom. Motor Power | 7.5 kW |
| Auxiliary Voltage | 400 VAC |
| Temperature Range (Operation) | 0 / +45 °C |
| Degree of Protection | Housing IP40 / Terminals IP20 |
| Dimensions | 68 x 119 x 84 mm |
