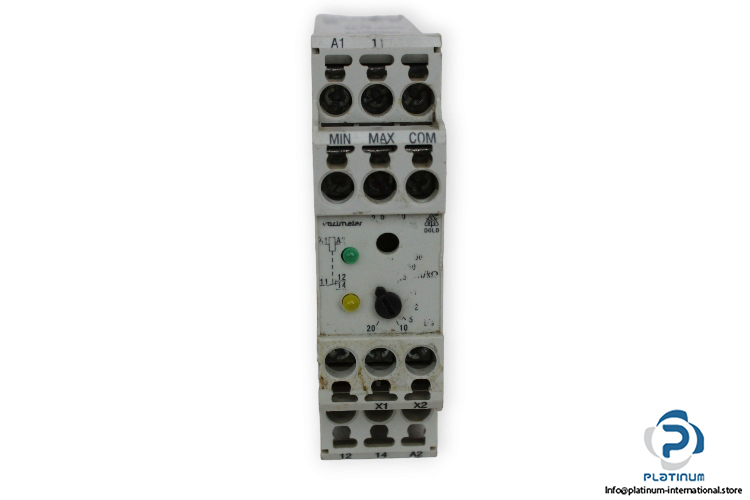

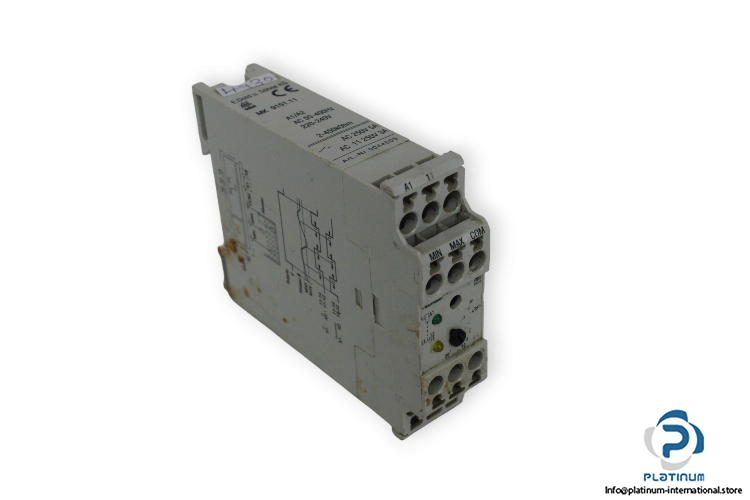

Dold MK 9151.11 Level Sensing Relay
Manufacture: Dold
Type: Level Sensing Relay

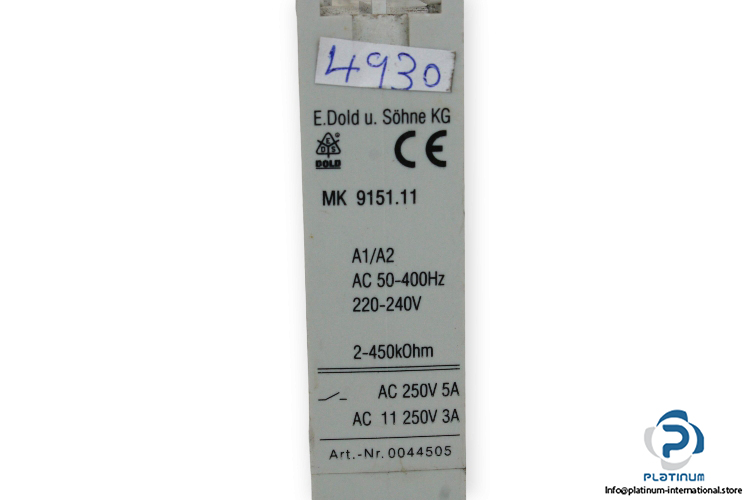

Model: MK9151.11
Art. No.: 0044505
Supply voltage: 220 … 240 V AC
Frequency: 50 … 400 Hz
Response value: 2 … 450 kOhm
Output: 1 change over contact (SPDT) (250 V AC,5 A)
Switching capacity AC-11: 250 V AC,3 A
Operating temperature range: -20 … +60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
