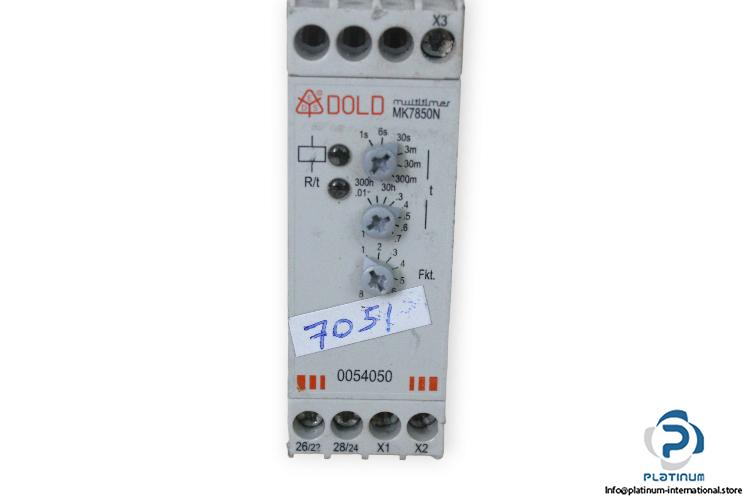

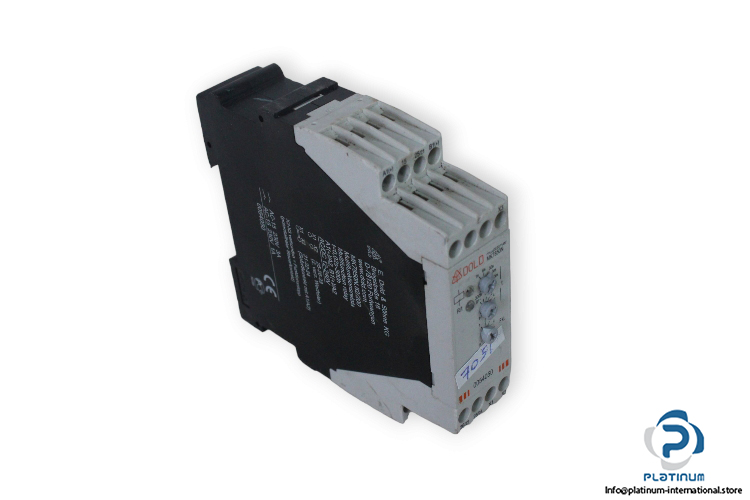

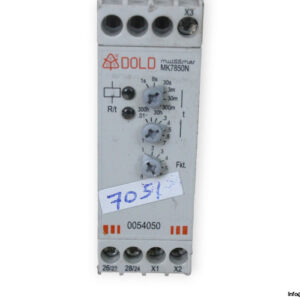

Dold MK7850N.82/200 Multifunction Timer Relay
Manufacture: Dold
Type: Multifunction Timer Relay
Model: MK7850N.82/200

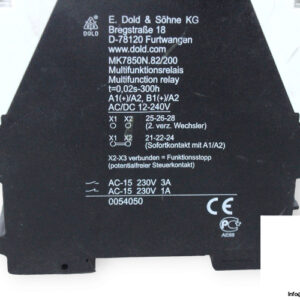

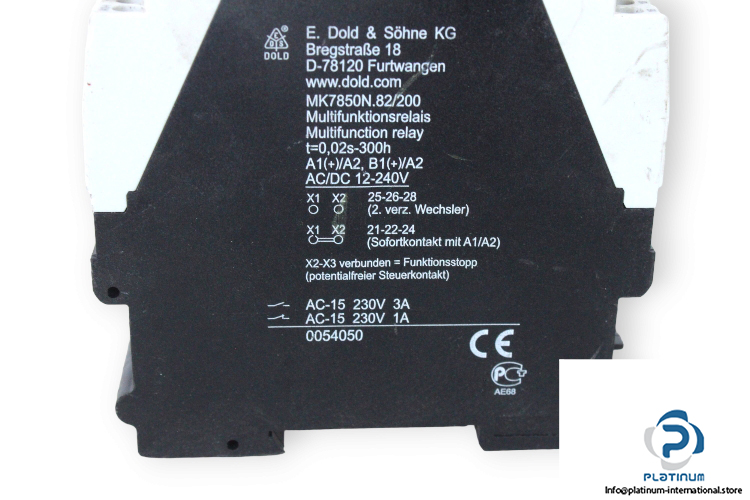

Art. No.: 0054050
Supply voltage: 12 … 240 V AC/DC
Output: 2 change over contact

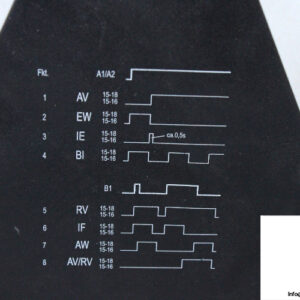

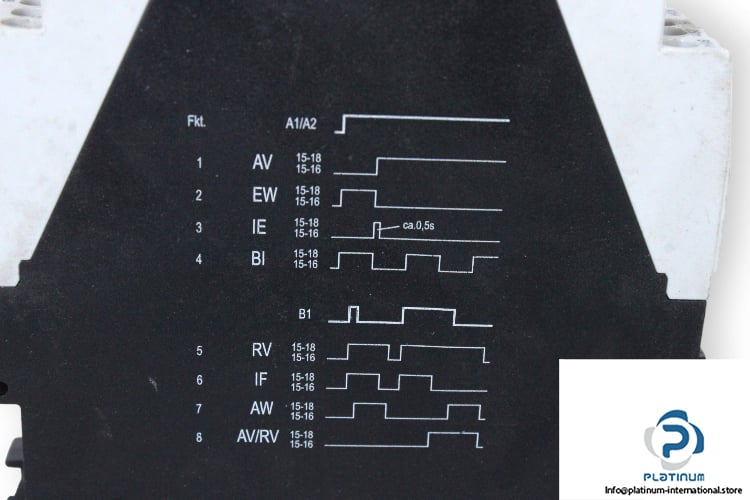

Time range: 8 time ranges (0.02s … 300h)
Contact material: AgNi
Switching capacity:
AC 15:
NO contact: 3 A / AC 230 V AC
NC contact: 1 A / AC 230 V AC
Dimensions: 22.5 x 90 x 97 mm
