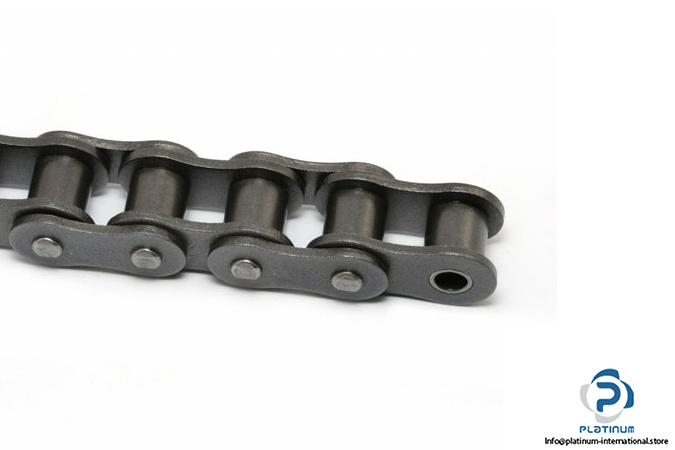

Name: DONGHUA 06B-1 SINGLE-STRAND ROLLER CHAIN
SKU: 1001902
Availability: LimitedAvailability

Manufacturer: DONGHUA
Type: Single-Strand Roller Chain
Model: 06B-1

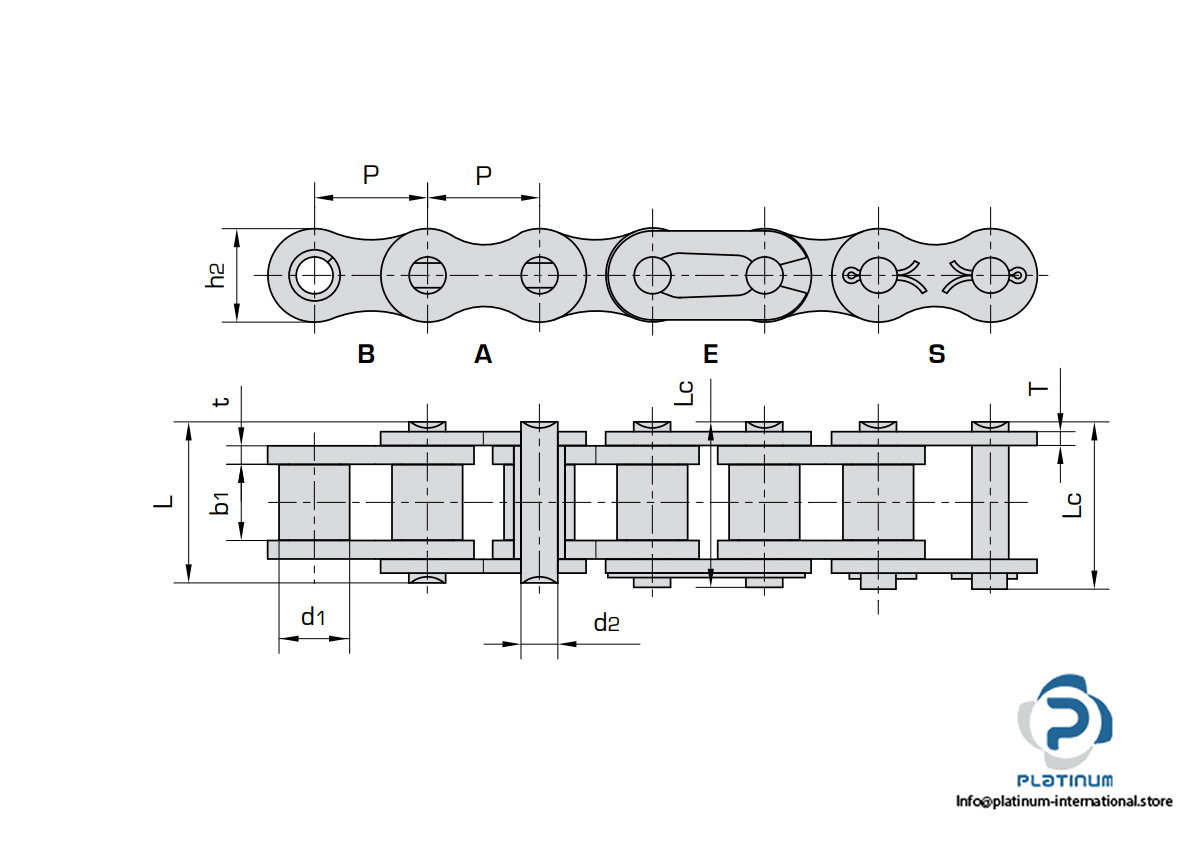

DIN/ISO 606
Chain no. 06B-1
PitchP: 9.525 mm
Roller diameter d1: 6.35 mm
Width between inner plates b1: 5.72 mm
Pin diameter d2 max/L max: 3.28/13.15 mm
Pin length Lc max: 14.1 mm
Plate thickness T: 1.3mm
Ultimate tensile strength Q min: 9.0/2045 kN/lbf
Average tensile strength Q0: 10.4 kN
Weight per meter q: 0.41 kg/m

Spezifikation	Wert
Condition	New / Used
Part No.	N/A
Shelf No.	230304
Brand	DONGHUA
Type of Product	ROLLER CHAIN

Preis	Auf Anfrage
Lager	Auf Anfrage verfügbar
Kategorie	Single Strand Roller Chains
Zustand	Neu & Gebraucht
SKU	1001902

Condition	New / Used
Part No.	N/A
Shelf No.	230304
Brand	DONGHUA
Type of Product	ROLLER CHAIN

Donghua 06B-1 Single-Strand Roller Chain
