Drive AX 80.075 Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
1 022,22$
Servo Motor
DRIVE AX 80.075 Servo Motor delivers precise motion control with a 0.8 kW power rating, 1500 RPM nominal speed, and a maximum speed of 7500 RPM. Designed for industrial automation, it features an IP54 protection class and an F-class insulation system.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

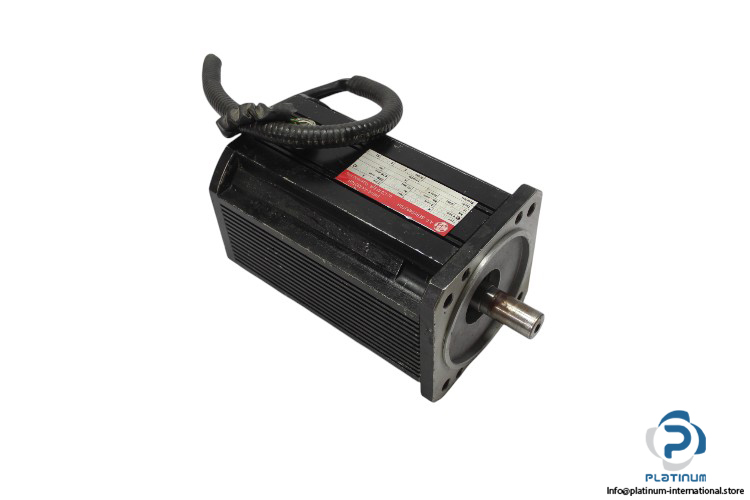

DRIVE AX 80.075 Servo Motor
The DRIVE AX 80.075 Servo Motor is designed for high-precision motion control applications, delivering reliable performance with optimized speed and torque. With a nominal power of 0.8 kW and a maximum speed of 7500 RPM, this servo motor is built for efficiency and durability in industrial automation and robotics.
- Manufacturer: DRIVE AX
- Type: Servo Motor
- Model: 80.075
- Part No: 818A92

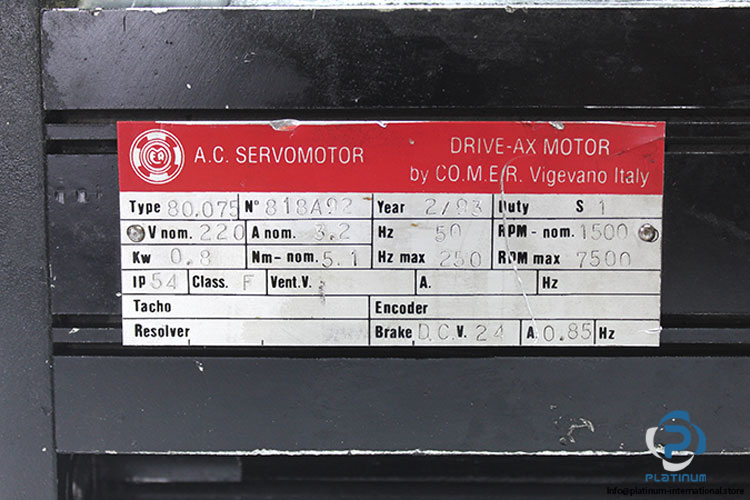

Technical Specifications
- Nominal Voltage: 220 V
- Nominal Speed: 1500 RPM
- Nominal Frequency: 50 Hz
- Nominal Power: 0.8 kW
- Nominal Current: 3.2 A
- Nominal Torque: 5.1 Nm
- Max Speed: 7500 RPM
- Max Frequency: 250 Hz
- Duty: S1
- Isolation Class: F
- Protection Class: IP54
- Brake Voltage: 24 VDC
- Brake Current: 0.85 A
