Drive Systems MP66L K53 DC Servomotor
Neu
Auf Lager1 EinheitVersandbereit
DC SERVOMOTOR
Drive Systems MP66L K53 is a high-performance 160 V DC servomotor with 440 W output and 2.1 Nm torque, featuring IP54 protection and a DC10R tachogenerator for precise speed feedback.160V2.1NmControldcDC10RDriveEH62EncoderIndustrialIP54K53MotionmotorMP66LPrecisionServoServomotorSystemsTachogenerator
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

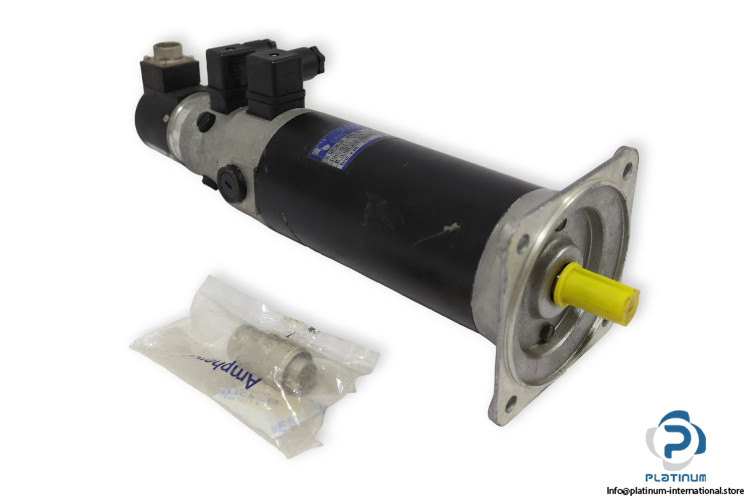

DRIVE SYSTEMS MP66L K53 DC SERVOMOTOR WITH DC10R TACHOGENERATOR
Drive Systems’ MP66L K53 is a precision-engineered DC servomotor designed for dynamic and demanding industrial control applications. With high torque output and integrated tachogenerator feedback, it offers stable, efficient performance across a wide range of operating conditions.
Manufacturer: Drive Systems
Type: DC Servomotor
Model: MP66L K53
No.: 169045/05

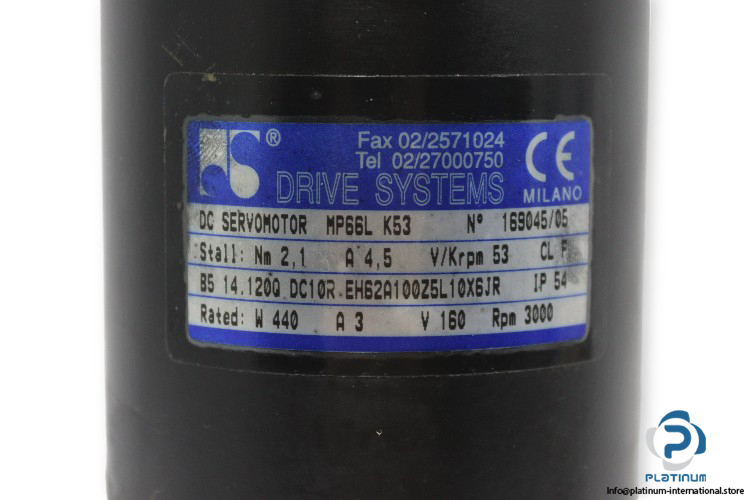

Technical Information “ Servomotor
- Rated Voltage: 160 V
- Rated Current: 3 A
- Stall Current: 4.5 A
- Rated Speed: 3000 rpm
- Voltage Constant: 53 V/Krpm
- Rated Power: 440 W
- Stall Torque: 2.1 Nm

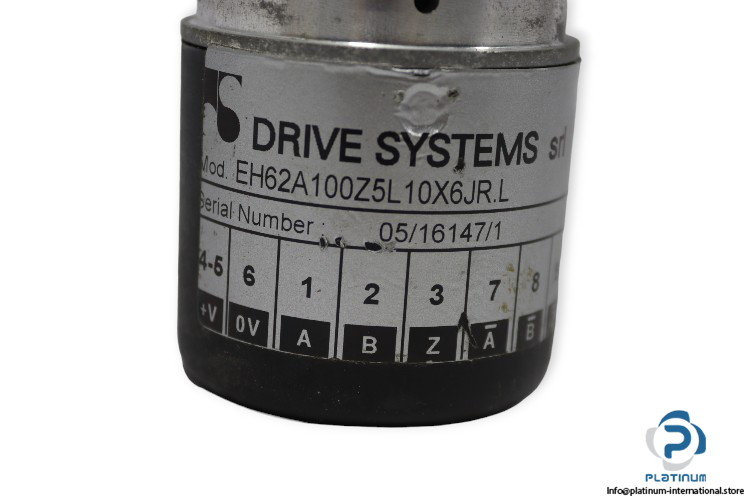

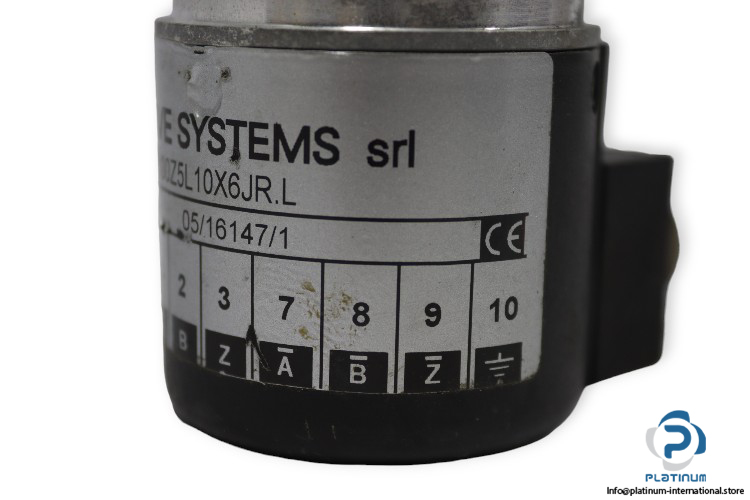

- Encoder Model: EH62A100Z5L10X6JR.L
- Encoder Serial No.: 05/16147/1
- Number of Poles: 2 poles
- Thermal Class: F
- Protection Class: IP54

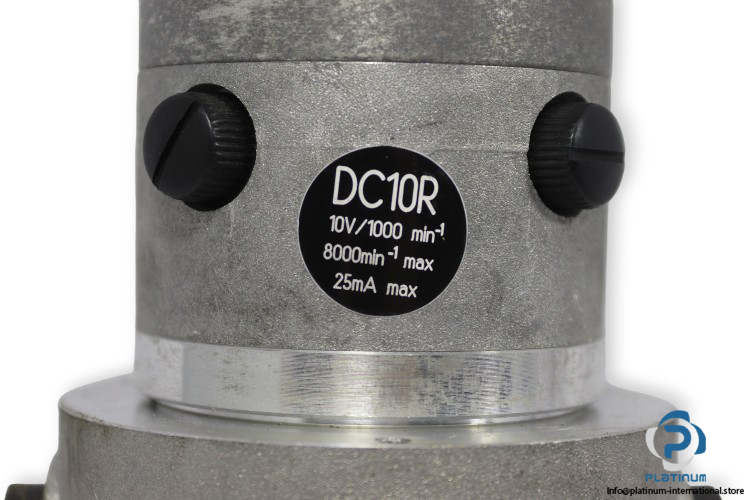

Attachment “ Tachogenerator
Manufacturer: Drive Systems
Type: DC Tachogenerator
Model: DC10R
- Rated Voltage: 10 V
- Rated Speed: 1000 min-1
- Maximum Speed: 8000 min-1
- Maximum Current: 25 mA
