Dropsa VIP2 1639093 Advanced Lubrication Controller
Gebraucht
Auf Lager1 EinheitVersandbereit
Advanced Lubrication Controller
Dropsa Vip2 lubrication controller Part No. 1639093 with 20W power, -5°C to +55°C operating range, multiple input contacts, high-capacity outputs, and digital LED displays for industrial automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

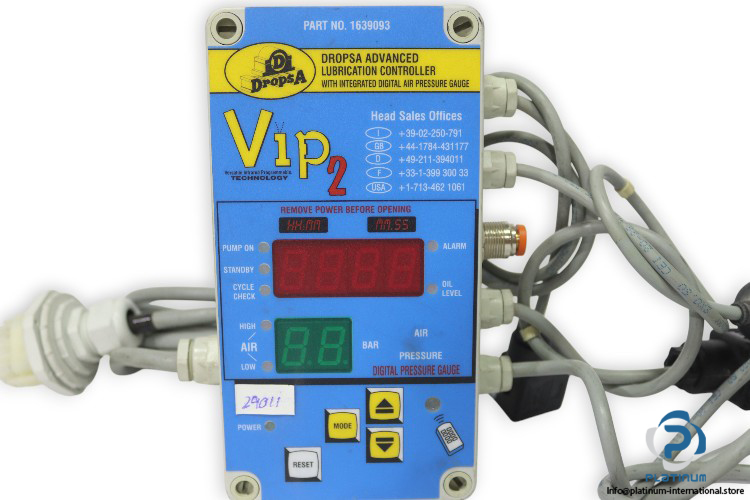

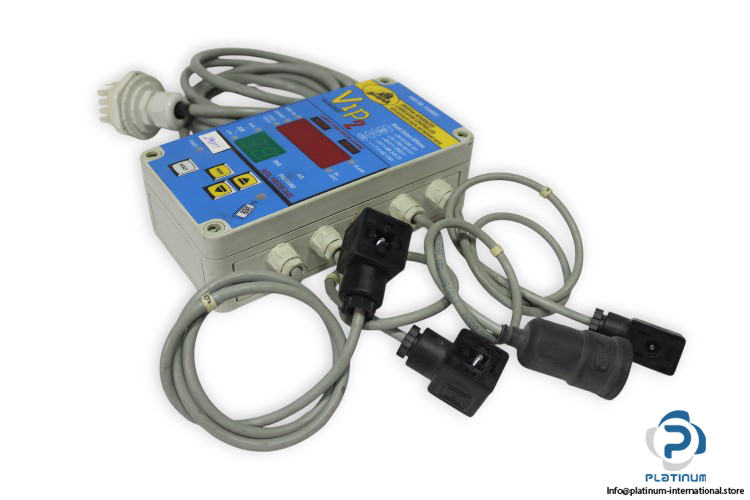

Dropsa Vip2 Advanced Lubrication Controller
The Dropsa Vip2 Advanced Lubrication Controller (Part No: 1639093) is engineered for precise and efficient lubrication management in industrial applications. Built with robust features, it ensures reliable control, monitoring, and automation of lubrication systems.
Manufacturer: DROPSA
Type: Advanced Lubrication Controller
Part No.: 1639093
Series: Vip2
Input Contacts:
Outputs:

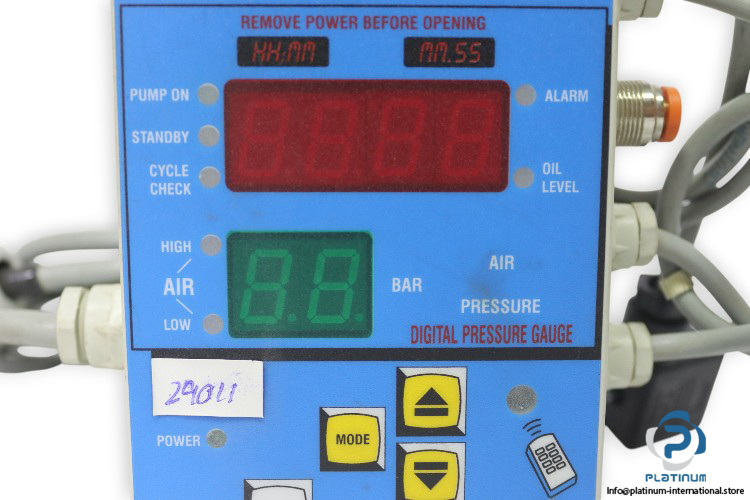

Front Panel Display & LEDs:
| Power Consumption | 20 Watt |
| Operating Temperature | -5°C to +55°C |
| Power | 110V AC Single Phase |
| Oil Level | Level switch normally open/normally closed, software selectable |
| Control Input | 12V Max. N.O. Pressure Switch, Micro/Reed Switch, Proximity (NPN/PNP autodetect) |
| Pump/Drive Line | 110V 5A 50/60 Hz |
| Air Solenoid | 110V 5A 50/60 Hz |
| Alarm Output | Voltage free contact, Max 110V, 1A, software selectable normally open/normally closed |
| Time/Option Display | 4 Digit Display |
| Air Pressure Display | 2 Digit Display |
