Dungs LGW 3 A2 Differential Pressure Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Differential Pressure Switch
Dungs LGW3A2 with 0.40“3 mbar setting range, IP54 protection, and 250 V AC operation. Designed for monitoring air, flue, and exhaust gas pressures in industrial systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

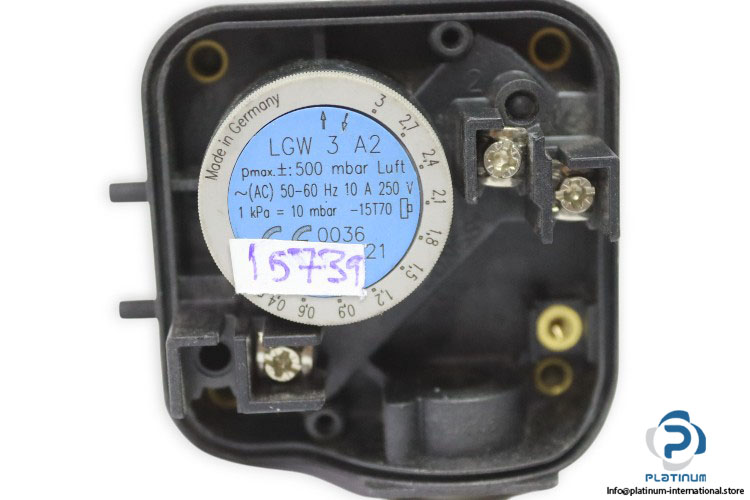

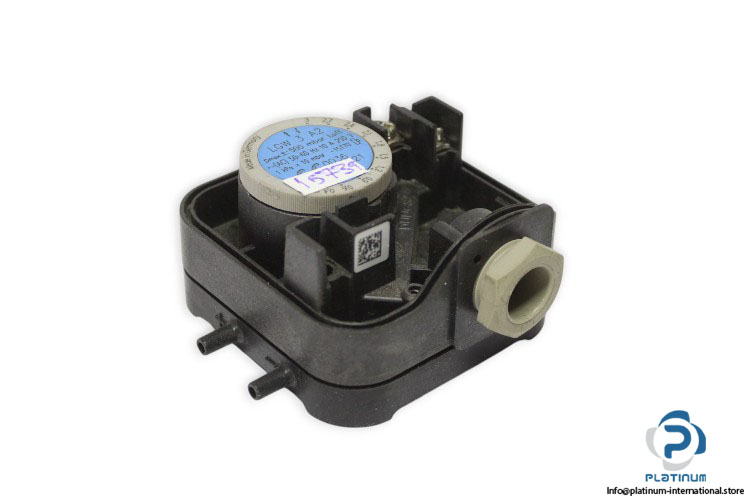

Dungs LGW3A2 Differential Pressure Switch
The Dungs LGW3A2 is a reliable and precise differential pressure switch designed for monitoring and controlling air, flue, and exhaust gas pressures in industrial and heating applications. With a wide adjustment range and high protection class, it ensures consistent performance under demanding conditions.
Manufacturer: Dungs
Type: Differential Pressure Switch
Model: LGW3A2
Ref. No.: 0036 15T70

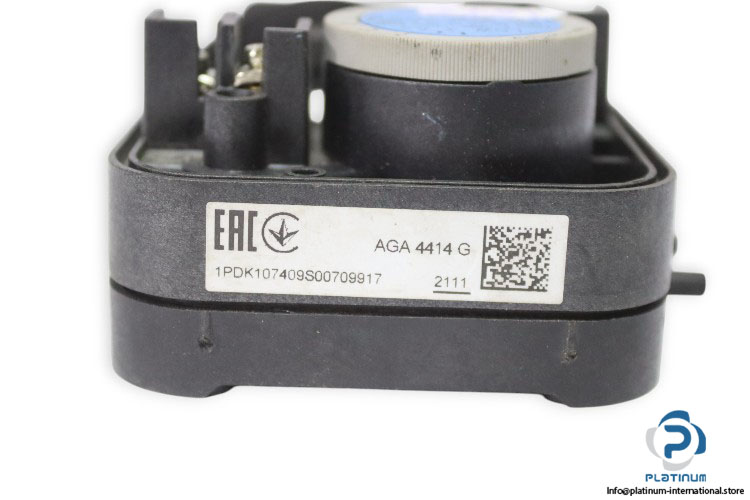

EAC AGA: 4414 G / 1PDK107409S00709917 2111
| Fluid | Air, flue and exhaust gases |
| Max. Operating Pressure | 500 mbar luft |
| Pressure Setting Range | 0.40 / 3 mbar |
| Supply Voltage | 250 V AC, at 50 to 60 Hz |
| Electrical Rating | 10 A SPDT switch |
| Protection Class | IP54 |
| Operation Temperature Range | -15 to 70°C |
