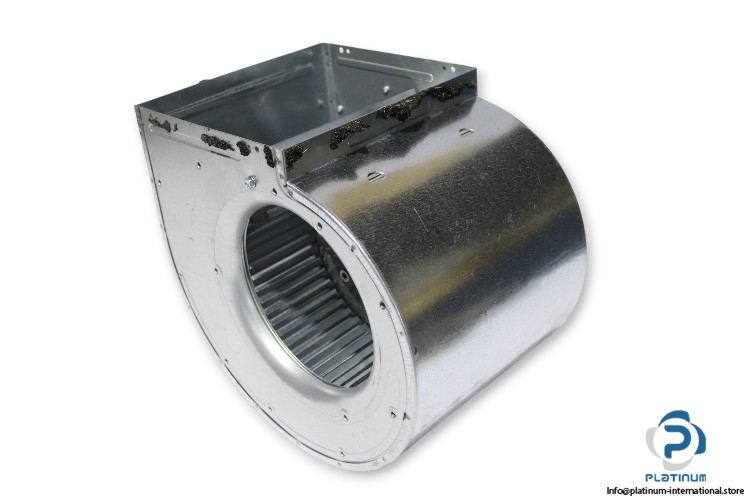

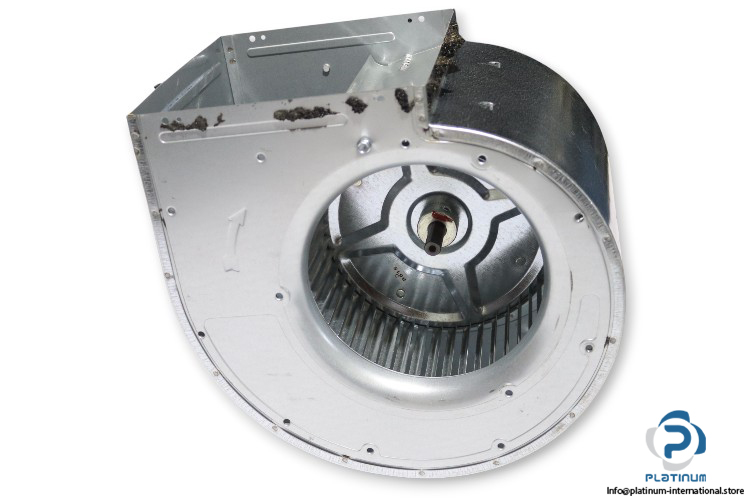

Dynair 1DA0070 Centrifugal FAN
Centrifugal Blower Fan
Dynair 1DA0070 single-phase centrifugal blower fan with 230 V supply, 72 W power, and 900 rpm speed. Durable metal housing, efficient air output, and reliable operation for industrial and ventilation systems.Dynair 1DA0070 Centrifugal Blower Fan
The Dynair 1DA0070 Centrifugal Blower Fan is a powerful and reliable ventilation solution engineered for continuous duty and efficient air movement in industrial and commercial environments. Designed for durability and consistent airflow, this fan combines a robust metal housing, high-quality motor, and capacitor system for stable operation under demanding conditions. Ideal for HVAC systems, machinery cooling, and air handling applications where efficiency, reliability, and performance are essential.

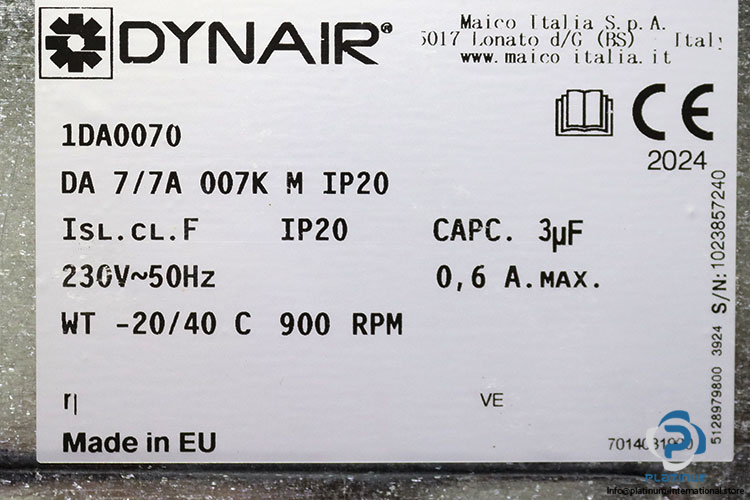

Manufacturer: Dynair
Type: Centrifugal Blower Fan
Model: 1DA0070
Code: DA 7/7A 007K M IP20
Serial No.: 1023857240
The Dynair 1DA0070 offers quiet operation, high reliability, and low maintenance requirements. Its durable metal construction and optimized aerodynamic design ensure high efficiency and long service life. This blower fan is ideal for use in ventilation systems, air ducts, workshops, laboratories, and industrial machines where stable airflow is critical.
| Voltage | 230 V AC |
| Power Rating | 72 W |
| Frequency | 50 Hz |
| Current | 0.6 A |
| Speed | 900 rpm |

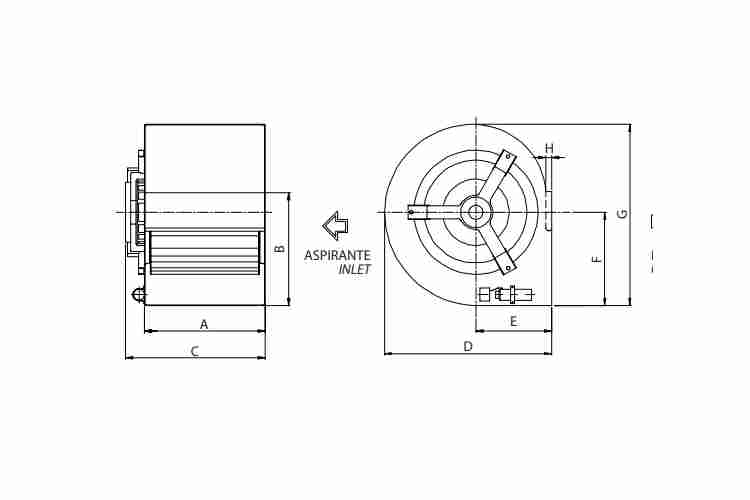

| Dimensions | 270 x 308 x 327 mm |
| Blade / Housing Material | Metal |
| Inverter | Without Inverter |
| Temperature Range | -20 to 40°C |
| Protection Degree | IP20 |
| Capacitor | 3 mF |
| No. of Poles | 6 |
| Certificate | ISL.Cl.F |

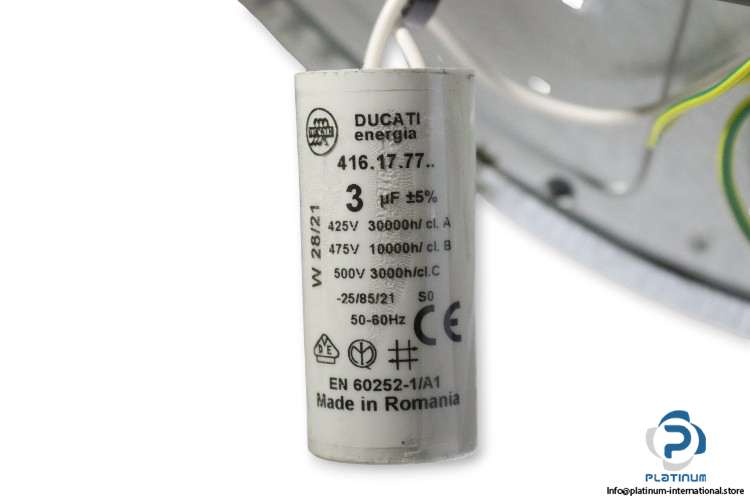

| Attachment 1 | Ducati Energia 416.17.17 Motor Run Capacitor |
| Code | W 28/21 |
| Rated Voltage | 425 V AC (30,000 hrs - Class A), 475 V AC (10,000 hrs - Class B), 500 V AC (3,000 hrs - Class C) |
| Frequency | 50“60 Hz |
| Standard | EN 60252-1/A1 |
| Capacitance | 3 mF |
| Climatic Category | 25/85/21 |
| Safety Certifications | VDE Approved |
| Duty | S0 (Continuous) |

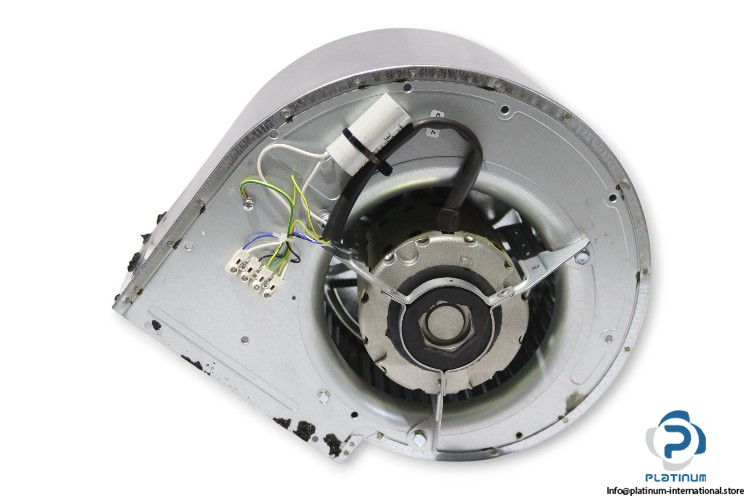

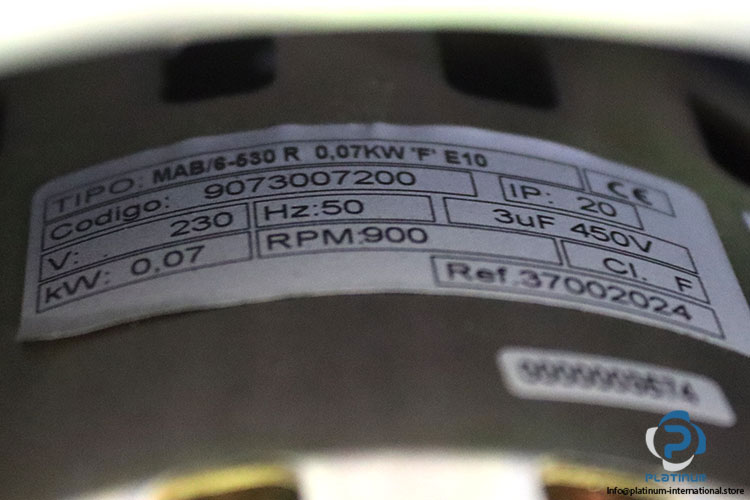

| Attachment 2 | MAB/6-530 R 0.07KW F E10 Asynchronous Single-Phase External Rotor Motor |
| Code | 9073007200 |
| Reference | 37002024 |
| Voltage | 230 V AC |
| Frequency | 50 Hz |
| Power | 0.07 kW |
| Speed | 900 rpm |
| Capacitor | 3 µF / 450 V AC |
| Insulation Class | F |
| Protection Class | IP20 |
| Rotation Direction | Clockwise |
