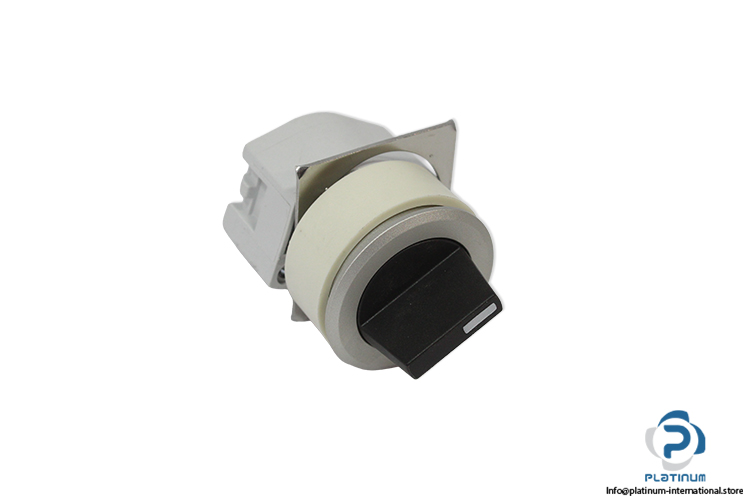

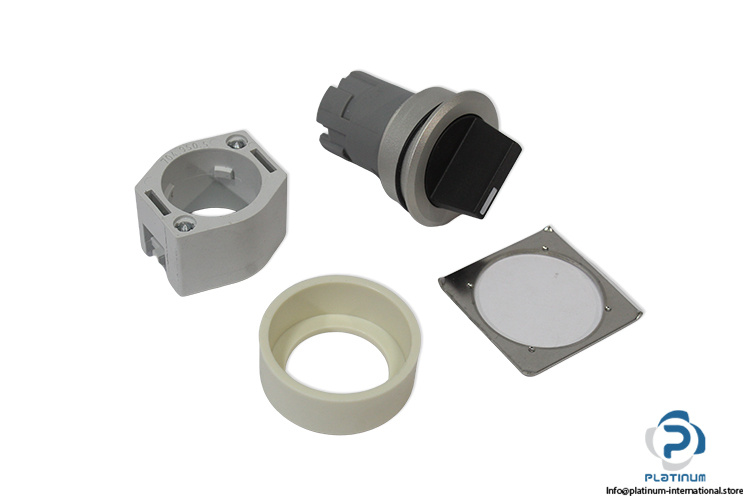

EAO 704.403.018 / P Actuator
Betätigung EAO 704.403.018 / P bedienfeldmontierte Betätigung mit flachem Design, 3 Schaltstellungen, 42° Schaltwinkel, IP65 Schutz und DIN EN 60947-1 Konformität.
EAO 704.403.018 / P Actuator
The EAO 704.403.018 / P is a high-quality industrial actuator designed for reliable panel mounting applications. With a flush mounting design and robust construction, it ensures dependable switching performance and long mechanical lifetime in demanding environments.
Manufacturer: EAO
Type: Actuator
Model: 704.403.018 / P
Front Dimensions
Front Dimension: Ø 35 mm
Front Form: Round
Front Bezel Colour: Nature
Front Bezel Material: Aluminium
Mounting
Design: Flush
Mounting Cut-Out: Ø 30.5 mm
Mounting Type: Panel Mounting
Operating / Indication Part
Lever Colour: Black
Lever Bar Colour: White
Lever Material: Plastic
Lever Shape: Short
Electrical Characteristics
Standards: The switches comply with the œStandards for low-voltage switching devices DIN EN 60947-1
Switching Action: Maintained – Rest – Maintained
Switching Positions: 3 Positions
Switching Angle: 42° Left / 42° Right
Mechanical Lifetime: ‰¤ 2.5 Mil. Cycles Of Operation
IP Protection: IP65 Front Side
Operating Temperature: “ 40 °C / + 55 °C
