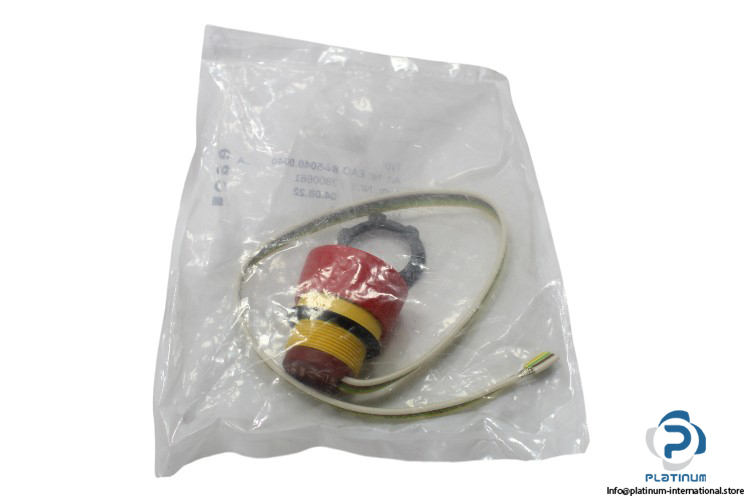

EAO 84-5040.0040 Emergency Stop Switch
Neu
Auf Anfrage verfügbar
Emergency Stop Switch
The EAO 84-5040.0040 emergency stop switch features a 32 mm round polyamide actuator with an IP65 rating, providing reliable safety control in harsh environments. Ideal for panel mounting with flat ribbon cable termination.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
EAO 84-5040.0040 “ Emergency Stop Switch
The EAO 84-5040.0040 emergency stop switch is designed for reliable safety control in industrial and commercial applications. Featuring a round polyamide actuator and an IP65 rating, this switch provides excellent protection against dust and water, ensuring safe operation in harsh environments.
Manufacturer: EAO
Type: Emergency Stop Switch
Art. No.: 84-5040.0040
Ref. No.: 3800661
Series: 84
| Current Rating | 3 A |
| Voltage Rating AC | 240 V AC |
| Voltage Rating DC | 250 V DC |
| Contact | 2 NC |
| Mounting Style | Panel Mount |
| Termination Style | Flat ribbon cable |
| Button Size | 32 mm |
| Panel Cutout | 22.3 mm |
| IP Rating | IP65 |
| Actuator Material | Polyamide (PA) |
| Actuator Style | Round |
| Length | 26 mm |
| Operating Temperature | -25 to 70 °C |
