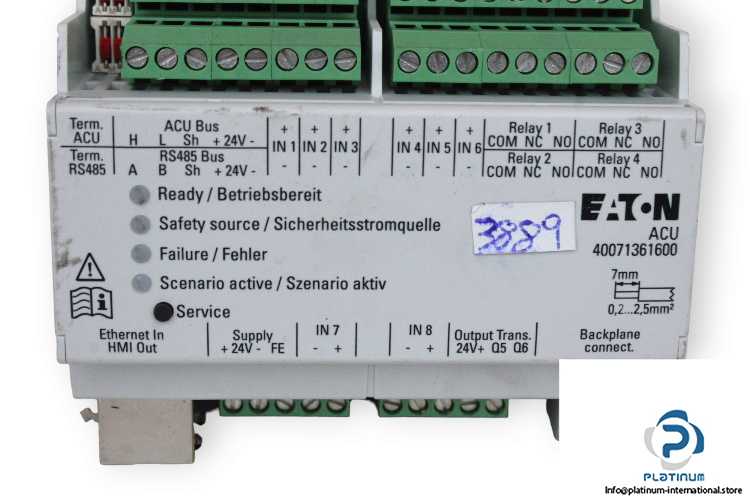

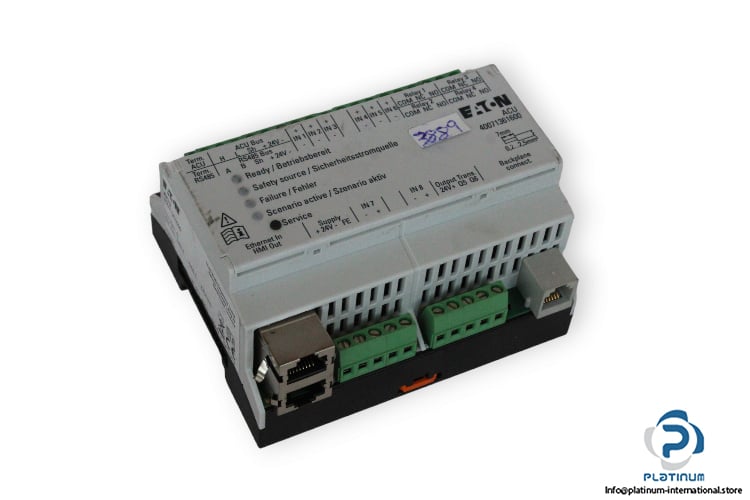

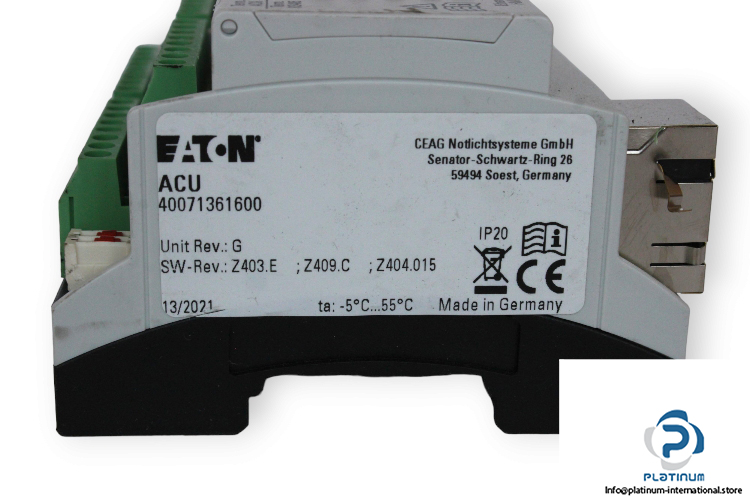

Eaton 40071361600 ACU DG-S Module

Manufacturer: EATON
Type: ACU DG-S module
Model: 40071361600

Degree of protection: IP20
Protection class: II
Ambient temperature range: -5°C – +55°C
Relative humidity: 10 – 95%, non-condensing
Max. pollution level: 2
Overvoltage category: II for battery circuit
Power consumption: 2 W
For supplying the SOU, 3-PM-IO, RCM, TLS.1 and LON Repeater
modules: 15 W
Rated voltage: 30V (SELV)
Rated current: 0.09A short-circuit-proof
Bus topology: Line
Cable type: such as IY(ST)Y 4x2x0.8 mm
Maximum cable length: 900 m
