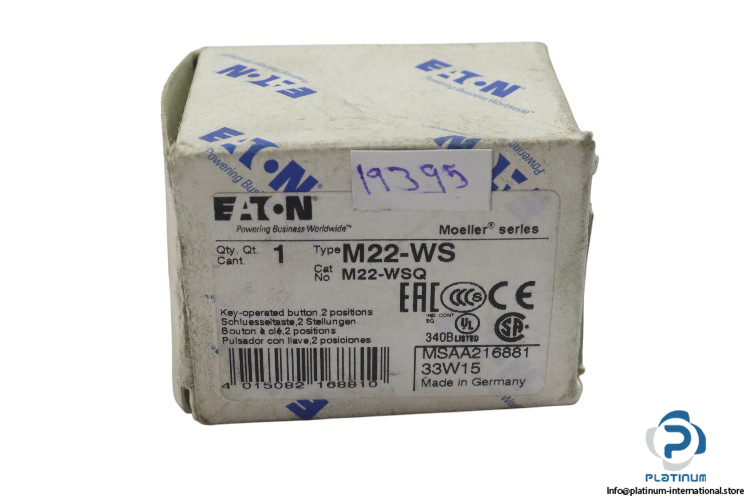

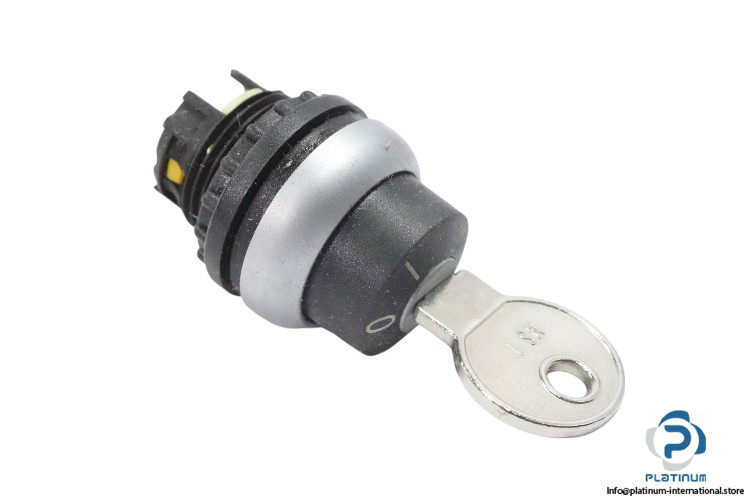

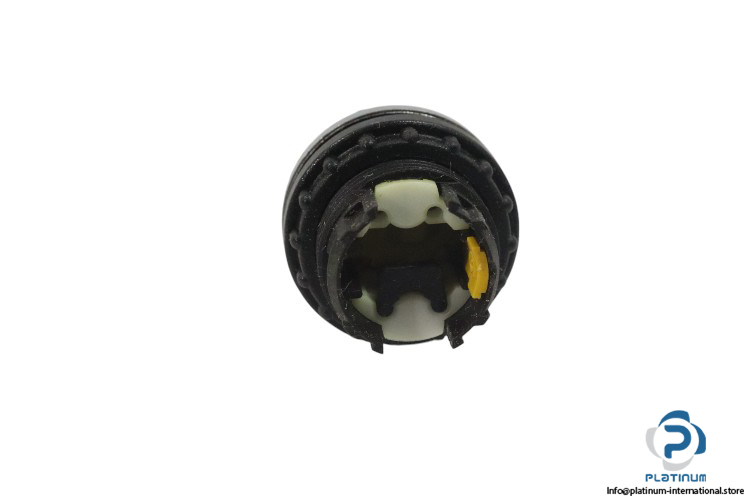

Eaton M22-WS KEY-Operated Actuator

Eaton M22-WS Key-Operated Actuator

The Eaton M22-WS is a durable and ergonomic key-operated actuator from the RMQ-Titan product range, engineered for use in control and signaling applications. Featuring a round black control element and a plastic front ring, this actuator is designed for reliability in demanding environments. With two switch positions and a standard 22.5 mm mounting hole diameter, it integrates seamlessly into control panels. The M22-WS offers a high protection rating of IP66, making it resistant to dust and water, and operates effectively in ambient temperatures ranging from -25°C to +70°C.

• Manufacturer: Eaton
• Type: Key-Operated Actuator
• Model: M22-WS

Technical Specifications:

• Product Range: RMQ-Titan
• Basic Function: Key-Operated Buttons
• Number of Switch Positions: 2
• Construction Type Lens: Round
• Color Control Element: Black
• Mounting Hole Diameter: 22.5 mm
• Material Front Ring: Plastic
• Degree of Protection: IP66
• Ambient Temperature: -25°C to +70°C
