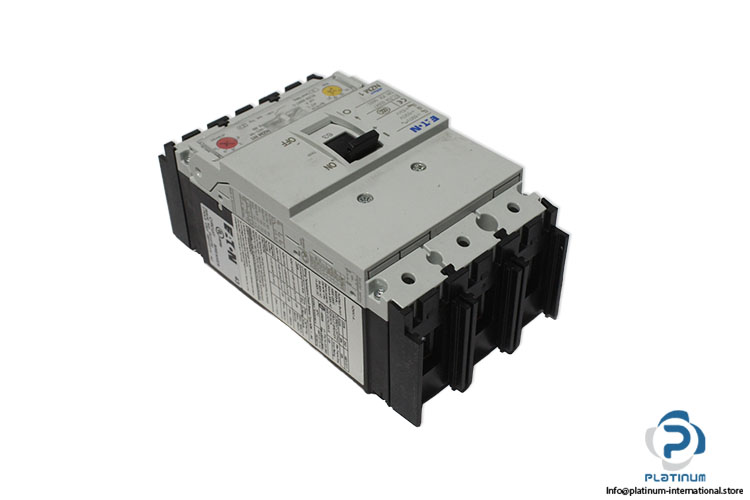

Eaton NZMN1-A63-NA Molded Case Circuit Breaker
Neu
Auf Lager1 EinheitVersandbereit
The EATON NZMN1-A63-NA is a 3-pole molded case circuit breaker (MCCB) with a thermomagnetic release, 63 A rated current, and 690 V operating voltage. Designed for industrial power distribution, it delivers reliable overload and short-circuit protection with high interrupting capacity.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 274240 |
| Series | NZM |
| Code | 0614 |
| Release system | Thermomagnetic release |
| Voltage rating | 690 V |
| Rated impulse withstand voltage | 6kV |
| Current | 63A |
| Rated short-circuit breaking capacity Ics | (at 400/415V: 50 kA), (at 440 V: 35 kA) |
| Rated short-circuit making capacity Icm | (at 400/415V: 105 kA),( at 440 V: 74 kA) |
| Short-circuit total breaktime | max. 10 ms |
| Frequency | (50/60) Hz |
| Number Of Poles | 3 |
| Handle type | Rocker lever |
| Utilization category | A (IEC/EN 60947-2) |
| Mounting Method | Fixed DIN rail (top hat rail) mounting optional Built-in device fixed built-in technique |
| Standard terminals | Box terminal |
| Degree of protection | IP20 |
| Ambient operating temperature | -25 to 70 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093426 |
| Weight | 1,11 |
