Eaton PLZ4-C16/1N-MW Miniature Circuit Breaker

Name: EATON PLZ4-C16/1N-MW MINIATURE CIRCUIT BREAKER
SKU: 1084322
Availability: LimitedAvailability

eaton-plz4-c16-1n-mw-miniature-circuit-breaker(new)

eaton-plz4-c16-1n-mw-miniature-circuit-breaker(new)-1

eaton-plz4-c16-1n-mw-miniature-circuit-breaker(new)-2

Neu

Auf Lager1 EinheitVersandbereit

Miniature Circuit Breaker

A compact and reliable MCB designed to provide safe and efficient circuit protection, offering high breaking capacity and compliance with international standards for modern electrical installations.

Hersteller

EATON

SKU

1084322

Kategorie

Circuit Breakers

Zustand

Neu

1+N Breaker Circuit Components Device Eaton Electrical Industrial MCB Miniature Moeller PLZ4-C16/1N-MW Pole Protection Series xPole

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

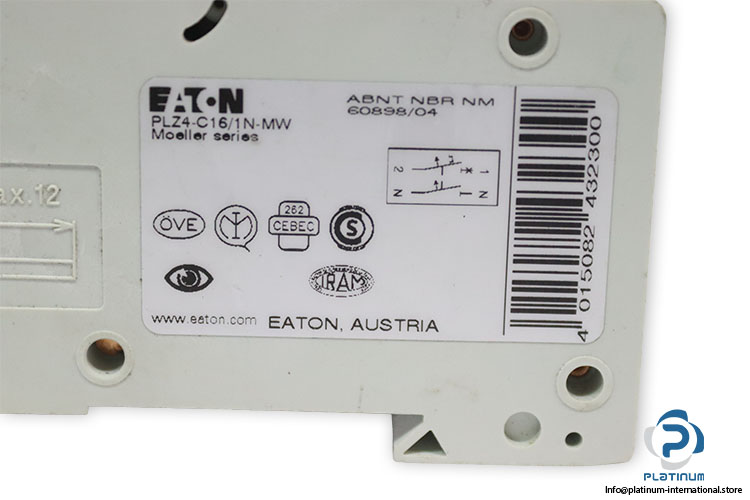

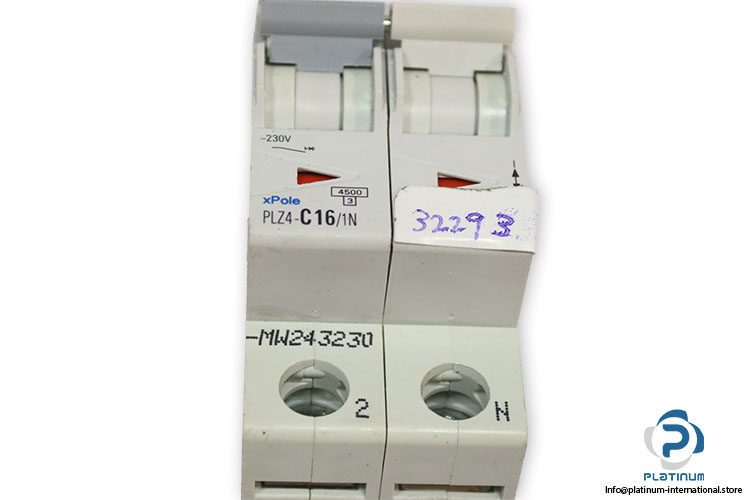

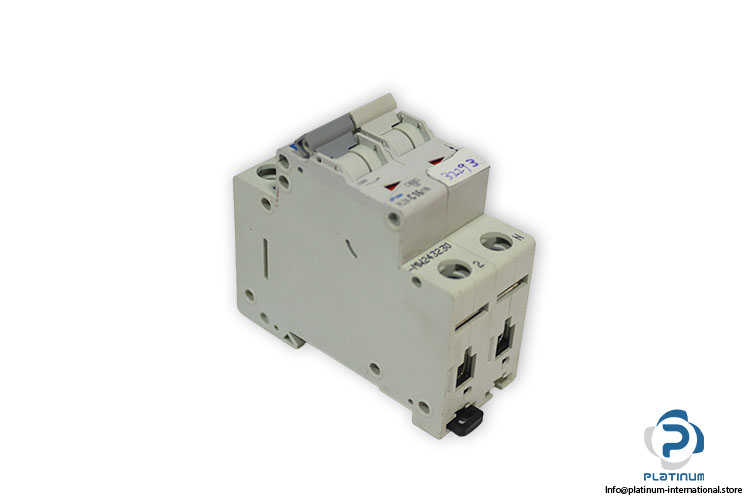

Eaton Moeller PLZ4-C16/1N-MW Miniature Circuit Breaker

A high-quality miniature circuit breaker designed for reliable protection of electrical circuits in residential, commercial, and industrial installations. Engineered for safety, efficiency, and long-term operational stability. Manufacturer: EATON MOELLER

Type: Miniature Circuit Breaker

Model: PLZ4-C16/1N-MW

MNR: PLZ4-C16/1N-MW 243230

ID No.: 243230

Code: ABNT NBR NM 60898/04

SN: 4015082432300

Series: xPole

Poles	1+N-pole
Standard	IEC/EN 60898-1
Rated Voltage Un AC	230 V
Rated Frequency	50/60 Hz
Rated Breaking Capacity	4.5 kA (IEC/EN)
Characteristics	B, C, D
Back-up Fuse	PLZ4 max. 80 A gL
Selectivity Class	3
Frame Size	45 mm
Device Height	80 mm
Mounting	Quick fastening with 3 lock-in positions on DIN rail IEC/EN 60715
Degree of Protection	IP20
Terminals	Upper and lower open mouthed/lift terminals
Terminal Protection	Finger and hand touch safe (DGUV VS3, EN 50274)
