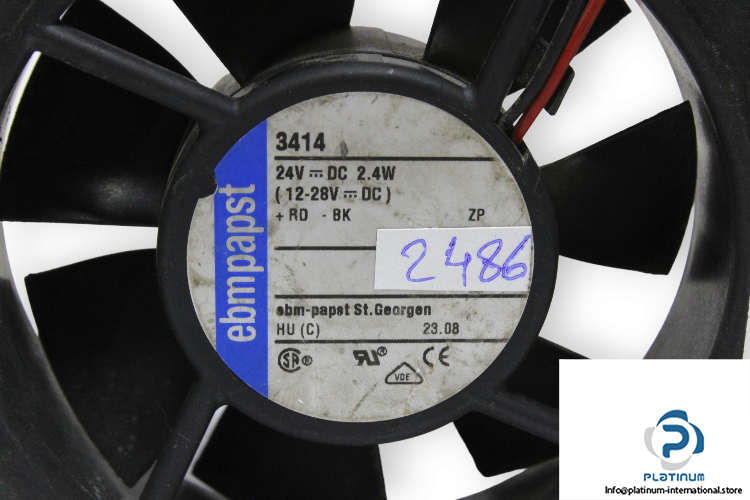

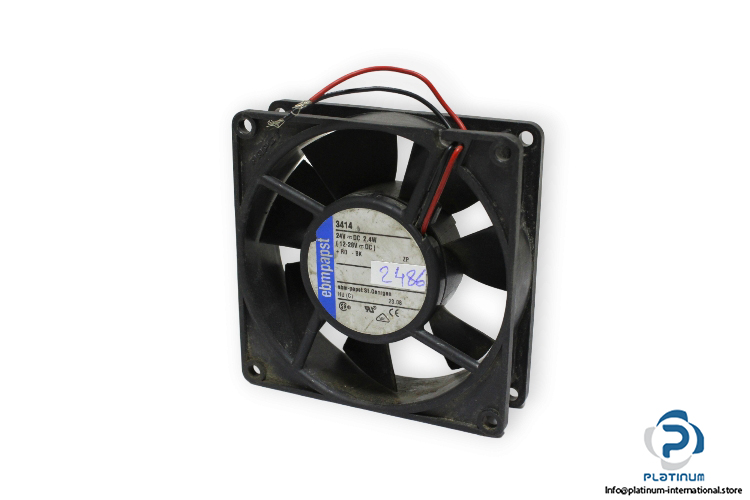

Ebmpapst 3414 Axial Compact FAN

Manufacturer: Ebmpapst
Type: Axial Compact Fan
Part No.: 3414

Nominal voltage: 24 V DC (12 … 28 V DC)
Speed: 2700 in min-1
Power input: 2,4 W
Air flow: 82 m³/h
Housing material: Glass-fiber reinforced PBT plastic
Direction of rotation: Counterclockwise, viewed toward rotor
Bearing: Ball bearing
Motor protection: Protection against reverse polarity and blocked rotor
Cable: Leads AWG 24, TR 64, stripped and tin-plated
Ambient temperature: -20 … 70°C
Dimensions: 92 x 92 x 25 mm
