Ebmpapst 8550 N AC Axial Compact FAN
25,00$
Axiallüfter Ebm-papst 8550N Axial-Kühllüfter mit 230 V AC Betrieb, 2700 U/min Geschwindigkeit und 50 m³/h Luftstrom, entwickelt für zuverlässige Belüftung in Industrie- und elektronischen Systemen. Ideal für Schaltschänke, Leistungselektronik und kompakte Kühlanwendungen.

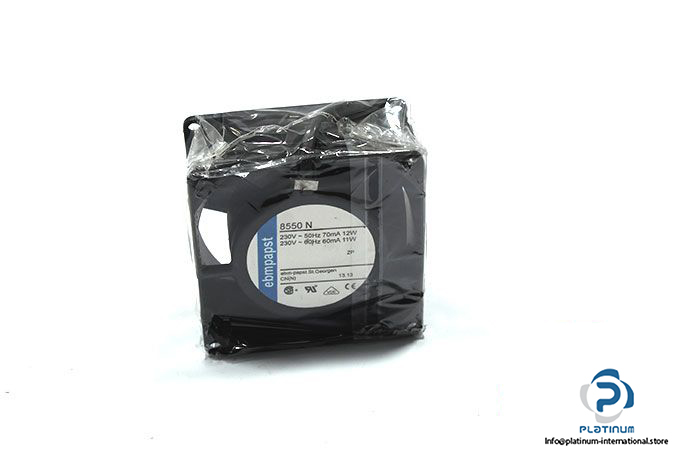

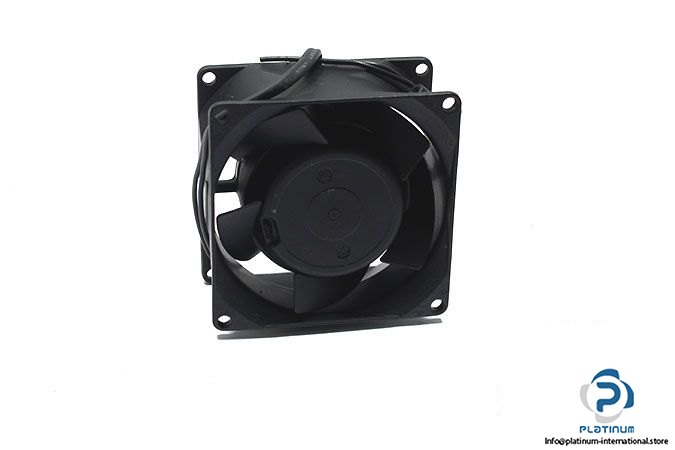

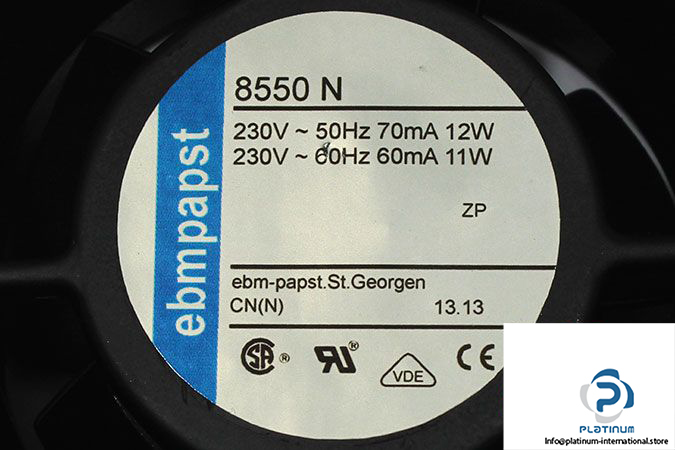

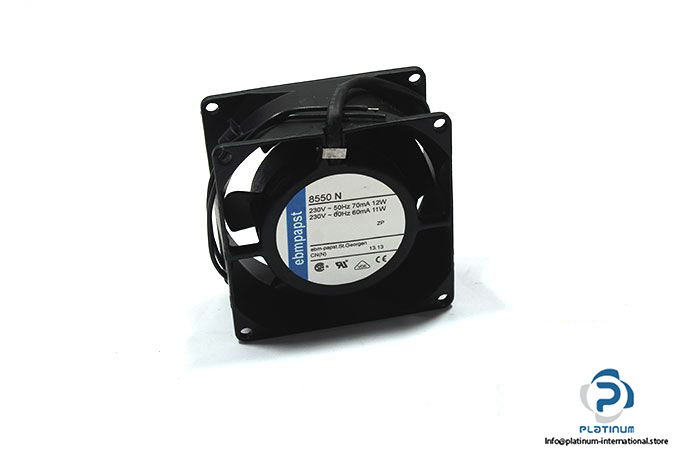

Ebm-papst 8550N Axial Fan
The Ebm-papst 8550N axial fan is engineered for efficient airflow and dependable cooling in industrial and electronic equipment. Its compact square frame and durable construction provide reliable ventilation performance in demanding environments.
Manufacturer: Ebm-papst
Type: Axial Fan
Model: 8550N
Code: ZP
Recommended for cooling control cabinets, electronic equipment, power supplies, and industrial ventilation systems.
| Frame Shape | Square |
| Voltage | 230 V AC |
| Frequency | 50 / 60 Hz |
| Current | 70 / 60 mA (0.07 / 0.06 A) |
| Rating Power | 12 / 11 W |
| Speed | 2700 rpm |
| Flow Rate | 50 m³/h |
| Number of Blades | 5 |
| Inverter | Without Inverter |
| Number of Wires | 2 |
| Direction | Push |
| Sound Power Level | 4.4 |
| Sound Pressure Level | 30 dB(A) |
| Impeller Material | Sheet Steel, Painted Black |
| Housing Material | Die-Cast Aluminum |
| Airflow Direction | Exhaust Over Struts |
| Service Life L10 at 40°C | 52500 h |
| Service Life L10 at Maximum Temperature | 25000 h |
| Dimensions | 80 x 80 x 38 mm |
| Ambient Temperature | -10 to 70°C |
