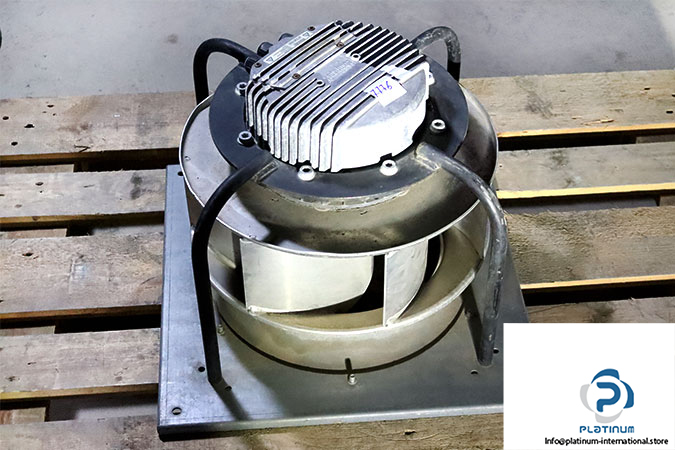

Ebmpapst K3G400-AS12-03 EC Centrifugal FAN

Manufacturer: EBMPAPST
Type: EC Centrifugal Fan

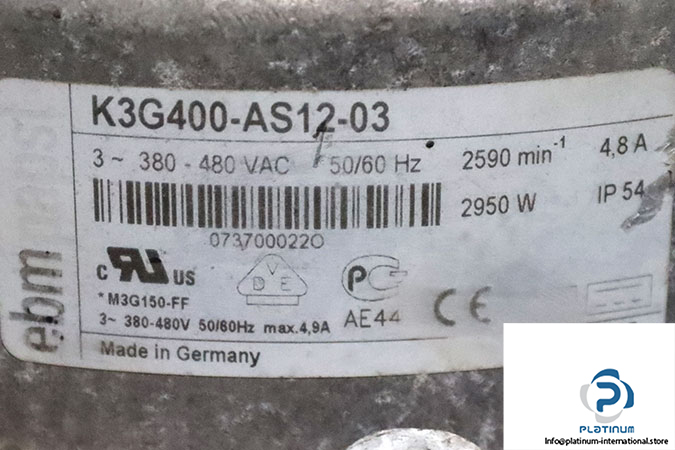

Model: K3G400AS1203

Frequency: 50 … 60 Hz
Size: 400 mm
Air Flow (q_v): 5960 m³/h
Rated Voltage: 3-Phase, 380 – 480 V AC
Rated Current: 4.8 A
Rated Power: 2950 W
Rated Speed: 2590 min^-1
Surface of Rotor: Sheet Steel (Enameled In Black)
Material of Impeller: Aluminum Sheet
No. of Blades: 7
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -25 … 50 °C
Diameter (Outer x Motor x Depth) : 404 x 235 x 182 mm
