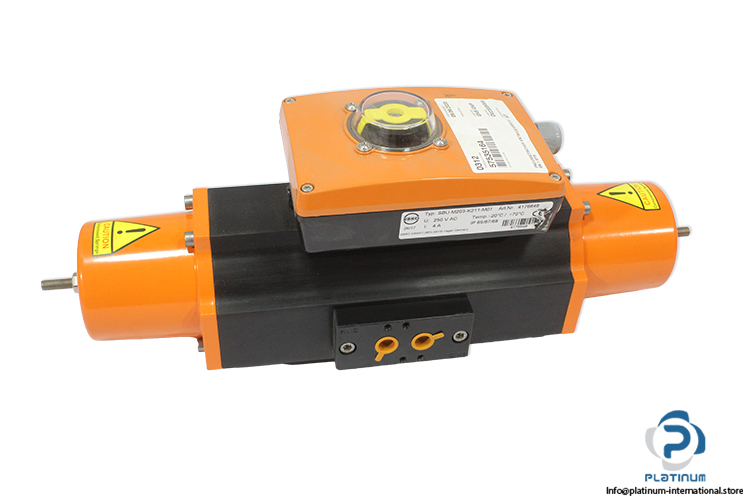

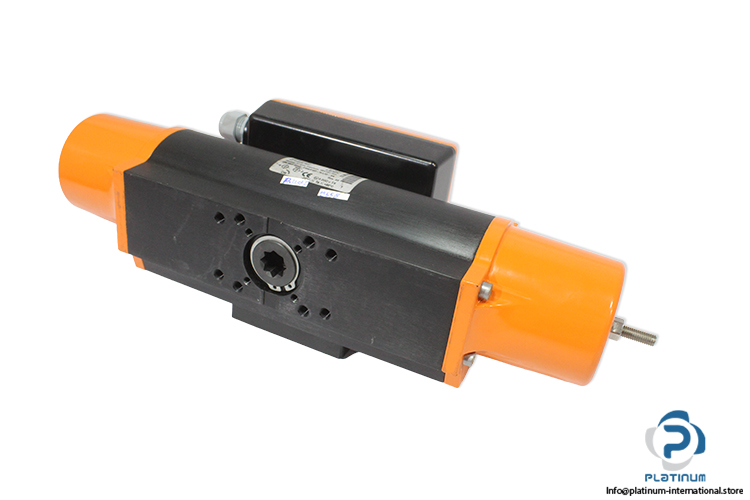

Ebro Armaturen EB8.1 SYS 60 Pneumatic Actuator
Neu
Auf Lager3 EinheitenVersandbereit
Pneumatic Actuator Double-acting Ebro Armaturen pneumatic actuator with 90° rotation, anodized aluminum housing, and attached switch box for industrial valve automation and position monitoring.
6090ActingActuatorAluminumArmaturenBoxDegreeDoubleEB8.1EbroInduPneumaticPositionQuarterSBU-M203-K211-M01SpdtSwitchsysTurnValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

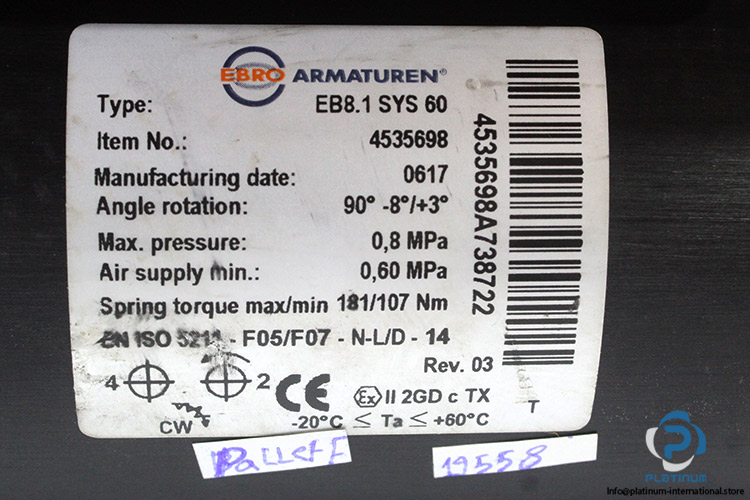

| Part No. | 4535698 |
| Ref. No. | 4535698A738722 |
| Rev. | 03 |
| Fluid | Air |
| Operating Pressure Max. | 0,8 MPa |
| Air Supply Min. | 0,60 MPa |
| Type of Action | Double Acting |
| Degree of Rotation | 90° |
| Material | Anodized Aluminum |
| Port Size | G1/4 & 7 mm |

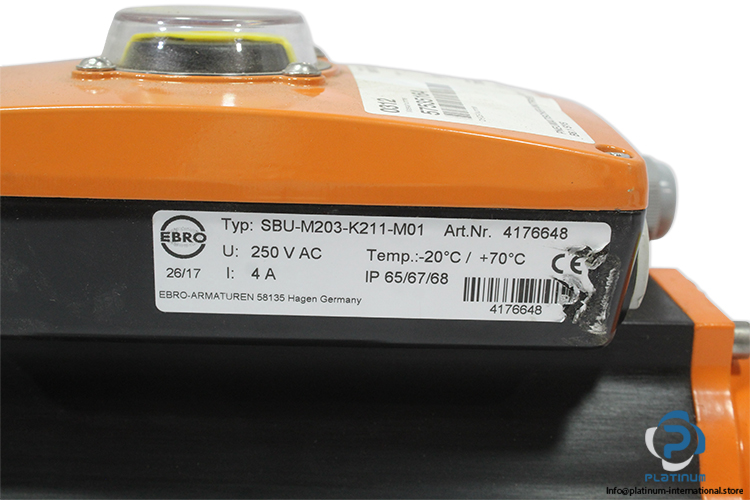

| Attachment | EBRO ARMATUREN SBU-M203-K211-M01 SWITCH BOX |
| Switch Box Manufacturer | EBRO ARMATUREN |
| Attachment Type | Switch Box |
| Switch Box Model | SBU-M203-K211-M01 |
| Switch Box Art. No. | 4176648 |
| Switch Box Switching Output | SPDT |
| Switch Box Switching Voltage | 250 V AC |
| Switch Box Switching Current | 4 A |
| Switch Box Material | Aluminum |
| Switch Box Protection Class | IP65/67/68 |
| Switch Box Temperature | -20 … 70 °C |
| Condition | New |
| SKU | 1092737 |
| Weight | 6,94 |
