Ecolab Elados EMP III Diaphragm Pump
Dreiphasen-Membranpumpe Ecolab Engineering ELADOS EMP III Membranpumpe mit 380 V Betrieb, 5 l/h Kapazität und maximalem Druck von 40 bar für genaue industrielle Dosieranwendungen. Ideal für chemische Dosierung, Wasseraufbereitung und präzise Flüssigkeitssteuerungssysteme.

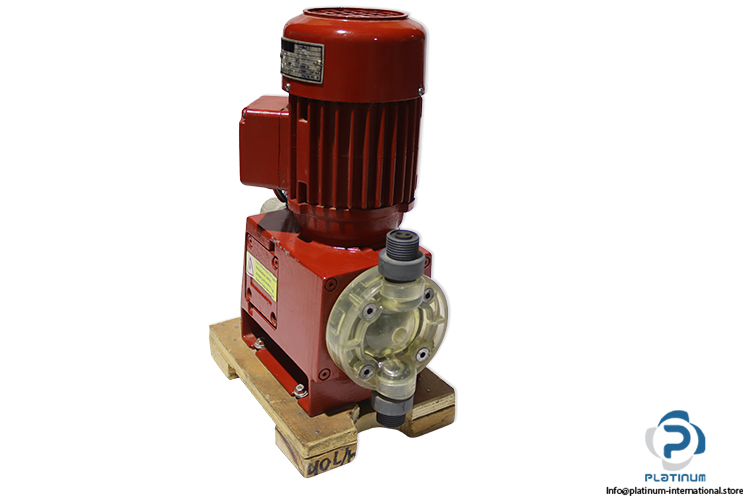

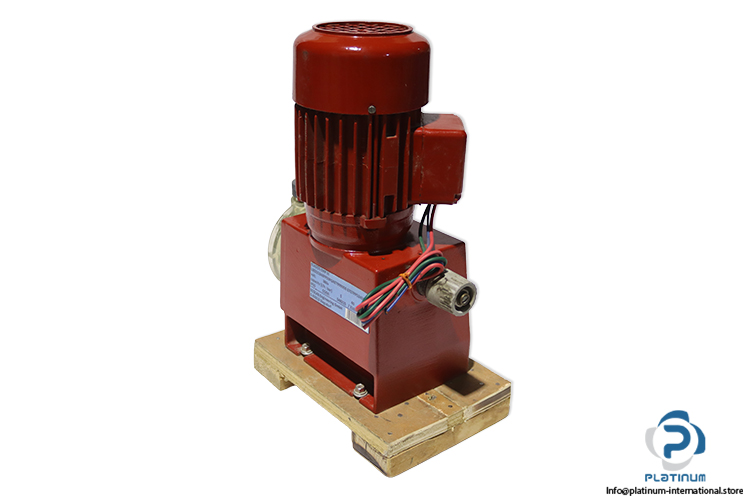

Ecolab Engineering ELADOS EMP III Three-Phase Diaphragm Pump
The ELADOS EMP III is a precision three-phase diaphragm pump designed for controlled chemical dosing and industrial fluid transfer applications requiring accuracy and pressure stability.
Manufacturer: Ecolab Engineering
Type: Three-phase Diaphragm Pump
Model: ELADOS EMP III

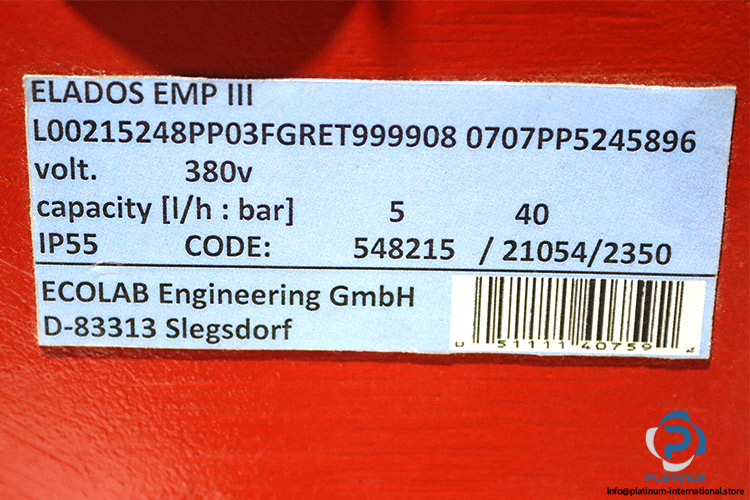

Full Code: L00215248PP03FGRET999908 0707PP5245896
Additional Code: 548215 / 21054 / 2350
Serial / Nr.: R 701074 / 204
Pump Data:
Electrical Motor Data:
Recommended for chemical dosing systems, water treatment installations, and industrial processing lines requiring precise metering performance.
Please contact us via Ask for assistance with any inquiries.
| Operating Voltage | 380 V |
| Capacity | 5 l/h |
| Maximum Pressure | 40 bar |

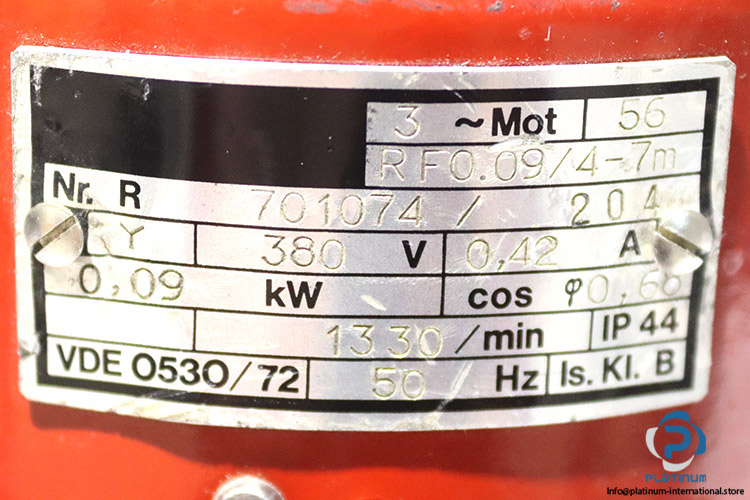

| Motor Type | 3~ Mot (Three Phase Motor) |
| Motor Version | RF0.09/4-7m |
| Rated Voltage | 380 V |
| Rated Current | 0.42 A |
| Rated Power | 0.09 kW |
| Power Factor (cos φ) | 0.60 |
| Speed | 1330 r/min |
| Frequency | 50 Hz |
| Protection Class (Motor Plate) | IP44 |
| Insulation Class | B |
| Standard | VDE 0530/72 |
