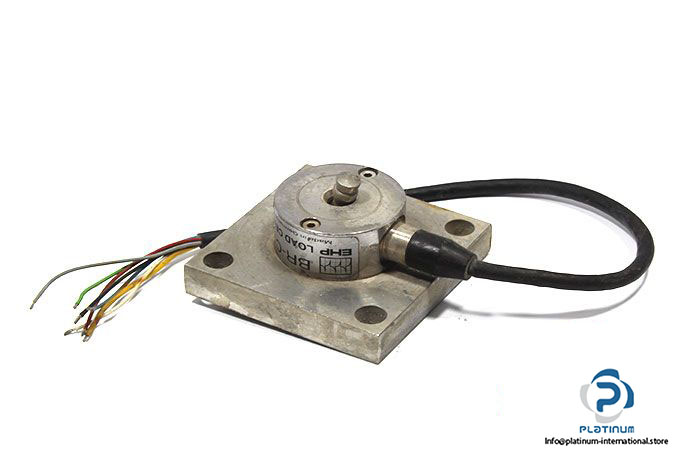

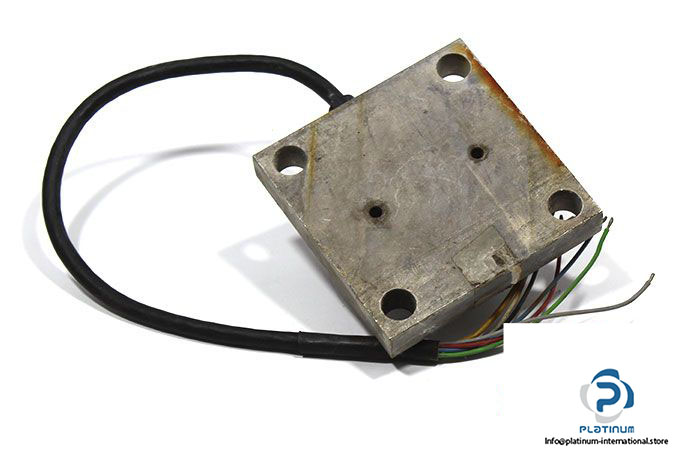

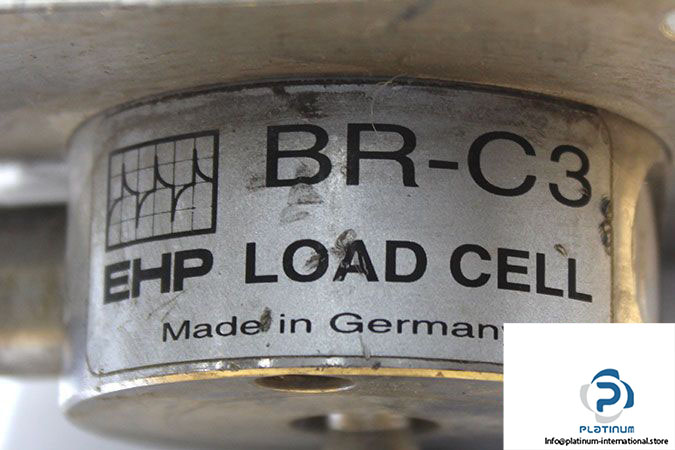

Name: EHP BR-C3 MAX 500 KG COMPRESSION LOAD CELL
SKU: 973352
Availability: LimitedAvailability

Manufacturer: EHP

Type: Compression Load Cell

Model: BR-C3

Maximum weight limit (E max): 500 kg (0.5 t)

Rated Sensitivity: 2 mV/V

Max. Voltage Supply: 30 V DC

Input Resistance: 1160 ± 60 Ω

Output Resistance: 1015 ± 65 Ω

Normal Temperature: -10…40 °C

Class: C3

Protection Class: IP68

Weight: 1.140 kg

Spezifikation	Wert
Condition	Used
Shelf No.	201001
Type of Product	Compression Load Cell

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Load Cells
Zustand	Gebraucht
SKU	973352

Condition	Used
Shelf No.	201001
Type of Product	Compression Load Cell

EHP BR-C3 MAX 500 KG Compression Load Cell
