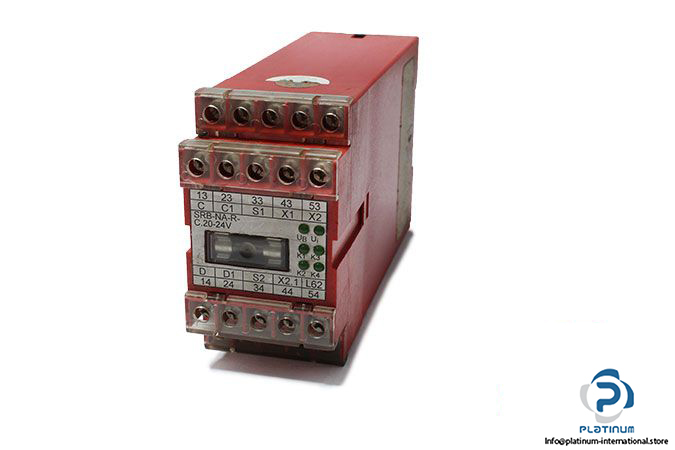

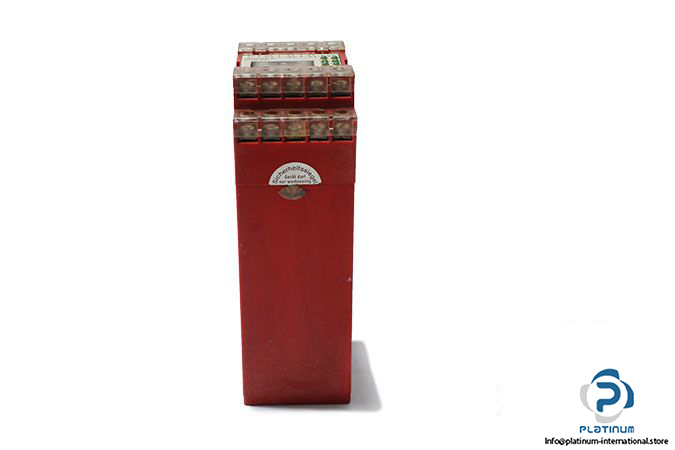

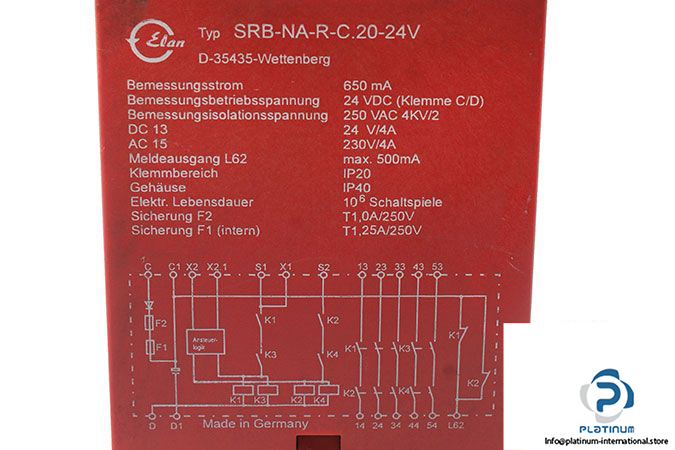

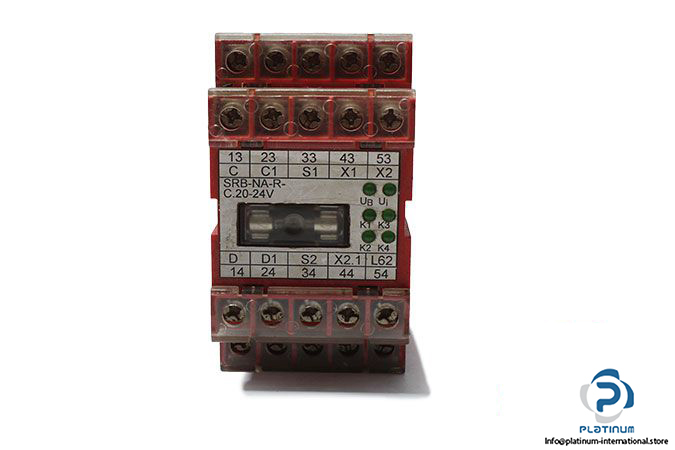

Elan SRB-NA-R-C.20-24V Safety Relay

Manufacturer: ELAN

Type: Safety Relay

Model: SRB-NA-R-C.20-24V

Rated Voltage: 24 VDC

Rated Current: 650 mA

Frequency: 50/60 Hz

Fuse (Power Supply): T 1.0 A/250 V

Power Consumption: max. 3 VA

Switching Capacity (Enabling Contacts): 230 VAC, 4 A resistive

Protection Class: IP20 / IP40

Ambient Operating Temperature: -25 … +45 °C

Dimensions: 45 X 140 X 83 mm

Weight: 0.39 Kg
