Elap E41S-2048-8/24-R6PPX154 Incremental Rotary Encoder
INCREMENTAL ROTARY ENCODER ELAP E41S-2048-8/24-R6PPX154 ist ein inkrementaler Drehgeber mit 2048 ppr und hohlem Wellenrotor, der präzises Feedback mit Push-Pull- und Open-Collector-Ausgängen bietet und für moderne industrielle Automatisierungssysteme geeignet ist.
ELAP E41S-2048-8/24-R6PPX154 INCREMENTAL ROTARY ENCODER

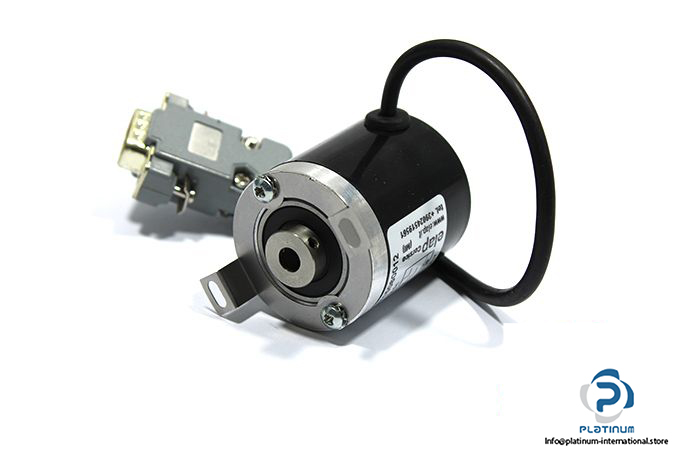

The ELAP E41S-2048-8/24-R6PPX154 is a high-resolution incremental rotary encoder from the reliable E40S family, designed for industrial applications requiring precision motion feedback. With a compact hollow shaft design and versatile electrical output, it is ideal for demanding automation and control systems.
Manufacturer: ELAP
Type: Incremental Rotary Encoder
Family: E40S

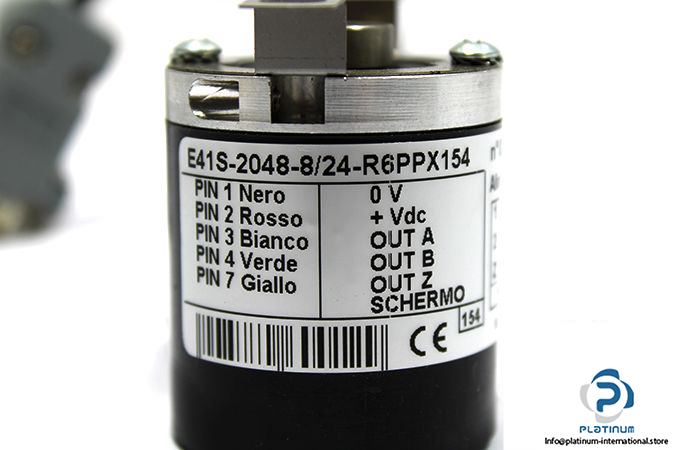

Model: E41S-2048-8/24-R6PPX154

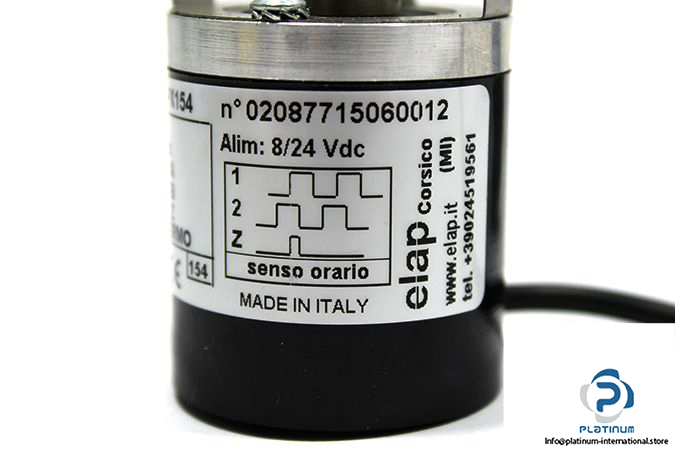

Part No.: 02087715060012

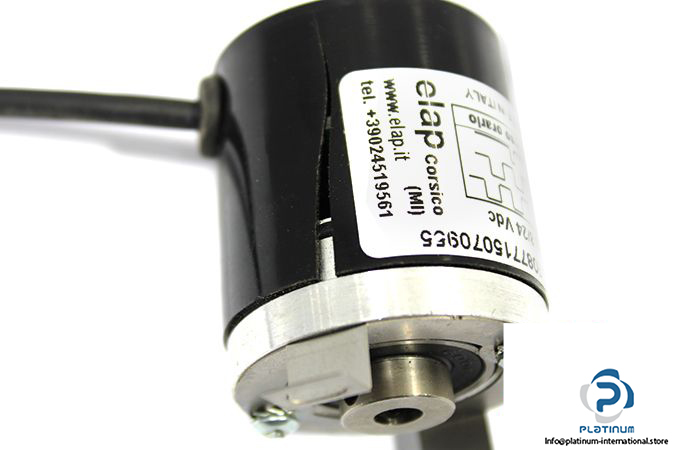

Shaft Type: Hollow Shaft
Shaft Size: 6 mm
| Pulses | 2048 ppr |
| Pulses/Resolution | 2 / 12500 |
| Zero Pulses | One pulse/revolution |
| Starting Torque | ‰¤ 0.2 Ncm |
| Power Supply | 8/24 V DC |
| Absorption | 40 mA max |
| Line Frequency | 40 mA max |
| Load Capacity | Max. 10N axial / 20N radial |
| Electric Output | Push-pull, NPN open collector, 5Vdc or 8/24Vdc line driver, short circuit protection |
| Operating Temperature | -10 ÷ 60°C |
