Elap PL2S 200 5K Linear Motion Potentiometer
290,00$
LINEAR MOTION POTENTIOMETER ELAP PL2S2005K ist ein Linearbewegungs-Potentiometer mit 200 mm Hub, 5 kΩ Widerstand und einem eloxierten Aluminiumgehäuse mit IP65-Schutzklasse, geeignet für hochpräzise industrielle Positionsmessungen.

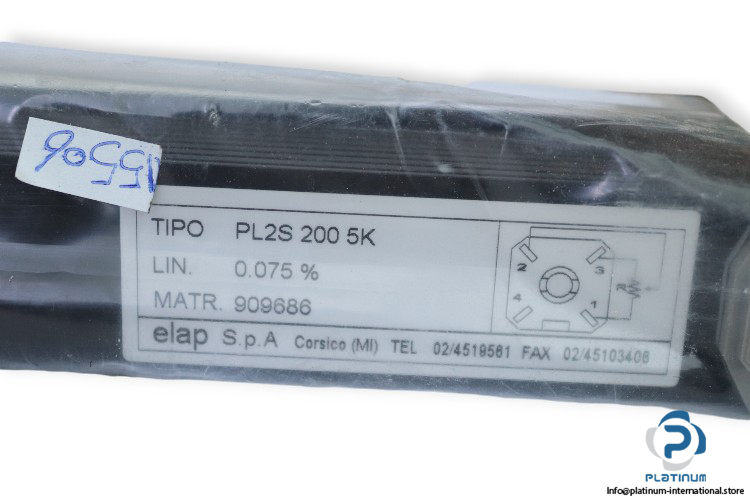

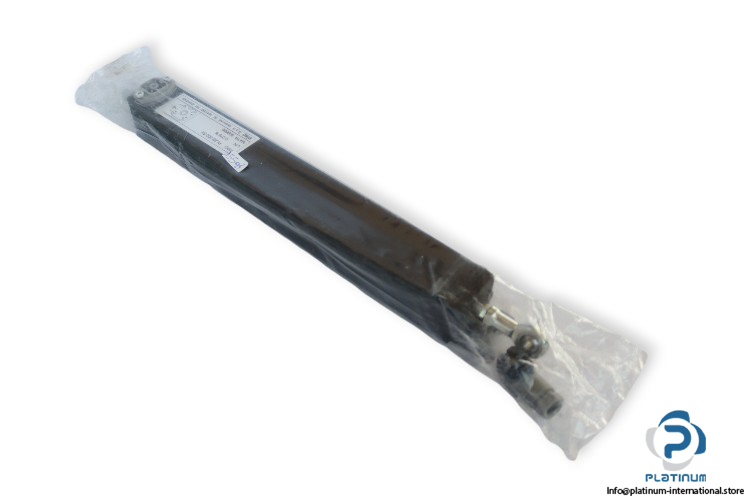

ELAP PL2S2005K LINEAR MOTION POTENTIOMETER
The ELAP PL2S2005K is a high-precision linear motion potentiometer engineered for accurate displacement measurement in industrial automation systems. With an anodized aluminium body and IP65 protection, it offers durability, infinite resolution, and optimal reliability under harsh conditions.
Manufacturer: ELAP
Type: Linear Motion Potentiometer
Model: PL2S2005K
Part No.: 909686

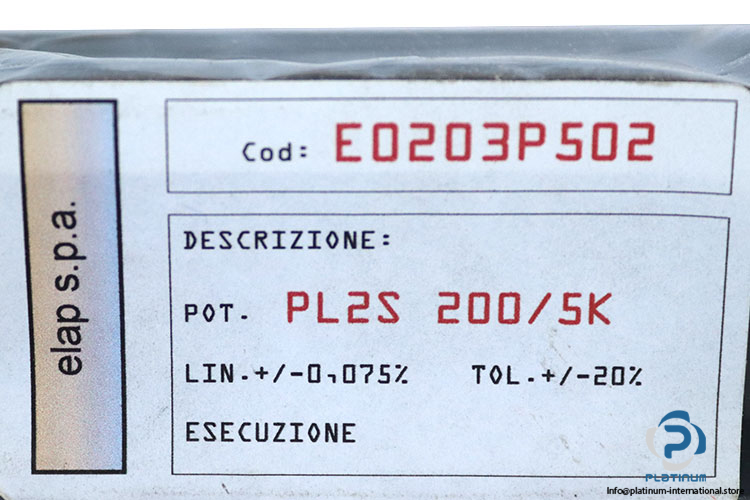

Code No.: E0203P502
Series: PL2S
| Independent Linearity | 0.075 mm |
| Useful Electrical Stroke Length | 200 mm |
| Rated Applicable Voltage Max. | 28 V DC |
| Resolution | Infinite |
| Resistance | 5 kΩ |
| Electrical Connection | Radial Connector, 4-Pin, 1 m |
| Material | Anodized Aluminium with Glass-Filled Nylon Flanges |
| Rod Diameter | 6 mm |
| Protection Class | IP65 |
| Temperature Range | -20 / 80 °C |
| Dimensions | 277 x 60 mm |
