Elap PM 100 5K MR Linear Potentiometer
Gebraucht
Auf Lager1 EinheitVersandbereit
111,11$
Linear-Potentiometer ELAP PM1005KMR ist ein präziser Linear-Potentiometer mit einem Kunststoff-Widerstandselement, einem elektrischen Bereich von 25 mm und IP64-Schutz. Ideal für genaue industrielle Positionsmessung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

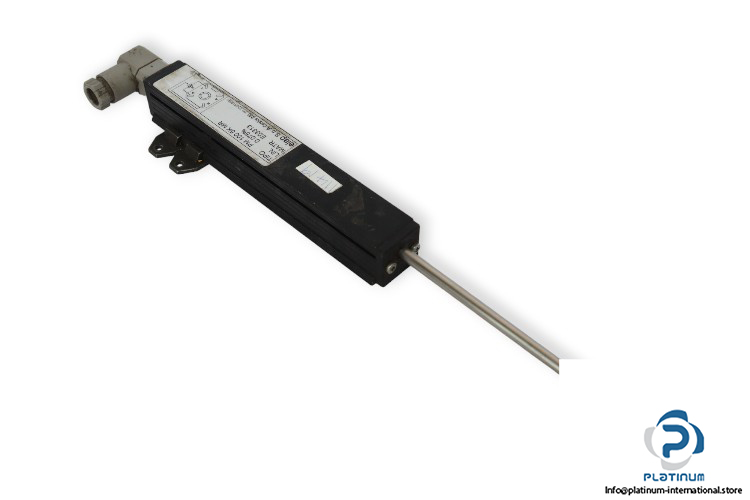

ELAP PM1005KMR LINEAR POTENTIOMETER
The ELAP PM1005KMR Linear Potentiometer is a high-precision sensor designed for accurate linear displacement measurement. Built with a durable plastic resistive element, this sensor delivers excellent linearity and long service life, making it ideal for industrial positioning and monitoring systems.
Manufacturer: ELAP
Type: Linear Potentiometer
Model: PM1005KMR

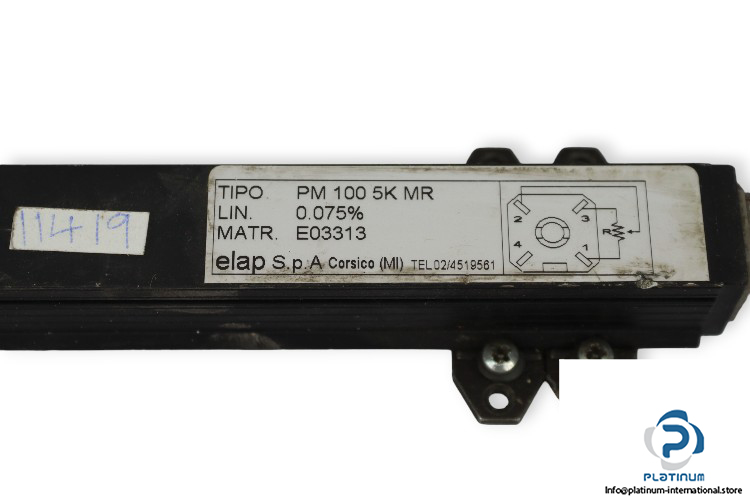

Material No.: E03313
| Sensor Conductive | Plastic Resistive Element |
| Overall Length | 25 / 100 mm |
| Linearity | 0.075 % |
| Defined Electrical Range | 25 mm |
| Permissible Applied Voltage | 28 V DC |
| Resistive Value | 5 KOhm |
| Electrical Connections | Axial Connector |
| Temperature Range | -20 / 80 °C |
| Protection Class | IP64 |
| Rod Diameter | 5 mm |
