Elau SB105/30/04/05/19/P/01/64/EOKN Servo Motor

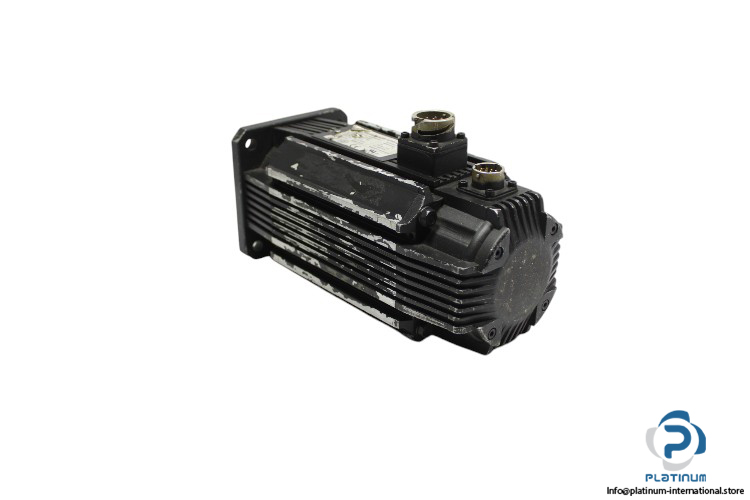

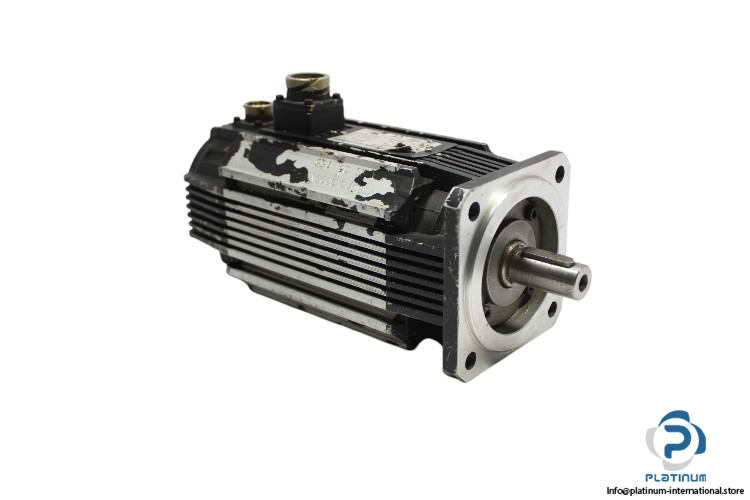

ELAU SERVO MOTOR

The ELAU Servo Motor (Model: SB105/30/04/05/19/P/01/64/EOKN, Art. Nr: 19192304-005) is designed for high-performance industrial applications, offering precise control and efficient operation. With a rated torque of 5.17 Nm, a stall torque of 5.6 Nm, and a nominal speed of 3000 rpm, this motor is built to deliver reliable performance in demanding environments. It features a protection class of IP64, ensuring durability and reliability in harsh conditions.

Manufacturer: ELAU

Type: Servo Motor

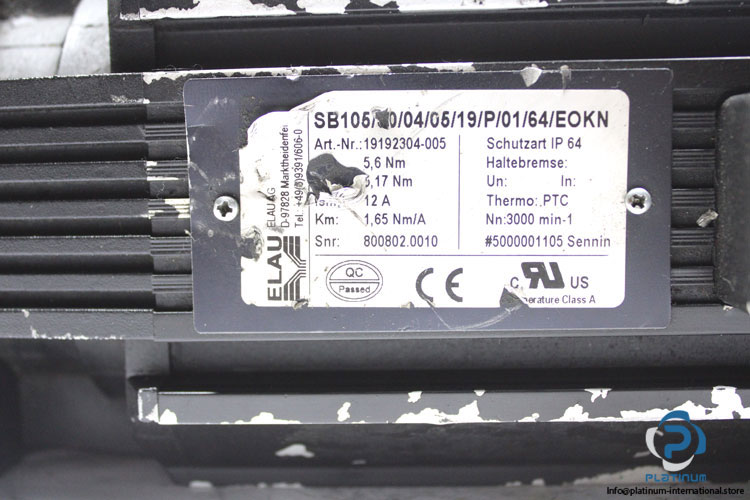

Model: SB105/30/04/05/19/P/01/64/EOKN

Art. Nr: 19192304-005

Technical Specifications

• Rated Torque: 5.17 Nm
• Stall Torque: 5.6 Nm
• Stall Current: 12.0 A
• Constant Torque: 1.65 Nm/A
• Nominal Speed: 3000 rpm
• Protection Class: IP64
