Elau SH070/60020/0/0/00/00/00/00/00 Servo Motor

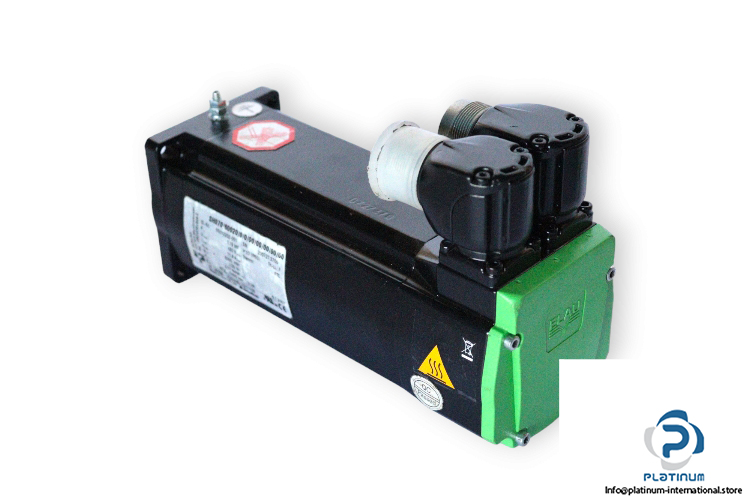

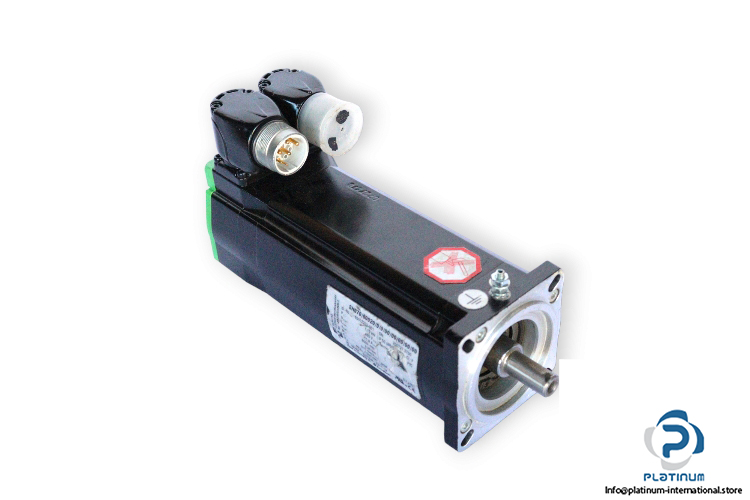

Elau / Schneider SH070 Servo Motor

The Elau / Schneider SH070 Servo Motor is designed for high-performance motion control applications, offering precise and efficient operation. With a rated power of 1.19 kW and a stall torque of 2.20 Nm, this motor delivers smooth and reliable performance in various industrial settings.

Manufacturer: Elau, Schneider

Type: Servo Motors

Model: SH070/60020/0/0/00/00/00/00/00

ID Number: 65012202-001

Serial Number: 200727.3700

Reference Numbers: E207686 / E211198

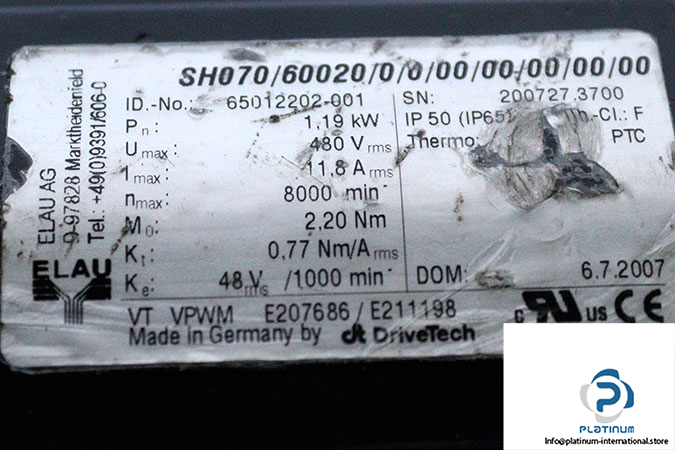

Technical Data:

• Rated Power: 1.19 kW
• Stall Torque: 2.20 Nm
• Max. Current: 11.8 A
• Max. Voltage: 480 V
• Max. Speed: 8000 rpm
• Torque Constant: 0.77 Nm/A
• Thermal Class: F
• Thermo Couple: PTC
• Voltage Constant: 48 V/min-1
• Protection Class: 50 (65 IP)
• Encoder Signal Form: Sine
• Encoder Supply Voltage: 7 / 12 V
• Encoder Supply Current: MAX 60 mA (without Load)
